Monoblock Full Automatic Water Bottling Machine 3-10L Bottle 3 In 1 8 Heads

Monoblock Full Automatic Water Bottling Machine 3-10L Bottle 3 In 1 8 Heads

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE & ISO & TUV & SGS
Model Number: CGF 8-8-3B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $13000-$15000/set
Packaging Details: Wooden Case
Delivery Time: 30 Working Days After Receiving Deposit Payment
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 10 Sets Per Months
Get Best Price Contact Now

Detail Information

Type: 3 In 1 Monoblock Bottle Size: 3-10L
Production: 1000BPH Processing: Japan & Germany
Material: SUS304/316 Application: Commercial
High Light:

water filling equipment


liquid filler machine

Product Description


Monoblock Water Bottling Machine 3-10L Bottle 3-in-1 Full Automatic 8 Heads


Product description:

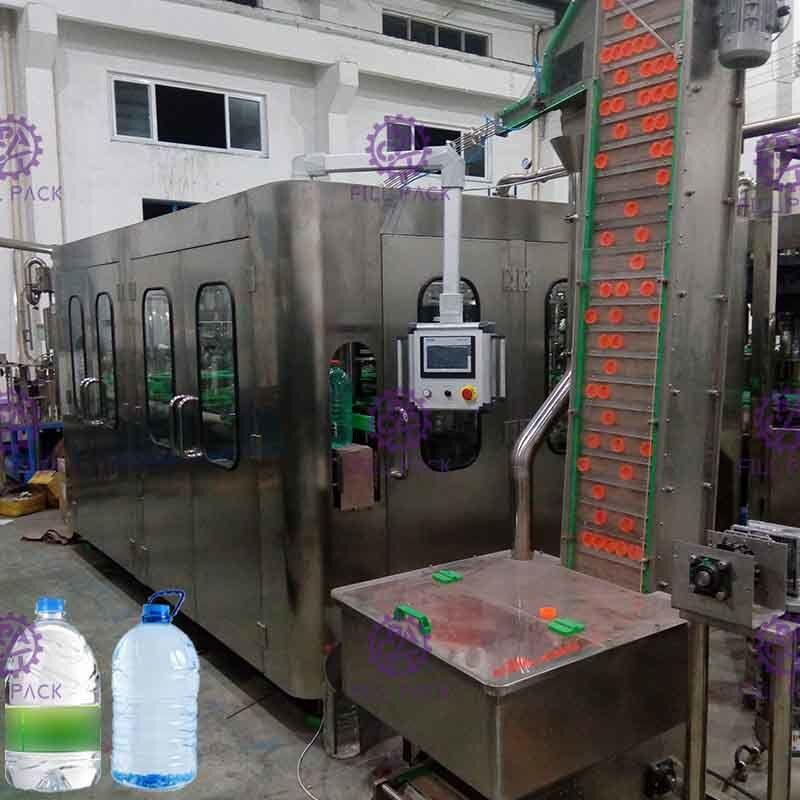

1.The big bottle filling plant is used in production of non-soda drink of hot juice and mineral water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

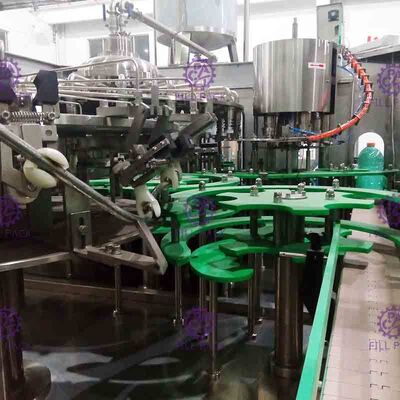

2.Using spring cramps  in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.


3.The filling by spring type liquid lever controlling filling valve, no dripping. The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve.


4.The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

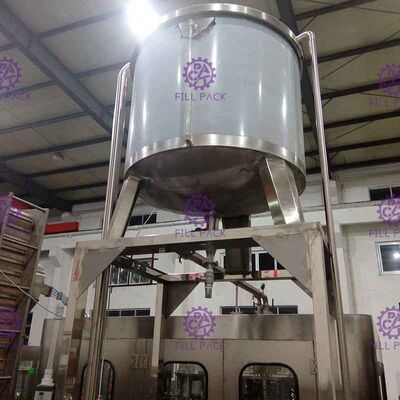

5.There is electrical heating cold-heat tank enclosed in the whole system especially for keeping hot filling temp during hot juice filling. And it can also be stopping heating by easy electrical break down for cold water filling. It do not need extra steam system to work together.


6.The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

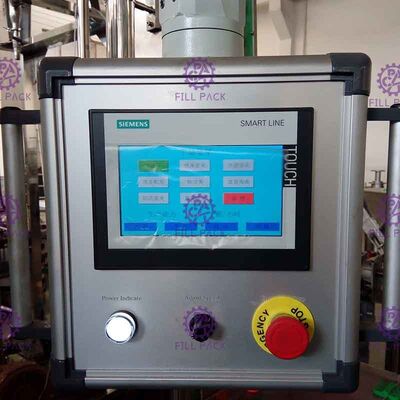

7.The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.


8.The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.




Model CGF8-8-3B
Capacity(B/H) 800-1000 BPH
Bottle size Neck:φ20-50mm;Height:150-320mm
Water pressure 0.18-0.25Mpa
Water consumption(kg/h) 1000
Washing station 2
Dripping station 2
Filling precision <+5MM
Air pressure 0.4Mpa
Air consumption (m³/min) 0.3
Power(kw) 4
Weight(kg) 2500



1.Why do you choose our factory?
There are many foreign guests cooperate with our company.We have enough experience and fund to provide you the high-quality products with the best price.

2.How long can you delivery?
About 30 days after we received the deposit(30%T/T in advance,70%T/T before shipment.)
3.How about your after-sale service?
One year repair for free Seller responsible for arrange engineer for installation and guide the workers of buyer how to operate and necessary repair,and give buyer a turnkey project.

4.How long can you finished the installation?
About 10-15 days.If the water and electricity is ready.If you have any questions,please do not hesitate to contact me.
