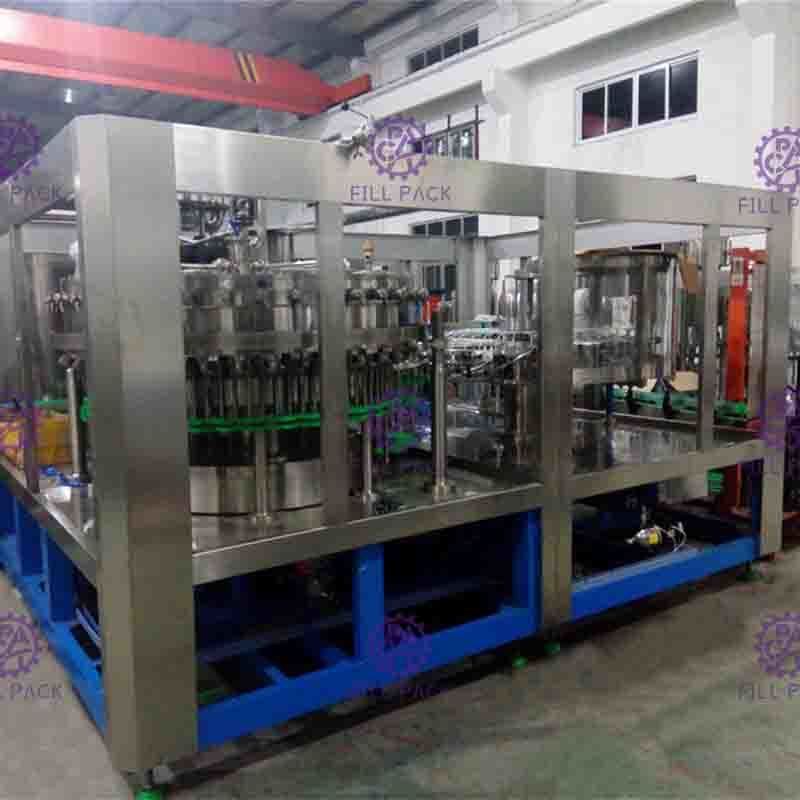

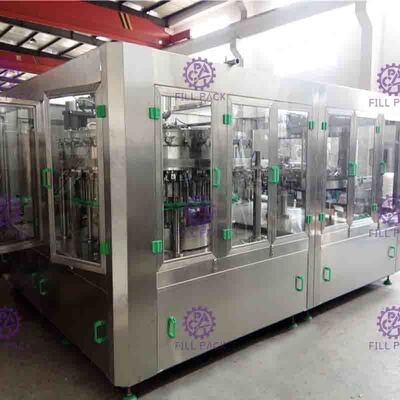

Carbonated Water Gas Soda Soft Drink Bottle Beverage Manufacturing Machine / Equipment / Line / Plant / System
Product Details:
Place of Origin: | China,JiangSu,Zhangjiagang |
Brand Name: | FILLPACK |
Certification: | CE & ISO & TUV & SGS |
Model Number: | DCGF40-40-12 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 20000-50000USD |
Packaging Details: | Wooden Case Package |
Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 20 sets/month |
Detail Information |
|||
Dimension(L*W*H): | 4000*2250*2500 Mm | Weight: | 7200KG |
---|---|---|---|
Power: | 7.5KW | Capacity: | 10000-15000BPH |
Suitable Bottle Size: | 0.3-2L PET Bottle | Control: | PLC Control With Touch Screen |
Filling Heads: | 40 Heads | Keywords: | Carbonated Water Filling Machine |
Filling Range: | 200-2000ml | Suitable Bottle Size: | H:170-320mm Diameter:50-100mm |
Highlight: | soft drink making machine,soda making machine |
Product Description

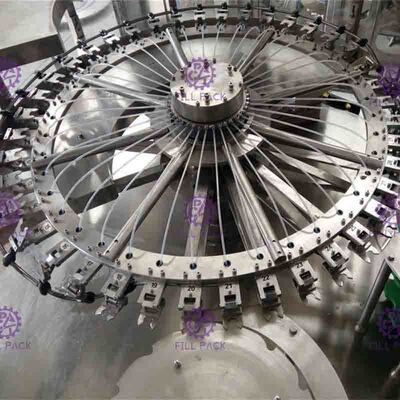

★1, The PET bottles are separated by screw and then entered into the bottle washing mechanism in turn. By clamping the bottle mouth, the bottles are reversed 180 degrees, so that the bottle mouth is down, spraying and washing the inside and outside of the bottle. The rinsing water used is pure water.

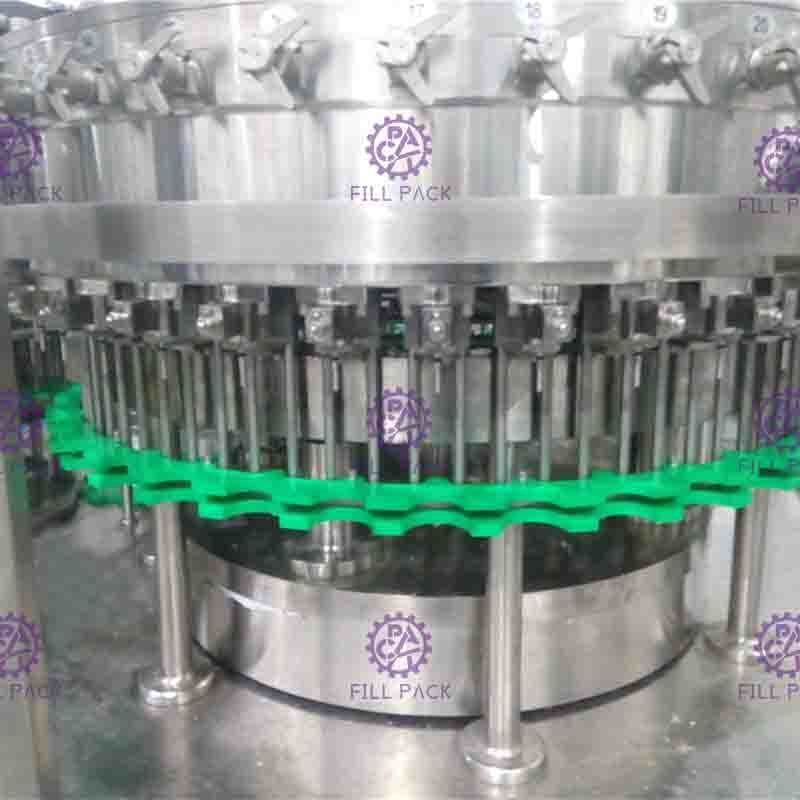

★2, Then it enters the balanced pressure filling mechanism. The bottle rises slowly with the lifting mechanism. After close contact with the sealing washer under the balance filling valve, the fork installed above the isobaric cylinder is activated. At this time, the gas inside the bottle begins to be filled.
★3, In the sealing part. The whole capping mechanism is cylindrical. It rotates 360 degrees according to the center of the spindle. The bottle is automatically capped, and then enters the capping mechanism.
>>>Our machine have so many characteristics:
★1, The system is simple: the integral table board is adopted, the structure is rigid, easy to wash and clean, easy to maintain, and the maintenance of the machine is more convenient and simple.
★2, Accurate alignment of bottles in filling process: unique filling with clamping mouth and pre-cover function of centering cover ensure accurate sealing between bottle mouth and filling valve mouth, eliminate le akage phenomenon, and really reduce the loss of finished materials.
★3, Accurate level control: the level in the filling cylinder is determined by the probe level meter, and the intake of the intake pipe is controlled automatically by the variable signal to ensure that the level in the cylinder is consistent throughout the filling process.
★4, Accurate speed regulation: Advanced motor frequency modulation control technology is used to make the speed regulation of the machine accurate and stable in start-up and production, and to display the filling speed digitally. The whole machine is controlled by PC program with high degree of automation.
★5, Structural hygiene: All parts in contact with beverages are made of high quality stainless steel, all liquid and gas pipes are polished inside and outside, and all seals in contact with beverages are made of nitrile rubber or silicone rubber for food, which meets the hygienic requirements.
★6, The structure of the capping machine is advanced: the capping head adopts magnetic capping, adjusts the required torque according to different caps, and is suitable for various types of plastic caps; the capping machine adopts tooth-shaped device, and the lower cap slideway is equipped with cap detection device to ensure that there is no back cap and no bottle without capping.
★7, Convenient and rapid change of bottle type: The quick-opening structure is adopted for the change parts, and the quick and convenient change of bottle type is suitable for PET bottles of various specifications.


Teachnical parameters of DCGF40-40-12
|
||||||
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
Filling pressure
|
≤0.4MPa
|
|||||
PET bottle specification
|
(Bottle diameter)50-115mm (Height)160-320mm
|
|||||
Suitable cap shape
|
Plastic or other material screw cap
|
|||||
Filling temperature
|
0℃—5℃
|
|||||
|
||||||
Our family of plastic bottle carbonated filling machine
There's always one suitable for you
|
||||||
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension(mm)
|
|
DCGF12-12-4
|
12/12/4
|
2000-3000
|
4.4
|
2500
|
2250*1650*2250
|
|
DCGF18-18-6
|
18/18/6
|
3000-5000
|
5.2
|
3500
|
2600*1965*2250
|
|
DCGF24-24-8
|
24/24/8
|
5000-7000
|
6.2
|
4500
|
2980*2200*2250
|
|
DCGF32-32-10
|
32/32/10
|
7000-10000
|
6.2
|
6000
|
3880*2200*2250
|
|
DCGF40-40-12
|
40/40/12
|
10000-15000
|
7.5
|
7200
|
4000*2250*2500
|
|
DCGF50-50-15
|
50/50/15
|
16000-20000
|
11
|
10000
|
5500*2250*2500
|
|
DCGF60-60-15
|
60/60/15
|
20000-24000
|
15
|
11500
|
6500*5500*2550
|
|
|
||||||
If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
|
Liquid cylinder

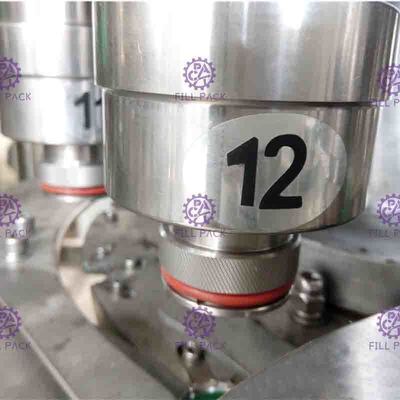

When the cylinder rotates to a fixed position, the valve above the filling valve is opened and the bottle is inflated. When the bottle pressure reaches a certain value, the filling valve is opened by pressure. The pressure inside the bottle is the same as the pressure inside the cylinder. Carbonated beverage flows into bottle with the filling valve, and the gas inside the bottle. When the liquid reaches the position of the return pipe, it can not be exhausted and the liquid can not flow down. So the filling level can be adjusted by adjusting the position of the return pipe away from the bottle mouth. When the cylinder rotates to a certain position, the fork on the filling valve is knocked down, the intake port is closed, the filling valve mouth is also closed. Next, the exhaust port on the filling valve is touched, and the gas at the bottle mouth is discharged to avoid excessive pressure at the bottle mouth, resulting in carbonated beverage rushing out of the bottle mouth.
