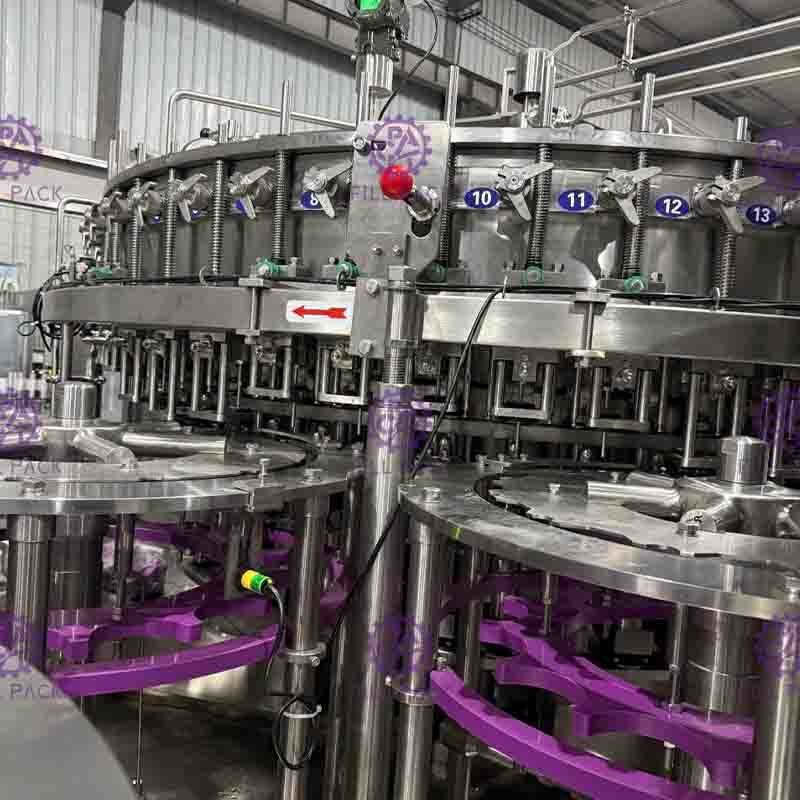

PET Plastic Glass 3 In 1 Monobloc Soft Drink Processing Line Emergency stop function
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | DCGF60-60-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-50000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Dimension(L*W*H): | 6500*5500*2550 Mm | Weight: | 115000KG |
|---|---|---|---|
| Power: | 15KW | Packaging Type: | PET Plastic Bottle |
| Capacity: | 20000-24000 Bph | Control: | PLC Control With Touch Screen |
| Highlight: | soda making machine,drink production line |
||
Product Description
Description of DCGF60-60-15 Plastic Bottle Filling machine

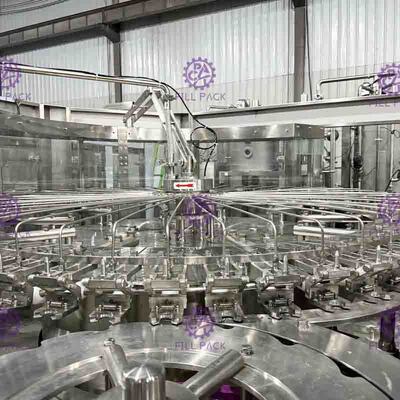

Bottle Washing
1) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
2) The rinser is driven by driving system positioned inside machine frame via gear transmission.
3) Rinser using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the side wall and bottom to make the bottle clean.

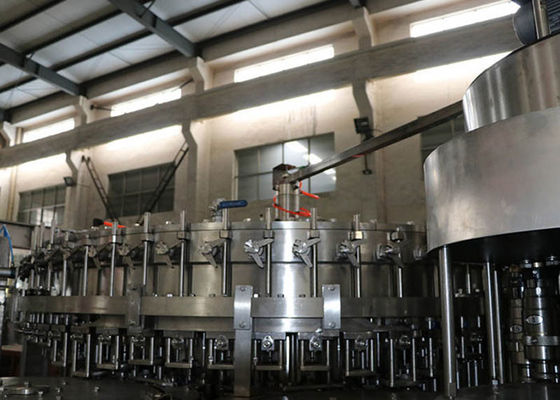

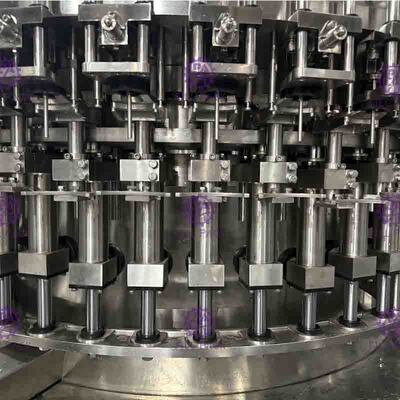

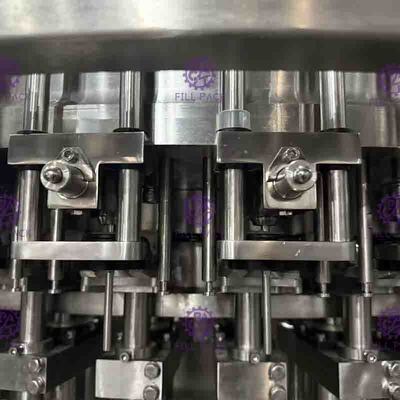

Bottle Filling
1) The rotate plate is made of SUS 304, large flat toothed bearing. 2)The filling system has a CIP circulation system to wash the pipeline. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.
3) This filling system has an automatic temperature control system.
4) The filling valve opens and begins filling whenthe pressure is balance between inside bottle and liquid tank, the filling valve move up and leave the bottleneck when it finishes filling.
5) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
|
Teachnical parameters of DCGF60-60-15
|
||||||
|
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
|
Filling pressure
|
≤0.4MPa
|
|||||
|
PET bottle specification
|
(Bottle diameter)50-115mm (Height)160-320mm
|
|||||
|
Suitable cap shape
|
Plastic or other material screw cap
|
|||||
|
Filling temperature
|
0℃—5℃
|
|||||
|
|
||||||
|
Our family of plastic bottle carbonated filling machine
There's always one suitable for you
|
||||||
|
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension(mm)
|
|
|
DCGF12-12-4
|
12/12/4
|
2000-3000
|
4.4
|
2500
|
2250*1650*2250
|
|
|
DCGF18-18-6
|
18/18/6
|
3000-5000
|
5.2
|
3500
|
2600*1965*2250
|
|
|
DCGF24-24-8
|
24/24/8
|
5000-7000
|
6.2
|
4500
|
2980*2200*2250
|
|
|
DCGF32-32-10
|
32/32/10
|
7000-10000
|
6.2
|
6000
|
3880*2200*2250
|
|
|
DCGF40-40-12
|
40/40/12
|
10000-15000
|
7.5
|
7200
|
4000*2250*2500
|
|
|
DCGF50-50-15
|
50/50/15
|
16000-20000
|
11
|
10000
|
5500*2250*2500
|
|
|
DCGF60-60-15
|
60/60/15
|
20000-24000
|
15
|
11500
|
6500*5500*2550
|
|
|
|
||||||
|
If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
|
||||||
Auxiliary equipment:
Pre-process system.
1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system
Water treatment system.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
