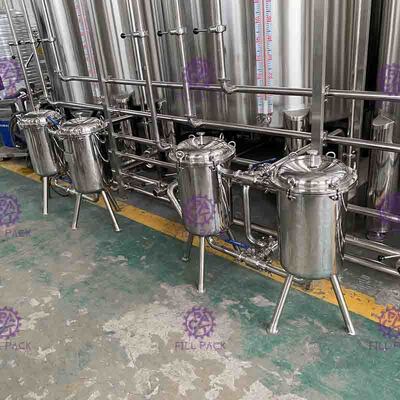

0.5T/H sparkling water carbonated soft drink production line
Product Details:
Place of Origin: | China,JiangSu,Zhangjiagang |
Brand Name: | FillPack |
Certification: | CE. ISO9001 |
Model Number: | LY-500 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set/pcs |
---|---|
Price: | USD$9230-10,900/set |
Packaging Details: | Sea worthy package |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1 set / month |
Detail Information |
|||
Capacity:: | 0.5T/H | Voltage:: | 3PH 220V 60HZ |
---|---|---|---|
Function:: | Complete Mixing Line | Core Components:: | Motor, Pressure Vessel, Pump |
Warranty:: | 1 Year, 12 Months | Filling Material:: | Carbonated Soft Drink |
Highlight: | 0.5T/H soft drink production line,0.5T/H carbonated drink production line,SUS304 soft drink production line |
Product Description

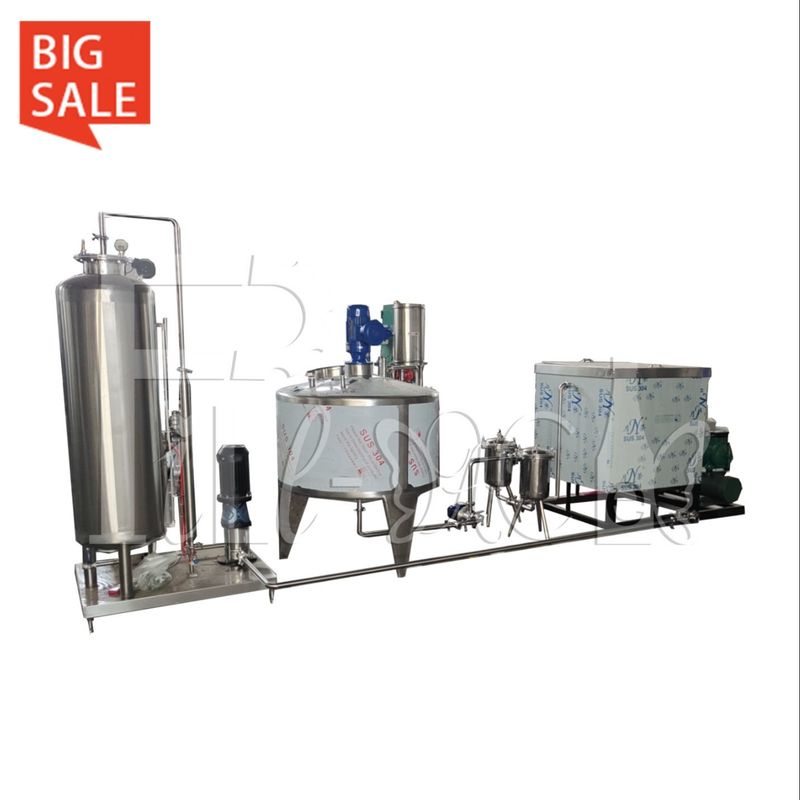

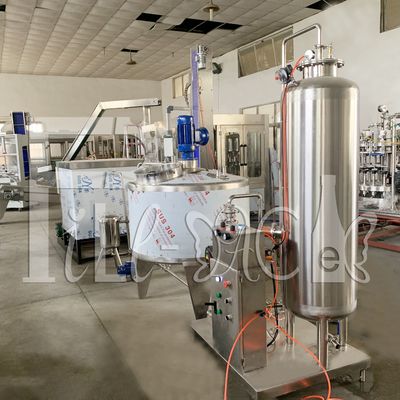

0.5T/H Soft / carbonated drink / sparkling water mixing processing line
All the necessary equipments for the complete carbonated drinks mixing process.

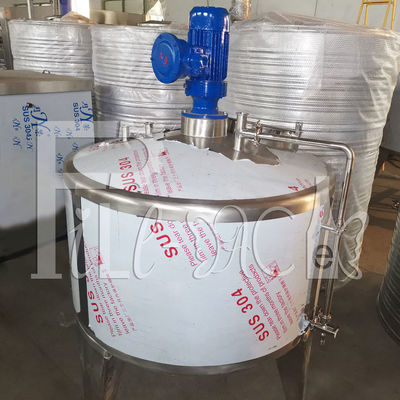

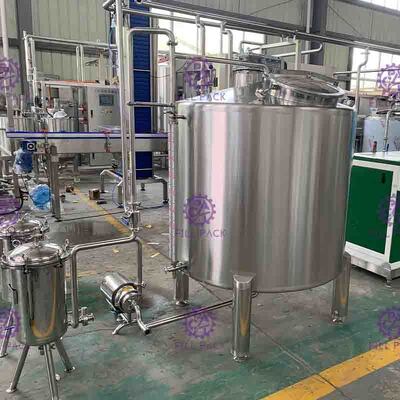

Electric heating jacket mixing tank
The electric heating jacket mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on.The heating method is to heat the heating medium by the electric heating tube installed in the jacket of the tank body to generate heat energy to indirectly heat the material in the tank. Because of its uniform heating, high use temperature (up to 300℃), fast heating speed, accurate temperature control, low pressure and high thermal efficiency, heat transfer oil is widely used as a heating medium in such equipment.
Capacity | 500L | |||
Material | SUS304 | |||
Structure | inner layer+jacket layer+insulation+outer layer | |||
Heating Power (kw) | 12 | |||
Motor power (kw) | 0.75 | |||
Motor speed (rpm) | 35 | |||
Dimension of tank body (D*H)(mm) | 800*1000 | |||
Total Height (mm) | 2100 | |||
Weight (KG) | 310 |

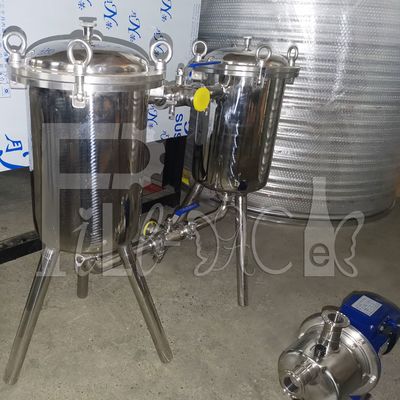

Double filter
The double filter is composed of 2 filter chambers, one is using in production while the other one is taken for washing, it will enhance working efficiency in this way. The outer tank and filter mesh are all in SUS304 for easy washing, changing and maintainance.
Capacity | 1-2T/h | |||
Filter area | 0.15m2 | |||
Precision | 120um | |||
Working pressure | 0.2Mpa | |||
Inlet/outlet | DN38 | |||
Dimension | 800*350*800mm |

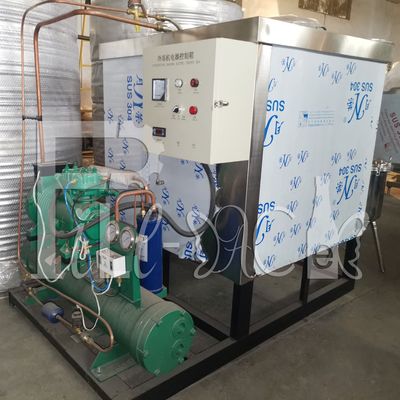

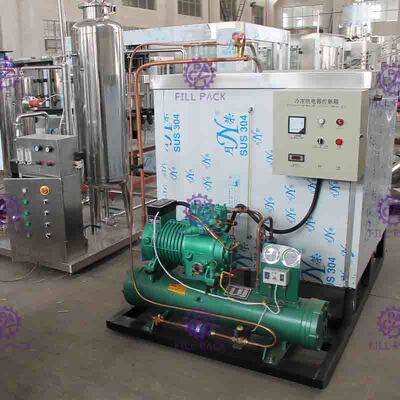

Cooling tank suit+chilling compressor
The cooling tank is composed of 2 parts: tank part and chilling compressor device part; the tank is made of SUS304 cover and lot of SUS304 coil tubes to put into the tank. When the chilling compressor start to work, the compressor will generate chilling water, the chilling water is passing inside of the tubes, there is liquid outside the tubes and inside the tank. By heat exchange purpose,the heat from the liquid in tank will be brought away about chilling water inside tubes, then the liquid temp will be lower down. The tank and and the chilling device will be controlled together at control cabinet on the tank. Parameters: Dimension: 1000*1000*2300mm Weight: 400kg Power: 2.25KW
Parameters of 3HP Chilling compressor: | ||||
Chilling power | 7200W | |||
Compressor power | 2.25KW | |||
Chilling media | R22 | |||
Output water temp. | -5℃ | |||
Chilling water flow rate | 10.5L/min | |||
Pump lift | 10H | |||
Dimension | 800*500*700mm | |||
Weight | 200KG |

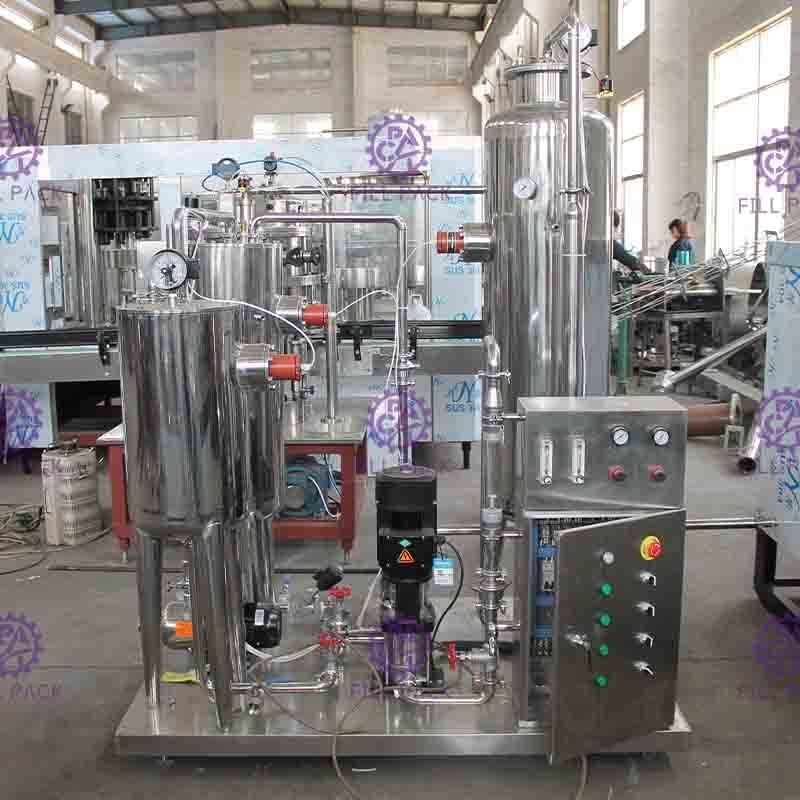

Drink carbonator
The machine adopts a closed system made by stainless steel and has the CIP flavor cleaning equipment to clean the equipments and pipeline by the liquid antiseptic and hot water, and then to ensure the beverage made by the machine can meet the health requirements.
Capacity | 500L/h | |||
Gas content | --2.5 | |||
Temp | 0-5℃ | |||
Gas consumption | 1.25m³/h | |||
Working pressure of storage vessel | 0.2-0.5Mpa | |||
Power | 0.75KW | |||
Dimension | 1100*900*2200mm | |||
Weight | 400kg |
CO2 filter
The equipment is mainly used in drink producing industry, at the mean time it is also suitable for CO2 purifying in chemical, food, brewing industry, etc. The equipment is innovated on QJ-B style filter. It has below characters: (1)all materials use high quality stainless steel, so it can bear long time corrosion (2)all values except safe value use stainless steel ball value,it will be decay resistance and leakage proof. (3)Use LZJ-15 F style decay resistance flow meter,and enlarge flow meter measuring range, enhance producing capacity. (4)Original glass easy structure on filter apparatus change into stainless steel jointing,it will stop the filtering air leakage,and will also enhance compression resistance. (5)All design is done under national standard for pressure vessel,it is with reasonable design, easy structure, nice overall look and safe operation.
Working pressure | ≤0.5Mpa | |||
Working capacity | ≤6㎡/h | |||
Refine purity | 99.99%(calculating by volume) | |||
Volume | 0.077㎡ | |||
Overall size | ∮500*1400mm | |||
Weight | 90kg |
