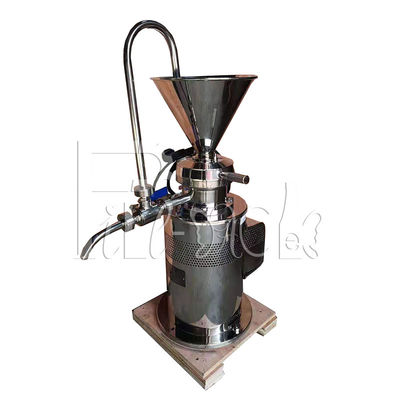

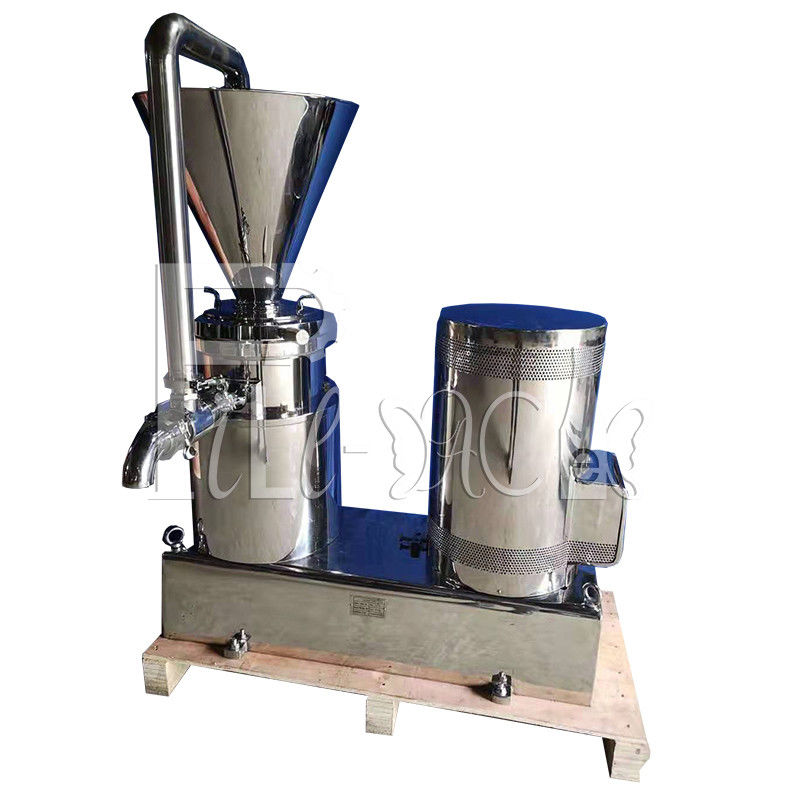

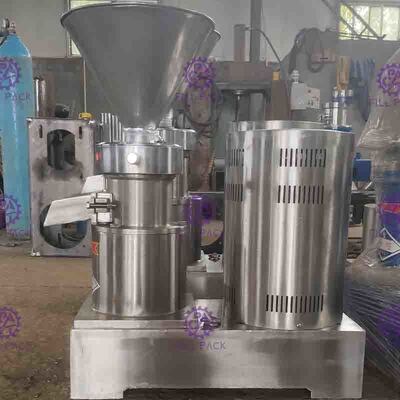

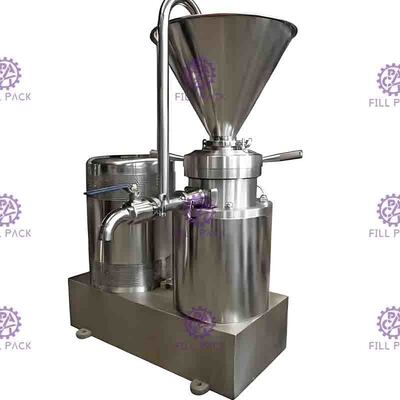

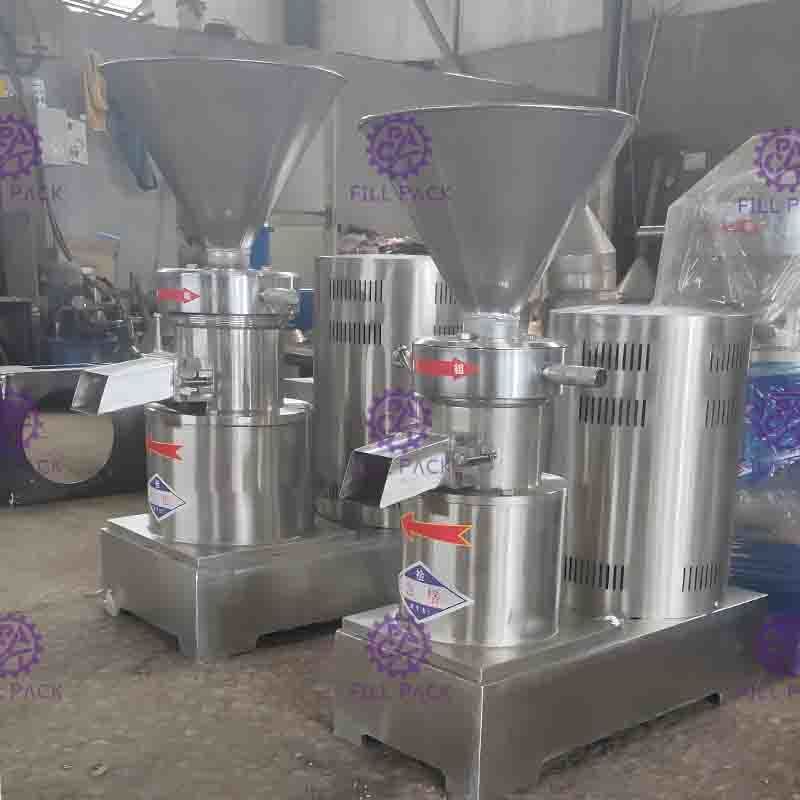

Vertical Type SUS304 Peanut Sesame Butter Processing Machine
|Place of Origin:||China,JiangSu,Zhangjiagang|
|Model Number:||Vertical Tpye & Split type|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set/pcs|
|Packaging Details:||Sea worthy package|
|Delivery Time:||10 days after deposit receipt|
|Payment Terms:||L/C, D/A, D/P, T/T, , MoneyGram|
|Supply Ability:||20set / month|
|Type:||Vertical Tpye & Split Type||Material:||SUS304|
|Machine Type:||Semi Automatic||Capacity:||According To Model|
|Power:||According To Model||Rotation Speed:||According To Model|
peanut sesame butter machine,
Vertical type sesame butter machine,
SUS304 peanut butter processing machine
Factory supply peanut sesame butter fruit making machine colloid mill nut peanut butter sesame butter machine
This colloid mill is widely applied in the industrial productions of food (Peanut butter, sesame jam, soy milk, dairy products, soft drinks, pimiento sauce, vegetable seed, sunflower seed, mustard, cocoa beans, almonds etc.), medicine (syrups, nutrition liquid, Chinese herb extracts, poultice and etc.), daily chemical products (tooth paste, cosmetic, washing agent and etc.), chemical industry products (pigment, dye, dope, lubricant, petroleum activator and etc.) and the flotation and emulsification of the explosives.
This colloid mill machine consists of high-speed rotation motorial micro section and static micro section. The gap between motorial micro section and static micro section can be adjusted freely according to fineness index needed. Fed from the hopper, the processed materials enter into the operating gap between micro sections in relative movement under the action of the strong centrifugal force. Then the materials can be grinded and crushed under the high speed of rotation. It is a different geometry of the rotor in high-speed rotation of the relative motion, breaking through the shearing, grinding, high-frequency vibration. It has three areas, one area for coarse grinding, the other area for fine grinding ,and another one for the ultrafine grinding .Through adjusting the gap between the rotor, it can effectively achieve the required standard (the gap also can be re-processed). Finally, the fine milling process is finished, and the materials go through the discharge hole.
1. It has compact structure, thin granularity, small temperature, easy operating, cleaning and maintenance.
2. Components contacted with the materials are made of high-quality stainless steel.
3. The micro sections are made of special mill grain and adhesive, which can meet the high strength and anti-corrosion. And they are cheap, the cost of micro sections is greatly reduced.
4. The machine has one accurate micro section space micro-adjusted system, with the features of flexible operation, accuracy and convenience and reliability.

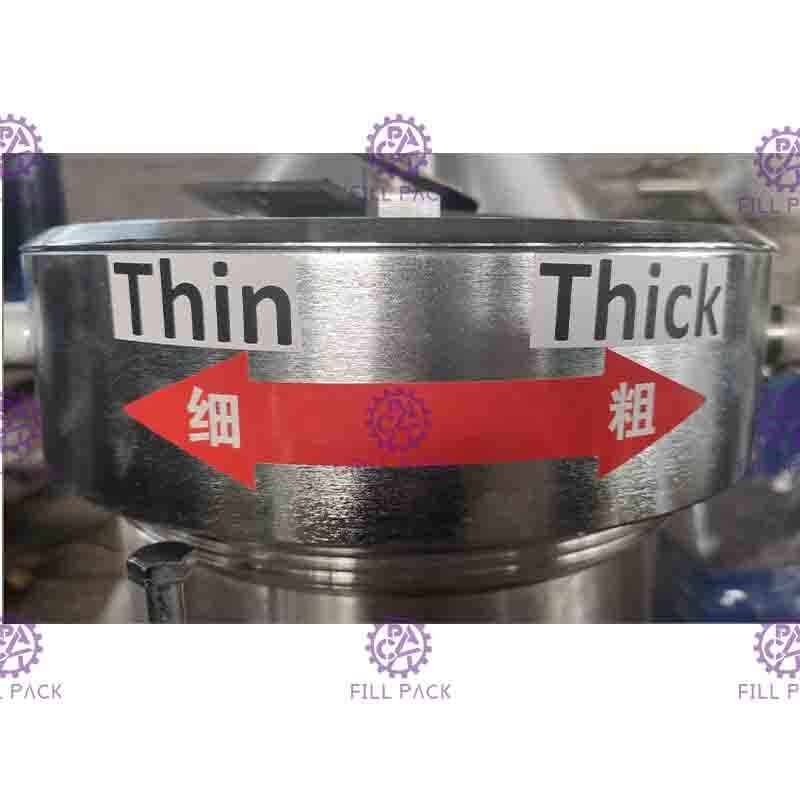

5. The gap between motorial micro section and static micro section can be adjusted freely according to fineness index needed.
6. This machine is a new type of equipment for the wet type super-micro processing, suitable for the homogenization, emulsification and comminuting of the emulsions.
7. This machine has an advanced design, it can adjust rotate speed of millstones according to different demand of different materials, and users can exchange optionally the blast motor for different materials and working condition.
|Model||Capacity||Power||Rotation speed||Overall dimension||processing particle size|
|JMS-50||0.02-0.05 T/H||1.5kw||2800 r.p.m||550*360*620 mm||2-50 um|
|0.07-0.5 T/H||4kw||2890 r.p.m||700*350*920 mm||2-50 um|
|JMS-130||1-2 T/H||11kw||2930 r.p.m||1000*450*1100 mm||2-50 um|
|JMS-160||2-3 T/H||15 kw||2930 r.p.m||1000*450*1120 mm||2-50 um|
|JMS-180||3-5 T/H||18.5 kw||2930 r.p.m||1000*450*1220 mm||2-50 um|
|JMS-200||4-6 T/H||22 kw||2930 r.p.m||1100*550*1230 mm||2-50 um|
|JMS-220||5-8 T/H||30 kw||2930 r.p.m||1300*700*1350 mm||2-50 um|
|JMS-240||10-12 T/H||37 kw or 45 kw||2930 r.p.m||1400*750*1350 mm||2-50 um|
The capacity varies according to the nature of the material, the softer the material, the higher the capacity.
