Mineral Drinking / Drinkable Water UF / Hollow Fibre Ultra Treatment Equipment / Plant / Machine / System / Line

Mineral Drinking / Drinkable Water UF / Hollow Fibre Ultra Treatment Equipment / Plant / Machine / System / Line

Product Details:

Place of Origin: ZhangJiaGang City, JiangSu Province, China
Brand Name: FillPack
Certification: CE,ISO
Model Number: UF-5000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case pacakge
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 50 sets/month
Get Best Price Contact Now

Detail Information

Voltage: 220/350V 50Hz Guarantee Time: 1 Year
Raw Water: Tap Water And Other Good Quality Raw Water Capacity: 5000L/H
High Light:

water ro system

,

ro water purifier machine

Product Description

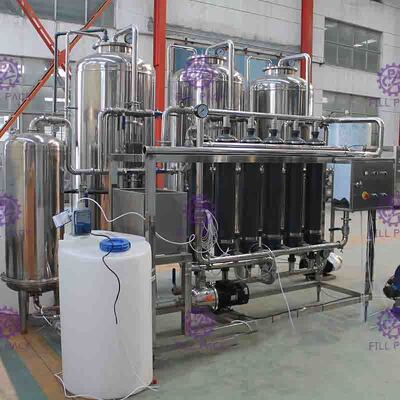

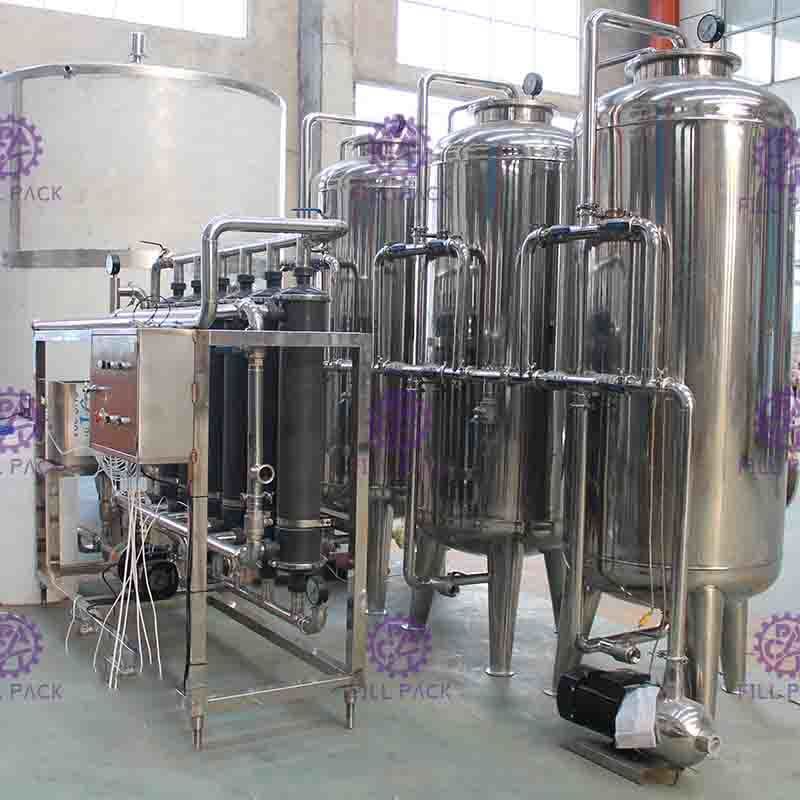

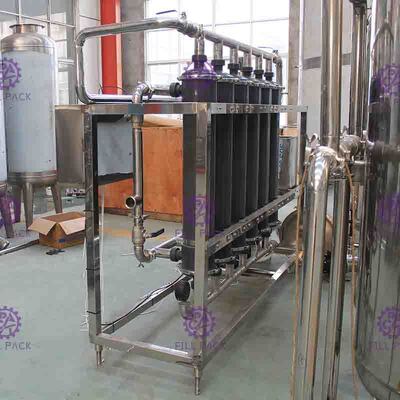

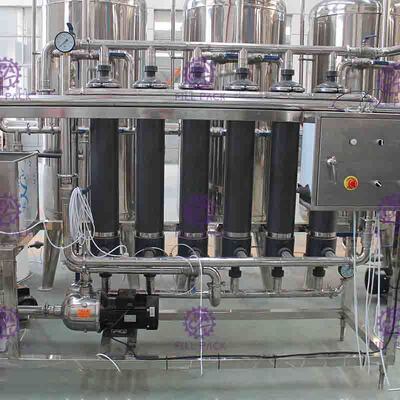

Description of our 5000LPH UF water treatment machine



The mineral water equipment adopts the purification ultrafiltration equipment, which utilizes the intercepting ability of the porous material to remove a certain size of impurity particles in the water by physical interception. Under pressure driving, substances such as water, organic low molecular weight and inorganic ions in the solution can reach the other side of the membrane through the micropores in the fiber wall, and the large size of the bacteria, colloids, particles, organic macromolecules, etc. in the solution. The substance cannot be trapped through the fiber wall to achieve the purpose of sieving different components in the solution.



UF System including:
1. Water supply system
2. Pre-treatment system
3. UF system
4. Backwash system
5. Chemical online cleaning system
6. Control system


UF System Application:
1. RO pre-treatment and post-treatment,raw water includes sea water, surface water,well water and waste water etc.
2. Drinking water supply treatment.
3. Condensate water reuse.
4. Pharmaceutical industry to remove pyrogen.
5. Municipal water,surface water and well water treated for drinking.
6. Waste water deep treated for recycling.
7. Turbidity removal of liquor,removing bacterial and turbidity from fruit wine,grape wine and yellow rice wine.
8. Applied to industries of concentration treatment such as food,beverages,fermentation,milk



Features:
High-efficiency separation, purification and high-concentration of materials, no phase change in the process, no adverse effects on the components in the material, and always in the normal temperature state during separation, purification and concentration, especially suitable for the treatment of heat sensitive substances, completely The disadvantage of high temperature damage to biologically active substances is avoided, and the biologically active substances and nutrients in the raw material system are effectively retained. The system has low energy consumption and short production cycle. Compared with traditional process equipment, the equipment has low operating cost, which can effectively reduce production costs and improve economic benefits. Low floor space, easy operation and maintenance. Hygienic pipe valves are used to clean and sanitize on site to meet GMP or FDA production specifications.



Mineral Drinking / Drinkable water UF / Hollow fibre ultra treatment equipment / plant / machine / system / line

Mineral Drinking / Drinkable Water UF / Hollow Fibre Ultra Treatment Equipment / Plant / Machine / System / Line 0

Parameters of 5000LPH UF water treatment machine:

Main parameter
Capacity 5000LPH
Cleaning method CIP
Controller PLC Automatic
Operation 24hrs
Production water (SDI) index <3
Production water Turbidity ≤0.1NTU
SS Removal 99.99%
Microorganisms, bacteria, pathogens removal 99.99%
Inlet water pressure
0.1-0.15Mpa
Backwash pressure
0.1Mpa

Packing & Delivery
1. The machine is packed by wooden case.
2. The delivery date of is within 30 working days after payment.

Our Services
1. We can design any projects of the water treatment equipment to meet the demands of our clients, considering both quality of the raw water and the desired standard of the product water.
2. System will be well pre-testing before delivery. Operation manual and drawings will be provided as well. If technicians are required at installation site, all cost involved, including visa fee, air ticket, accommodation costs, etc, are paid by buyer. In addition, each technician should pay salary every day.
3. We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. Services of 24h after sale.
