Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System

Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System

    • Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System
    • Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System
  • Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System

    Product Details:

    Place of Origin: ZhangJiaGang City, JiangSu Province, China
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: Filter-FRP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case pacakge
    Delivery Time: 15-20 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Application: Pure Water Guarantee Time: 1 Year
    Usage: Pure Water Process Liner Material: Polyethyene



    Description of our FRP Mechanical pre-filters of water treatment system



    FILL-PACK can provide you the most professional and highest-quality mechanical filter

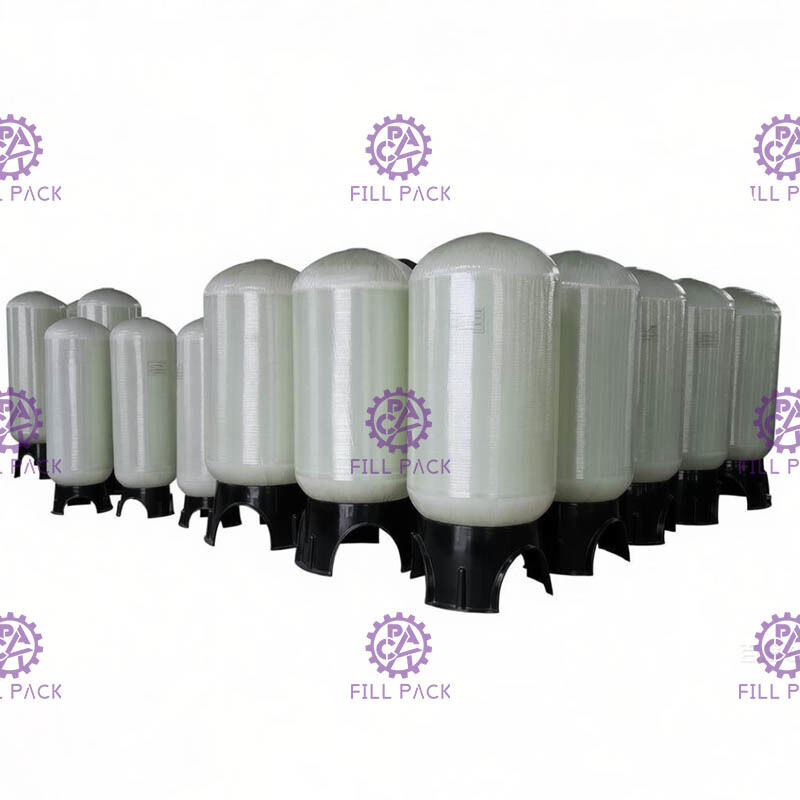

    Let's see, it's our FRP filter family



        Mechanical filter with FRP shell as a carrier, internal to quartz sand, activated carbon, ion of yin and Yang, microporous filter as the filter medium, under the pressure of water suspended solids, organic compounds, colloidal particles, microorganisms, chlorine, part of the heavy metal ions removal, finished processing the water turbidity, color, odor are reduced Operating valve with manual and automatic selection.

       Sand media filter, also known as pressure filter, is to use one or several filter media, in a certain pressure, so that the original liquid through the medium to remove impurities, so as to achieve the purpose of filtering. It is the pretreatment of pure water preparation and an important part of water purification system. It is made of carbon steel or stainless steel.Because the filter filling medium is different, the use and function are different.



    Mineral / pure drinking water ion exchanger / precision / cartridge filtration equipment / plant / machine / system

    Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System

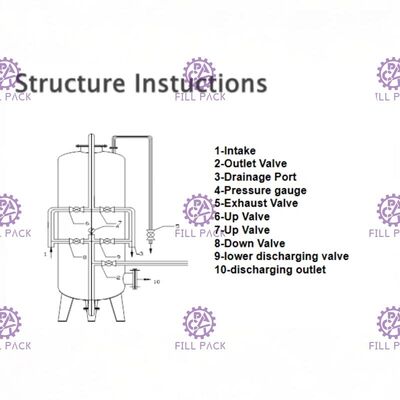

    Structure Instuctions:
    1, Exhaust:
    When exhausting, first open the filter upper inlet valve 6 and exhaust valve 5, so that water flows into the upper inlet, when the exhaust pipe outlet water, exhaust.
    2, Adjustment:
    After exhaust, adjust the inflow flow. Open the lower exhaust valve 9 again, and close the exhaust valve 5 at the same time, so that water flows out from the lower outlet 3.
    3, Operation:
    After adjusting the water inflow, the filter enters the pre-working state, then closes the lower drain valve 9, opens the outlet valve 2, and the filter can be put into operation.



    Parameters of our FRP Mechanical pre-filters:

    Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Filtration Equipment / Plant / Machine / System

    The FRP Mechanical pre-filters are matched with water treatment:

    Model Size Used for Water treatment machine
    818 200X450 0-100LPH
    835 200X 875 100-250LPH
    844 200X1100 100-250LPH
    942 200X1050 250-500LPH
    1035 250X875 250-500LPH
    1054 250X 1350 250-500LPH
    1252 300X 1300 500-1000LPH
    1354 325X 1350 1000-1500LPH
    1465 350X 1625 1000-1500LPH
    1665 400X1625 1500-2000LPH
    1865 450x1625 2000-2500LPH
