Mineral / Pure Drinking Water Ion Exchanger / Precision / Cartridge Purifying Equipment / Plant / Machine / System
Product Details:
Place of Origin: | ZhangJiaGang City, JiangSu Province, China |
Brand Name: | FillPack |
Certification: | CE,ISO |
Model Number: | Filter-FRP |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set/pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Blanket cloth or wooden case pacakge |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 50 sets/month |
Detail Information |
|||
Treatment Ro Level: | Single Level | Product Name: | Frp Pressure Vessel Tank |
---|---|---|---|
Warranty: | 1 Year | Usage: | Pure Water Process |
Highlight: | ro water purifier machine,water purifying systems |
Product Description
Description of our FRP Mechanical pre-filters of water treatment system
There are quartz sand filter, activated carbon filter, manganese sand filter. It can be used alone or in combination, depending on the actual situation.

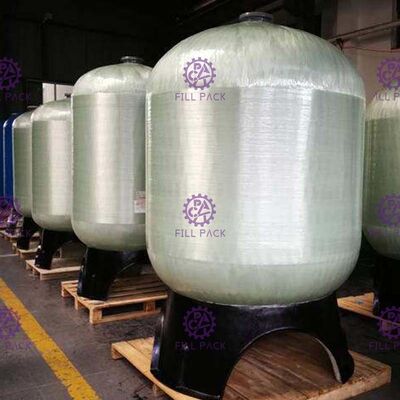

Features FRP pressure vessel tank:
FRP tanks are made of high quality composite material HDPE liner, with blow molding technique, it provides continuous seamless inner shell. Epoxy resin system and FRP filament winding outer shell, which reinforces the liner and provides strong strength for high pressure application.
Operating Condition frp pressure vessel tank:
Operating Pressure: 150 psi
Operating Temperature:49℃
Item name:6'' 7'' 8'' frp ro pressure vessel/plastic pressure vessel/membrane pressure vessel
The FRP Mechanical pre-filters are matched with water treatment:
Model | Size | Used for Water treatment machine |
818 | 200X450 | 0-100LPH |
835 | 200X 875 | 100-250LPH |
844 | 200X1100 | 100-250LPH |
942 | 200X1050 | 250-500LPH |
1035 | 250X875 | 250-500LPH |
1054 | 250X 1350 | 250-500LPH |
1252 | 300X 1300 | 500-1000LPH |
1354 | 325X 1350 | 1000-1500LPH |
1465 | 350X 1625 | 1000-1500LPH |
1665 | 400X1625 | 1500-2000LPH |
1865 | 450x1625 | 2000-2500LPH |
