Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line

Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line

    • Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line
    • Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line
  • Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: ZhangJiaGang City, JiangSu Province, China
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: Filter-SS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case pacakge
    Delivery Time: 15-20 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Name: Filters, Fine Filter, RO, UF, UV Sterilizer Capacity: 0.5T/Hour To 20T/Hour
    Guarantee Time: 1 Year Usage: Pure Water Process



    Description of our Stainless Steel Mechanical pre-filter system

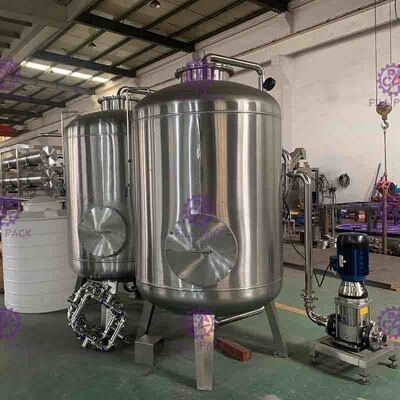

    Quartz sand filter

    Quartz sand filter is used in the first filter of the water treatment, the filter medium is quartz sand, it can remove the suspended larger solids than the filter pores, nice corrosion-resistance and strong absorption both can be used repeatedly. The quartz sand is divided into three layer: A coarse sand, medium sand, fine sand, with the filtering, the impurities are removed more ,the porous filter is getting smaller and smaller, so that fine particles and micro-organisms were also intercepted.



    Working Principle of sand filter

    Mechanical sand filter, also known as pressure filter, is an important part of the pre-pure water pretreatment and water purification systerms.Mechanical sand filter packing is mainly used to reduce water turbidity, remove the water suspended particles, organic matter, colloidal particles, microorganisms, residual chlorine and some heavy metal ions.
    The turbidity of raw water require less than 20 degrees, and it will up to 3 degrees when the filtration completed.



    Application of sand filter

    Chemical, petroleum industrial, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, textile, dye industry.



    Activated carbon filter

    Activated carbon filter is used in the second filter of the water treatment, the filter media is active carbon. It can adsorb metal such as mercury lead and many other heavy metals, it also can adsorb organic pollutants, peculiar smell, to improve the sense of the shape of the water



    Ion exchange filter

    Ion softening filter effect is to reduce the hardness of water, raw water from the top to bottom soften through the switch, the magnesiumcalcium and cationic included in the water is exchanged with the water exchanger sodium ion ,change the high hardness water to drink water.



    Mineral / pure drinking water silica / Quartz sand / Active carbon purifier equipment / plant / machine / system / line

    Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line


    Mineral / Pure Drinking Water Silica / Quartz Sand / Active Carbon Purifier Equipment / Plant / Machine / System / Line



    Parameters of Mechanical filter with stainless steel shell:

    Flow Model Thickness (mm) Dimension(mm)
    4m³/H SUS400 2mm Φ400X1850mm
    6m³/H SUS500 2mm Φ500X2100mm
    9m³/H SUS600 3mm Φ600X2500mm
    10m³/H SUS700 3mm Φ700X2600mm
    12m³/H SUS800 3mm Φ800X2600mm
    14m³/H SUS1000 3.5mm Φ1000X2700mm
    16m³/H SUS1100 3.5mm Φ1100X2700mm
    18m³/H SUS1200 3.5mm Φ1200X2700mm
    22m³/H SUS1400 4mm Φ1400X2800mm
    30m³/H SUS1600 4.5mm Φ1600X2900mm
    60m³/H SUS2000 5mm Φ2000X3500mm
    80m³/H SUS2500 6mm Φ2500X5000mm
