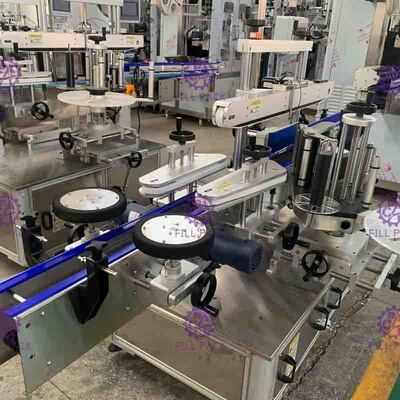

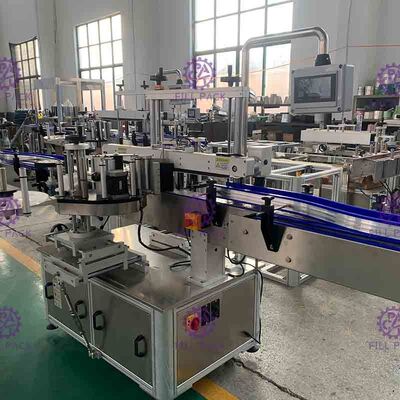

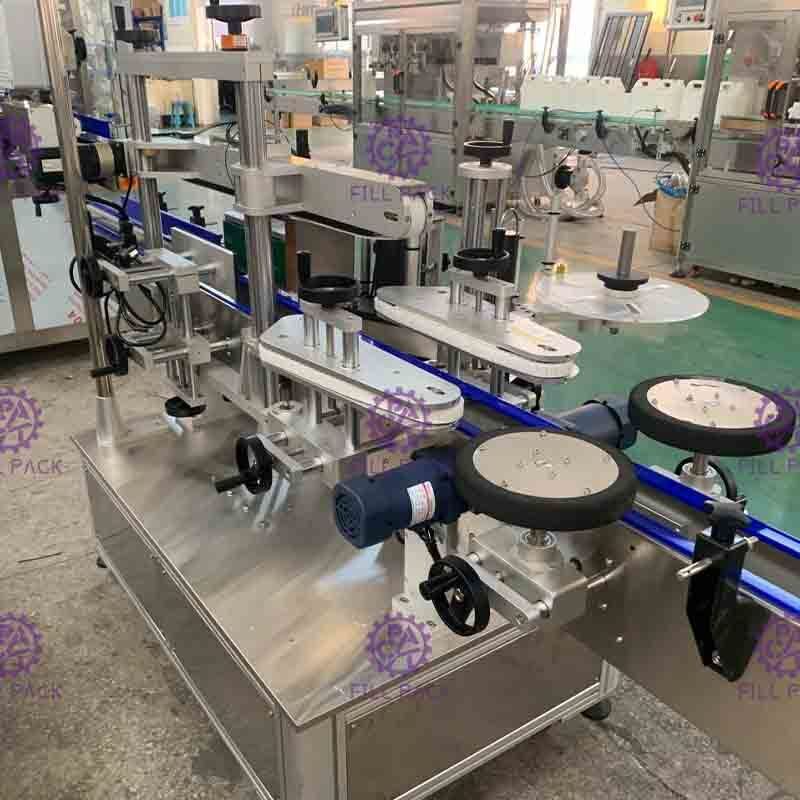

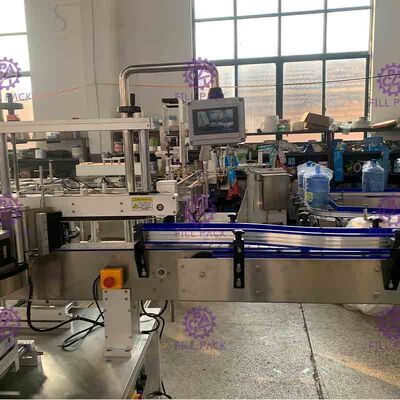

Self Adhesive PET / Plastic Sticker Square Flat Bottle Labeling / Labeler Machine / Equipment / Plant / System
Product Details:
| Place of Origin: | ZhangJiaGang,JiangSu,China |
| Brand Name: | Fill Pack |
| Certification: | CE,ISO |
| Model Number: | T-751-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD$3500-5500/set for glass bottle labeling machine |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 5 - 15days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 sets/month |
|
Detail Information |
|||
| Applicable Product: | Width≥20mm，length≥20mm，20≤height≤350mm | Dimension: | 2400*1450*1600mm |
|---|---|---|---|
| Power: | 10kw | Weight: | 350Kg |
| Highlight: | industrial labeling systems,sticker labeling machine |
||
Product Description
Description of Flat/Square bottle Single side adhesive labeling machine
>>>Basic using:
The machine can simultaneously achieve single-sided labeling and labeling features to satisfy the flat bottles, square bottles and bottle shaped single-sided, widely used cosmetics industry, daily chemical industry.
>>>Application:
★ For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
★ Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
★ Applicable products:Flat bottles, requires the side flat attached label.
★ Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
>>>Working Process:
★ Procedure:
1, put the product (which can be accessed line)
2, Product delivery
3, Products minutes away
4,Product Guide
5,Labeling (device automatically)
6, Cover Standard
7, collect the labeling products.
★ Core Working principle: The sensor detects the flat bottle after bottle to return the signal to the labeling control system, the control system in place to control the motor sends label and attached flat bottle labeling products subject position, flat bottle label products through the overlying unit, the label affixed to the product coated on a label attached to the action is completed.
|
No
|
Item
|
Parameter
|
|
1
|
Suitable label length (mm)
|
20mm ~ 200mm
|
|
2
|
Applicable Label width (backing paper width / mm)
|
20mm ~ 150mm
|
|
3
|
Applicable Product size (for flat bottle):
|
Length (transport direction) 20mm ~ 250mm Width (transport width direction): 30mm ~ 90mm Height: 60mm ~ 280mm
|
|
4
|
Applicable standard roll diameter
|
φ280mm
|
|
5
|
Applicable standard roll diameter
|
φ76mm
|
|
6
|
Labeling accuracy (mm)
|
± 1mm
|
|
7
|
The standard speed (m / min)
|
Stepping: 5 ~ 19m/min
|
|
8
|
Labeling speed (pcs / min)
|
Stepping: 30 ~ 50pcs/min
|
|
9
|
Conveyor speed (pcs / min)
|
18m/min
|
|
10
|
Weight (kg)
|
about 350kg
|
|
11
|
Power (W)
|
1000W (traction stepper)
|
|
12
|
Device dimensions (mm) (L × W × H)
|
2400mm × 1450mm × 1600mm
|
|
If you need shrink sleeve labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
Please find the contact information at contact us.
|
||
