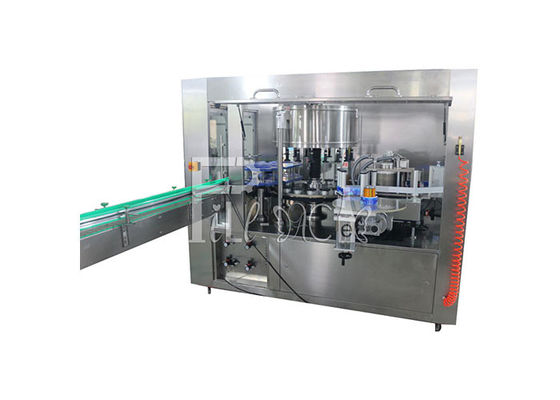

OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed

OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed

    • OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed
    • OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed
    • OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed
    • OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed
  • OPP Hot Glue Melt Water Bottle Labeler / Labeling Applicator With High Speed

    Product Details:

    Place of Origin: ZhangJiaGang,JiangSu,China
    Brand Name: Fill Pack
    Certification: CE,ISO
    Model Number: ROPP-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD$3500-5500/set for glass bottle labeling machine
    Packaging Details: sea worthy packing
    Delivery Time: 5 - 15days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 sets/month
    Contact Now
    Detailed Product Description
    Applicable Product: Width≥20mm,length≥20mm,20≤height≤350mm Voltage: 220V/380V 50HZ
    Dimension: 2100*1460*1970mm Power: 9kw
    Weight: 2800Kg Labeling Speed: 9000BPH

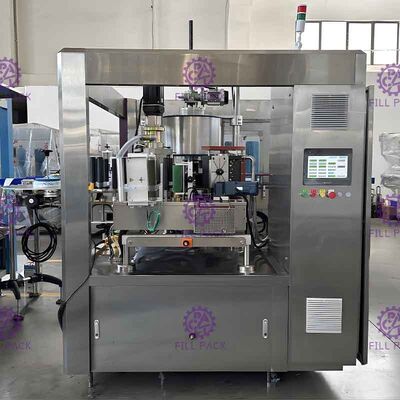

    Description of  Rotary type hot melt OPP labeling machine

    >>>Method of Operation:

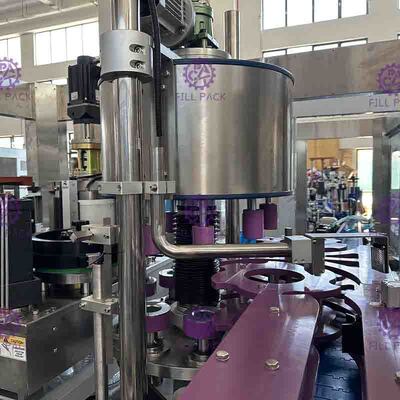

    ★ The containers are picked up by the infeed starwheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

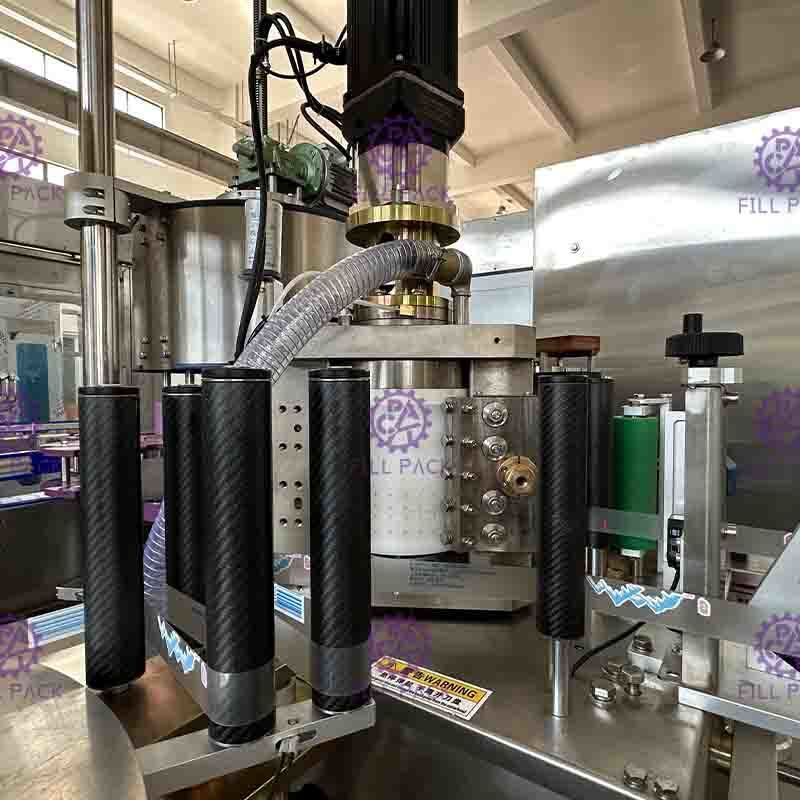

    ★ The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point. ★ Two narrow strips of hot melt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly.
    ★ Gluing of the trailing edge ensures proper bonding.


    >>>Safety part of the machine:

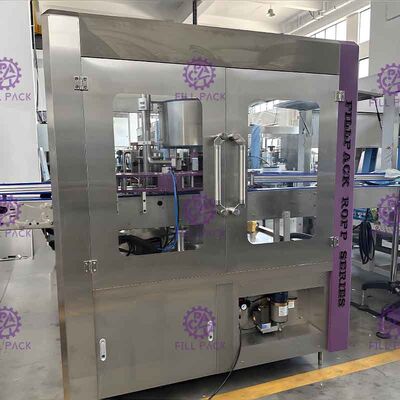

    ★ Safety protection: In order to keep the operator safety ,when the machine is running please close the protective doors
    ★ Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out
    ★ Lack of bottle alarm: When lack of the bottle the machine will stop and make an alarm .The machine will restart automatically as soon as the bottles have been put that will facilitate on-line production
    ★ Leak of labeling alarm: To control the quality of labeling
    ★ Process: Infeed bottle → pre-position →label cutting → gluing → labeling→ label by press out → finish
    Please check all of our Rotary type hot melt OPP labeling machines
    Item
    Technical Parameter
    Model
    9
    Workstations
    12
    Workstations
    15
    Workstations
    18
    Workstations
    Power supply
    Three-phase 380V 50 Hz 8000W
    The total length of equipment
    3000mm (conveyor length 3000mm or can be regulate base on your product lines)
    Equipment dimension
    2.1*1.46*1.97m
    2.25*1.65*1.97m
    2.25*1.65*1.97m
    2.4*2*1.97m
    Conveyor speed
    30m/min (the speed of the transmission lines can be adjusted according to actual production)
    The method of speed adjustment
    uninterrupted - adjust rate
    The largest Speed of labels feed
    maximum speed of 100 meters labels / min
    The largest speed of labeling
    9000BPH
    12000BPH
    15000BPH
    18000BPH
    Labeling accuracy
    ± 1mm
    Integrated Labeling accuracy
    ± 1mm
    Maximum label width
    100mm(can be customzied)
    The maximum length of label
    500mm
    The maximum diameter of label
    600mm
    Paper core diameter
    152 mm
    Labeling glue
    leading and trailing edge gluing with hot melt
    Gluing temperature
    120~160℃
    Type of label
    opp label ,paper-plastic composite film label,paper label
    The changing parts
    one suit (to be satisfied with one product, each mold contains infeed worm ,infeed starwheel ,discharge starwheel, position bottle
    and so on )
    Machine weight
    2800Kg
    3100Kg
    3500Kg
    3800Kg
    If you need shrink adhesive labeling machine, Shrink Sleeve Labeling Machine or cold glue labeling machine, please check them on
    our website or contact the sales consultant directly. Please find the contact information at contact us.
