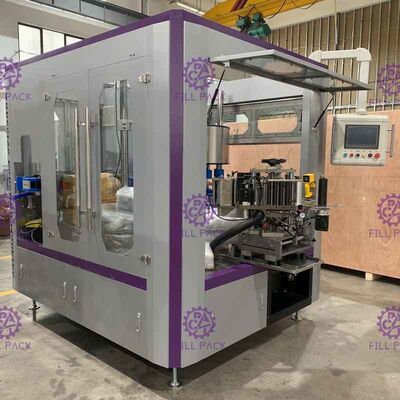

Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

    • Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit
    • Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit
    • Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit
    • Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit
  • Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

    Product Details:

    Place of Origin: ZhangJiaGang,JiangSu,China
    Brand Name: Fill Pack
    Certification: CE,ISO
    Model Number: KL-012

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD$3500-5500/set for glass bottle labeling machine
    Packaging Details: sea worthy packing
    Delivery Time: 5 - 15days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 sets/month
    Contact Now
    Detailed Product Description
    Dimension: 4000*1600*2200mm Voltage: 220V/380V 50HZ
    Automatic Degree: Automatic Labeling Speed: 200-230bottles/min

    Description of Automatic orientation Front-back Adhesive labeling machine

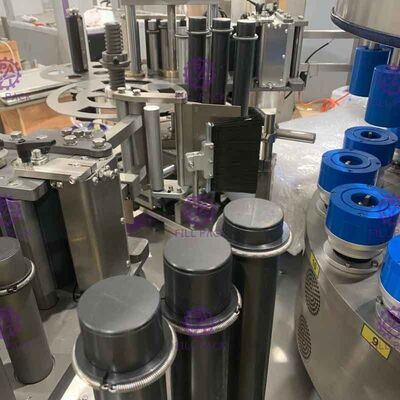

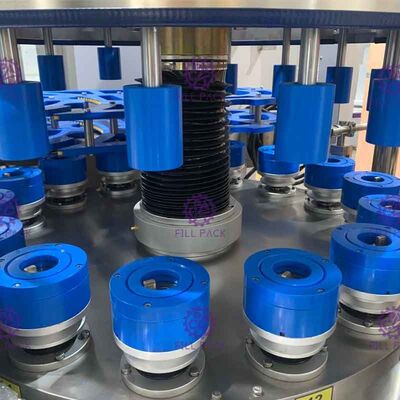

       The rotary self-adhesive labeling machine can automatically adjust the transmission of containers in and out; the bottles conveyed by the conveyor belt are separated by a certain distance according to the pitch of the star wheels by the bottle dividing screw. Then, the imported star wheels transfer the containers to the containers. On the turntable, after the container is fixed by the bottle pressing mechanism and the mold base of the container, the container starts to rotate at a certain speed; the product is mechanically pr-positioned during the rotation of the product; and the cam mechanism is used for positioning and labeling.

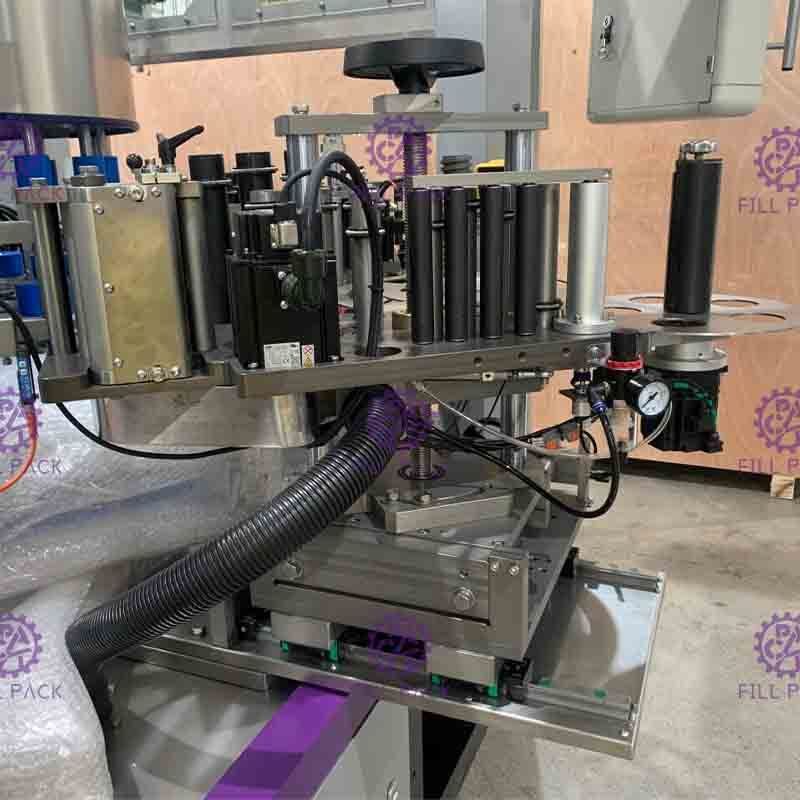

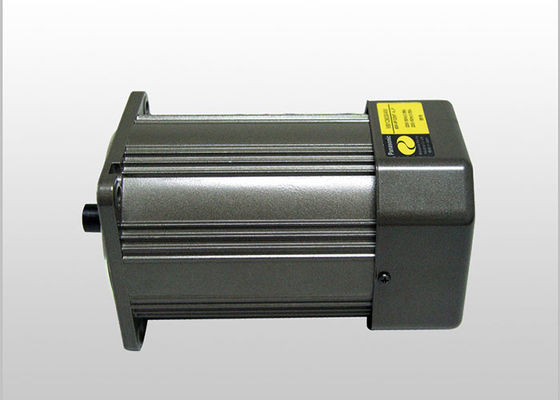

       When the container of the labeling machine reaches the detection position of the electric eye, the host computer controls the label labeling system to send the label. After completing the labeling action, the label is separated from the backing paper and attached to the product; due to the rotary sticker labeling The machine uses a servo motor to ensure the accuracy and stability of high-speed label feeding and cutting.
    The entire process of the rotary self-adhesive labeling machine is as follows: bottle feeding → predetermined position → label feeding → labeling → assisting standard → pressing → completion.

    No
    Item
    Parameter
    1
    Working pressure
    0.45-0.6mp
    2
    Conveyor width
    90mm
    3
    Labeling accuracy (mm)
    ±1mm (Do not contain the tolerance of product and label itself)
    4
    Labeling speed (pcs / min)
    200-230bottles/min(Associated with the product)
    5
    Automatic degree
    Automatic
    6
    Votage
    220V 50/60HZ
    7
    Device dimensions (mm) (L × W × H)
    4000*1600*2200mm
    If you need shrink sleeve labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
    Please find the contact information at contact us.

    Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

    Two / Double Head Neck Body Adhesive Sticker Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit

    Technical Parameters

    1 Maximum labeling speed: 200-230 bottles / minute

    2 the size of the object: meet customer requirements

    4 Working pressure: 0.45-0.6mp

    5 Machine size: (L) 4000mm × (W) 1600mm × (H) 2200mm

    6 Conveyor width: 90mm

    7 Power: 220V ± 5% 50 / 60Hz

    8 Main unit direction: right → left (standard) or left → right (selected when ordering). Note: "Direction" refers to the direction of object flow when the staff faces the operation interface.
