3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line

    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line
    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line
    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line
  • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF18-18-6B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Warranty: 1 Year For Spare Parts Capacity: 3000-24000 Bph
    Suitable Bottle Size: 3-10L PET Bottle Automation: Automatic
    Application: PET Bottle Water Material: SUS304
    Power: 5.2 Kw Dimension(L*W*H): 2450*2100*2400 Mm

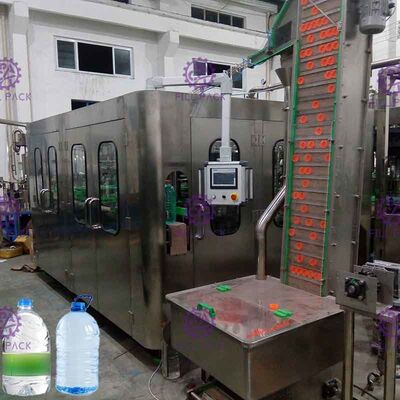

    Decription of CGF18-18-6B Pure drinking water PET bottle 3 in 1 bottling line for 3-10L bottle

    >>>Production:

    CGF 18-18-6 Automatic Bottle Water 1 gallon Filling Machine (CE)


    Usage:
    The line is mainly used for washing, filling sealing non carbon dioxide drink such as mineral water, pure water, non-gas wine
    drink and so on.


    Characteristics:
    It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main
    machine adopts advanced PLC control technology. The key electric elements adopt international famous products.


    Parameter
    Model
    CGF18-18-6B
    Capacity(B/H)(330ml)
    2500
    Bottle size
    Neck:φ20-50mm;Height:150-320mm
    Water pressure
    0.18-0.25Mpa
    Water consumption(kg/h)
    1000
    Washing station
    2
    Dripping station
    2
    Filling precision
    <+5MM
    Air pressure
    0.4Mpa
    Air consumption (m³/min)
    0.3
    Power(kw)
    5.5
    Weight(kg)
    2500
    Dimension(L*W*H)(mm)
    2750*2400* 2400/2450mm



    Electrical rating power
    Main motor
    2.2KW
    Inlet conveyor motor
    0.37KW
    Rinsing pump
    0.37KW
    Filling pump
    0.55KW
    Cap sorting motor
    0.22KW
    Belt conveyor motor
    0.37KW
    TOTAL
    4.08KW

    There are three differetnt windows for choice:galss window, galss wraped by stainless steel, Stainless steel filled in galss window as following.

    3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line

    3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line

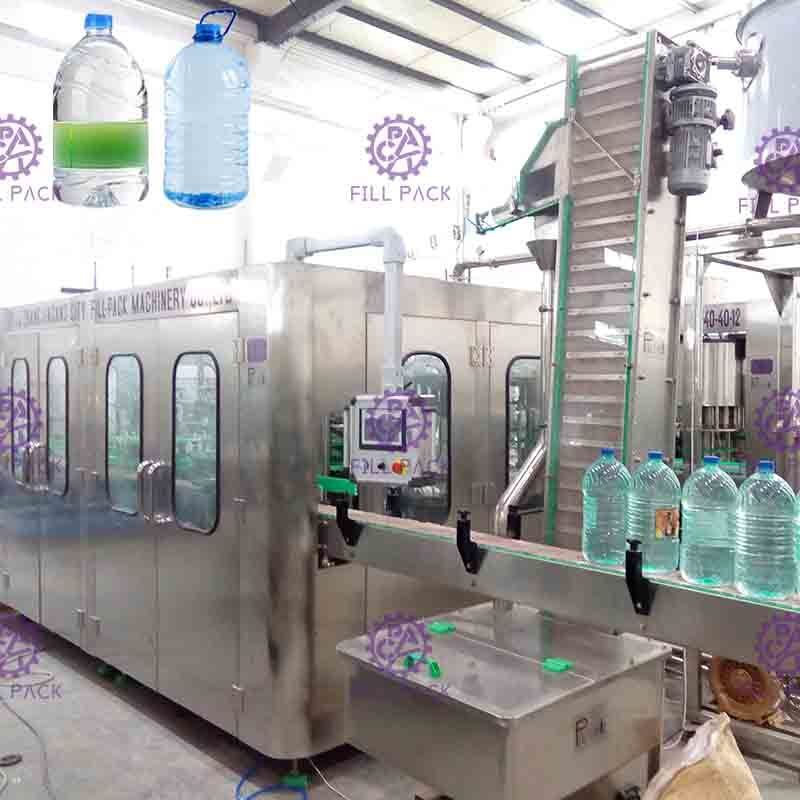

        CGF series bottled water filling machine line is used to filling mineral water of purified water into PET bottle from 3L-10L. Different models can satisfy various requirement of output from 2000B/H to 36000B/H.The machine combines washing,filling and capping three function in a body.

       The whole process is automatic,suitable for PET bottle,plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling,make the speed is faster and more satble,so with the same model our mavhine output is higher and more feeicient.

        The machine adopts advanced Mitsubishi programmable controller(PLC) to control the machine to run automatically,interworking with inverter running more satble and reliable.The photoelectric sensor detect all part running state,with high degree of automatic,easy operation.

    3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Producing Equipment / Plant / Machine / System / Line
