Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinser Filler Capper Equipment / Plant / Machine / System / Line

Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinser Filler Capper Equipment / Plant / Machine / System / Line

    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinser Filler Capper Equipment / Plant / Machine / System / Line
    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinser Filler Capper Equipment / Plant / Machine / System / Line
    • Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinser Filler Capper Equipment / Plant / Machine / System / Line
  • Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinser Filler Capper Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF50-50-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Capacity: 24000 Bph Usage: Beverage Packaging
    Suitable Bottle Size: 0.3-2L PET Bottle Automation: Automatic
    Applicable Industries: Manufacturing Plant Dimension(L*W*H): 3350*2680*2400 Mm

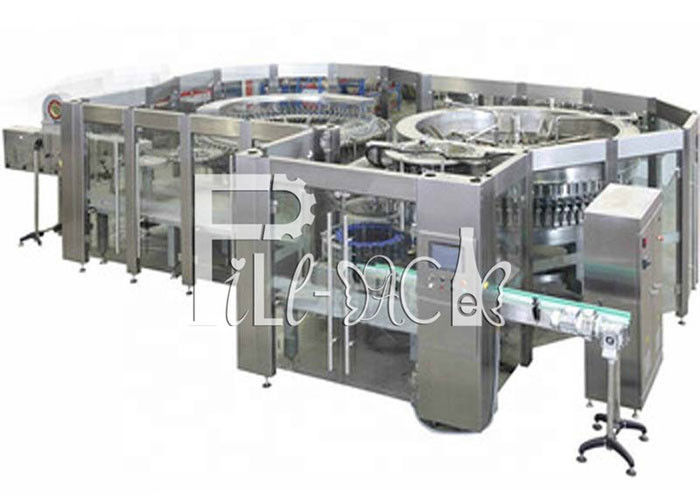

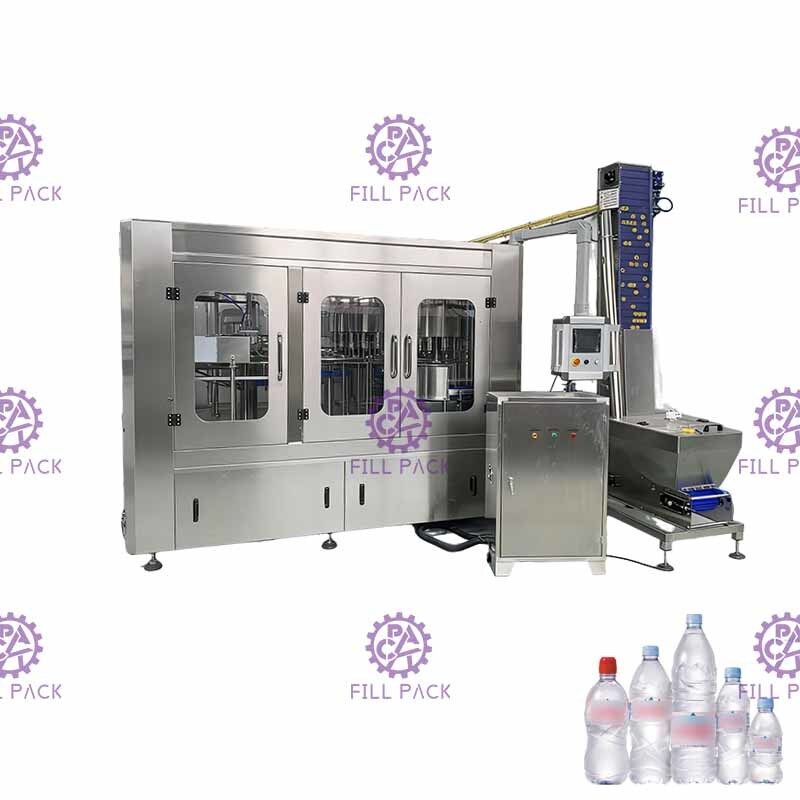

    Decription of CGF50-50-12 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle

    Main features

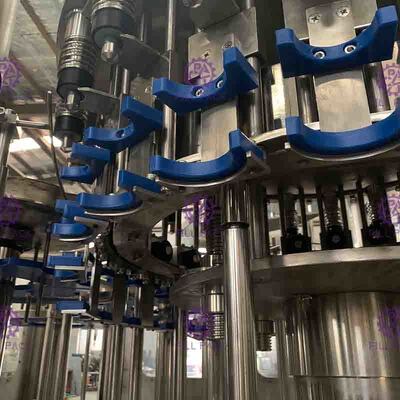

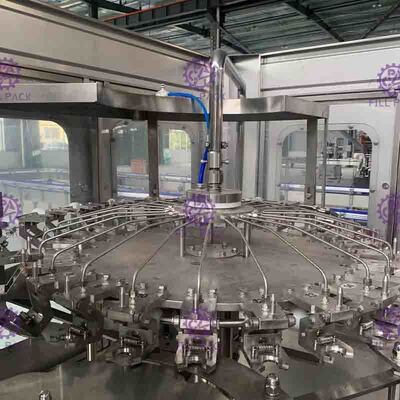

    Rinser

    This machine adopts rotary washing method, mainly used for water new bottle rinsing purpose, and then sent the bottles to filling part. PET bottles enter the machine by distributing bottle star wheel, and making the bottle mouth adown with clamp pincers and overturning device by grip the bottles mouth. After sanitary water rinse and drain, automatically turn to the bottle up, bottle after a star wheel conveyor to the filling machine. Mainly parts of equipment structure, washing media material, external protect frame are high-quality stainless steel, open-gear transmission.

    Into-water pipes has pressure meter. Washing machine has water defrosting tray for recycling washing water. Washing water capacity per bottle is 105ml/s(0.25Mpa hour)

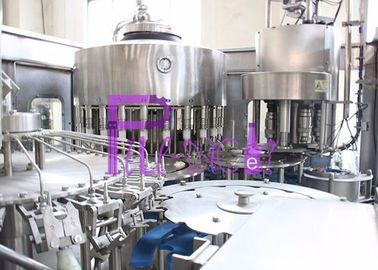

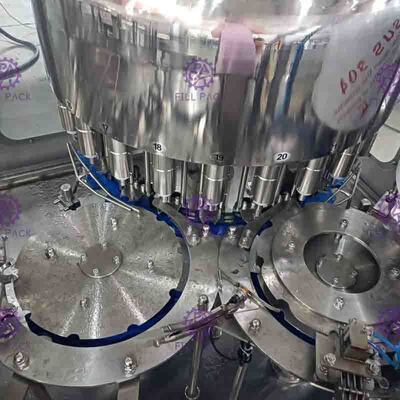

    Filler

    This part is mainly used for filling water after finishing bottle rinse.

    Filling machine is introduced by Germany technology, use normal pressure fill principle to design and produce.

    It adopt normal pressure mechanism valve, make filling with high speed and high precision of liquid level. Double leading bars elevator structure to make the bottle up and stability.

    The main drive transmission adopts gear transmission that is opening combination drive, with high efficiency, low noise, long life, easy maintenance, full lubrication, use of transducer control the main drive motor speed, this machine is non degree conversion frequency speed control.

    Bottle guiding system, the structure is simple, it can quick and easy change according to different bottle volume, this whole machine transported by clipping bottle neck method.

    PLC controlled by itself, fault display online, e.g. bottle block or non-cap etc.

    In filling tank the product material control itself, the liquid level height adopt liquid level sensor to test, make sure stability liquid level and reliable filling.

    This machine main spare parts and electricity component are import products

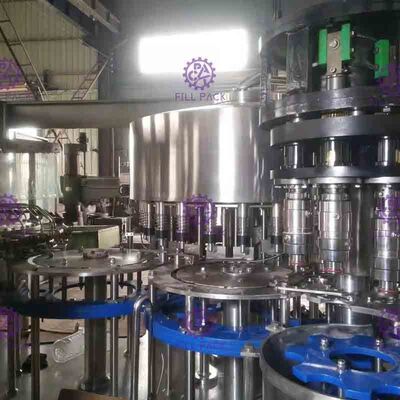

    Capper

    Capping part finishes the work to cap the bottles after filling by cap elevator, and cap is conveyed to the following procedure by conveyor chain.

    Capping machine rotates through reduction box drive rotational wheel, to make the cap leave the hopper with the function of centrifugal force. There is a separation device for right cap and reverse cap at the exit, when the reverse cap passes, the cap automatically fall into and return to pipeline, and blow the reverse cap automatically to hopper through wind power. Only right cap could enter into skids smoothly, the volume of cap inside of hopper will be automatic inspected by electric switch to control cap conveyor, and that ensures best effect of cap down. When the right cap enters into the slideway, it could smoothly enter into cap feed plate, to prevent accidents, there is an anti reverse cap drive plate device to match with slideway, to ensure that the access to the cap feed plate is correct. The slideway is also equipped with a pair of photoelectric switch, when testing no cap, then an immediate halt to the host. In order to effectively remove non-anti-theft ring bad caps and cleanup additional caps in hopper, there is an active exit in front of the hopper exit can meet this function.


    Parameters
    Model CGF50-50-12
    Capacity(B/H) 24000
    Bottle size Neck :φ50-100mm:Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 18
    Loading-Dripping-discharge station 2-2-2
    Filling precision <+1MM
    Air pressure 0.5Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 8
    Weight(kg) 4000
    Dimension(L*W*H)(mm) 4550*3500*2400 mm

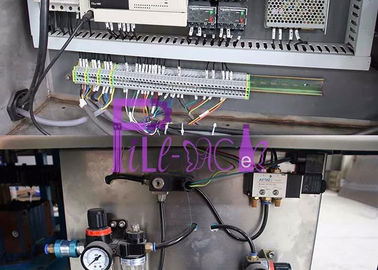

    Electrical apparatus
    Transducer Simens-Germany
    Touch screen Simens-Germany
    PLC Simens-Germany
    Stabilized voltage supply MingWei-TaiWan
    Contactor Schnider-French
    Approach switch Schnider-French
    Air switch Schnider-French
