Semi Automatic Juice Filling Machine Linear Liquid Plastic Bottles Mineral Water

Semi Automatic Juice Filling Machine Linear Liquid Plastic Bottles Mineral Water

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILLPACK
Certification: CE/ISO9001
Model Number: 2 heads / 4heds

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1100USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Filling Range: 30ML-500ML/500ML-3L/0-5L/5-20L Flow Rate1: Filling Pipe(ID 8mm/OD 9mm):1L/10 Seconds
Flow Rate2: Filling Pipe(ID 18mm/OD 19mm):1L/3 Seconds Flow Rate3: Filling Pipe(ID 20mm/OD 21mm):1L/2 Seconds
Filling Head: 2/4 Work Pressur: 0.4 MPa
Machinery Capacity: 2000-4000BPH Dimension(L*W*H): 700*6500*1650MM
Weight: 75 KG Filling Material: Milk, Water, Juice
High Light:

Linear Liquid Plastic Bottles Filling Machine

,

4000BPH Bottles Filling Machine

,

30ML - 500ML Bottles Filling Machine

Product Description

Semi-Automatic Linear Liquid Plastic Bottles Mineral Water Essential Oil Perfume Juice Filling Machine Equipment

General:

This machine is a semi-automatic intelligent linear filling machine, which adopts the principle of gravity filling to prevent liquid overflow. The anti-drip filling head ensures the cleanliness of the filling process. Adopt time relay control. Optional configuration microcomputer control model:Full-color touch screen man-machine interface, the whole filling process can complete the setting of the filling volume and the number of filling heads through the touch screen on the equipment and automatically fill, and the process basically realizes one-button operation. This machine is used in plastic bottle, glass bottle as well all kinds of geometric shape bottles, It is widely used in all kinds of easy flow liquids such as water, beverages, wine, milk ,daily chemicals, food, medicine and other industries. Made of high-grade stainless steel, meeting food hygiene standards.



Main Features:

1. High accuracy: This model has its own built-in liquid storage tank, and has a sensitive liquid level sensing control system to ensure stable pressure in the liquid storage tank and uniform flow rate, so as to facilitate the control of the accuracy of filling volume and filling volume. The error is not more than 0.3%;

2. Applicable to a wide range of bottle types: workers only need to adjust the spacing of the filling valve and the spacing of the guardrail when operating and changing the bottle type, without any tools, very convenient and fast:

3. Optional microcomputer touch screen model, high degree of automation: PLC electronic control system, computer touch screen control panel, to achieve one-button operation.

4. The whole machine is made of stainless steel, which is beautiful and elegant, with reasonable structure and durability.

5.It is simple and convenient to replace containers of different shapes and adjust different filling volumes without replacing parts.





Parameters
Filling head
2 heads
4 heads
Filling range
30ML-500ML
500ML-3L
0-5L
5-20L
Flow rate
Filling pipe(ID 8mm/OD 9mm):1L/10 seconds
Filling pipe(ID 18mm/OD 19mm):1L/3 seconds
Filling pipe(ID 20mm/OD 21mm):1L/2 seconds
*Customers can choose the caliber according to their own bottle mouth size
Power
350W
550W
750W
1100W
work pressure
0.4 MPa
Filling accuracy
≤±0.2%
Weight
50KG
75KG
Size
700*6500*1650MM
1000*650*1650MM



Detailed Images

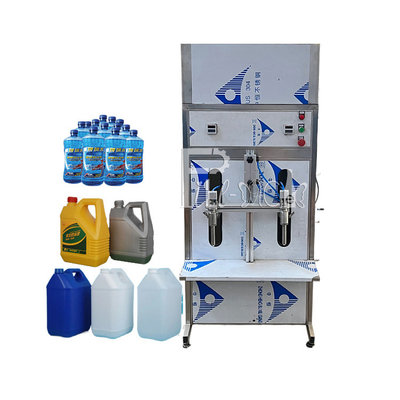

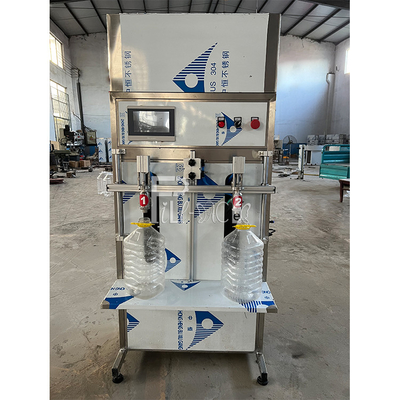

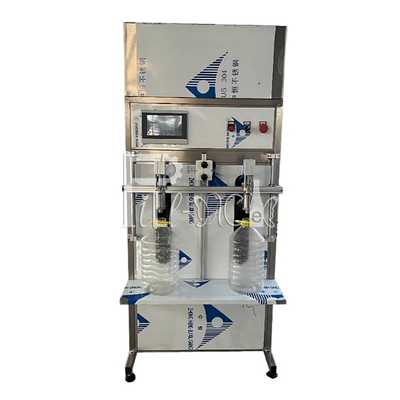

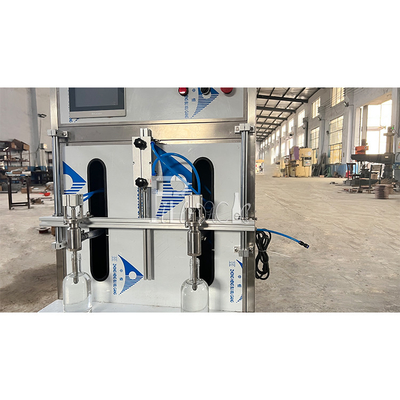

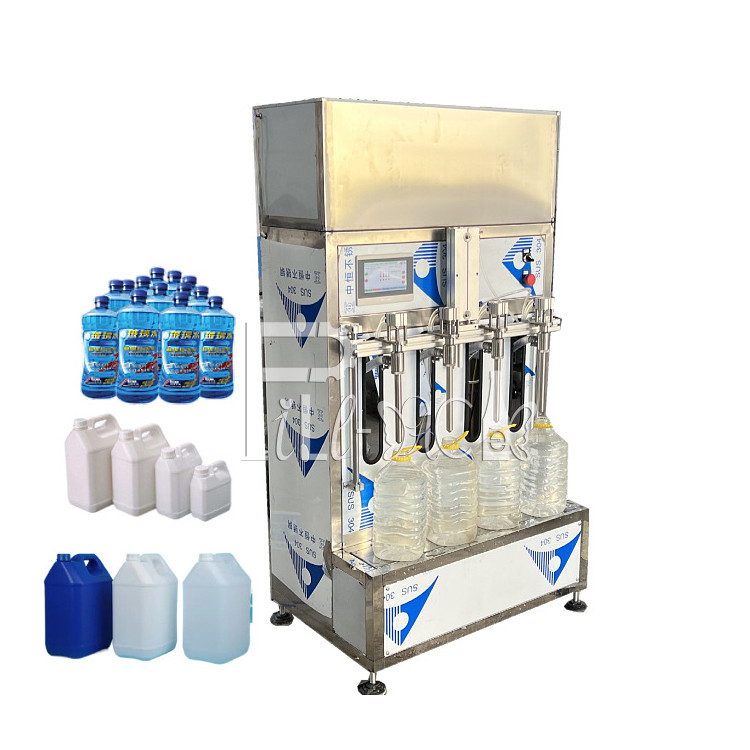

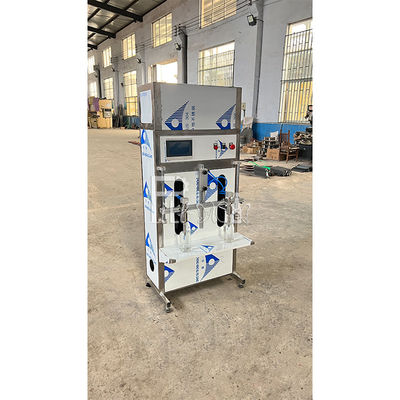

Semi Automatic Juice Filling Machine Linear Liquid Plastic Bottles Mineral Water 0

Semi Automatic Juice Filling Machine Linear Liquid Plastic Bottles Mineral Water 1

Semi Automatic Juice Filling Machine Linear Liquid Plastic Bottles Mineral Water 2
