Pure Drinking PET Bottle Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line

Pure Drinking PET Bottle Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line

Pure Drinking PET Bottle Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: QS-12 CG-12 FXZ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-40000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 Sets Per Months
Contact Now
Detailed Product Description
Service: Technician Avaliable Overseas Capacity: 1500-2000 Bph
Filling Machine: 12 Heads Name: 12-12-1 Linear Type Small Water Filling Machine
Condition: New Dimension(L*W*H): 2100*1750*2100 Mm

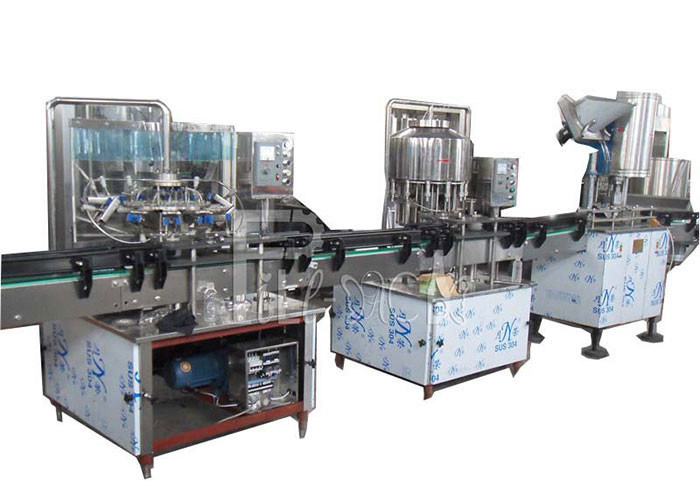

Decription of linear type 12-12-1 Pure drinking water PET bottle filling line


Product Description

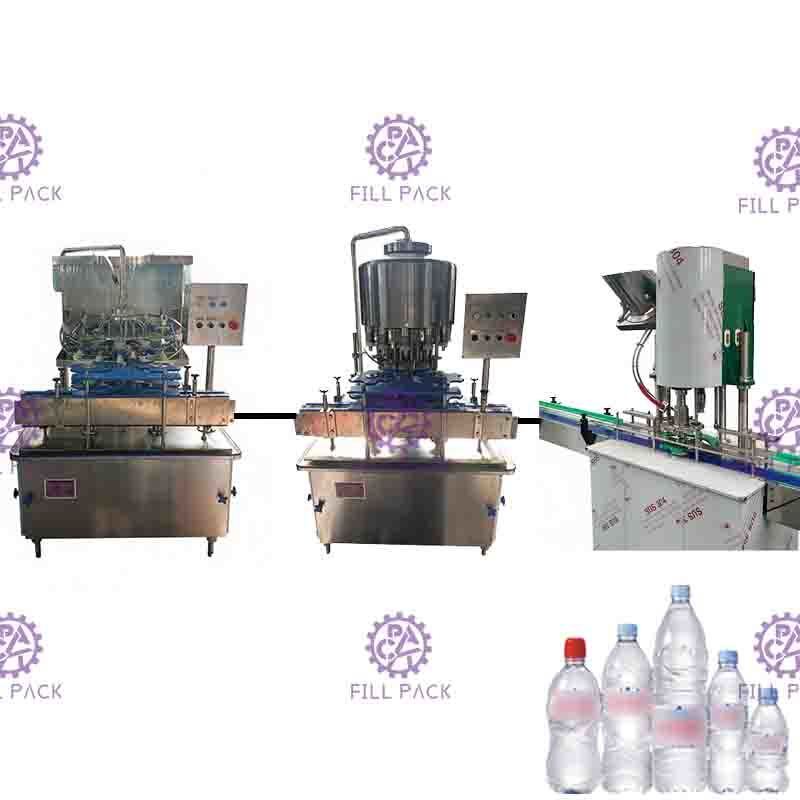

The production line includes QS auto washer, CG normal pressure filler, FXZ automatic capping machine, SSJ conveyer system etc. The main parts for washing, filling and sealing are made of high quality stainless material, with the features of advanced technology, completed system, reliable performance, easy in operation, etc.



Capacity Character

It makes changing bottle model more convenient,faster and easier.The main machine adopts advanced PLC control technology .The key electric elements adopt international famous products.



Type CGZ12-12-1 CGZ18-18-6 CGZ24-24-8 CGZ32-32-8
Washing heads 12 18 24 32
Filling heads 12 18 24 32
Capping heads 1 6 8 8

Capacity

Base on 500ml

1000-2000bph 1500-4000bph 2000-5000bph 3000-8000bph

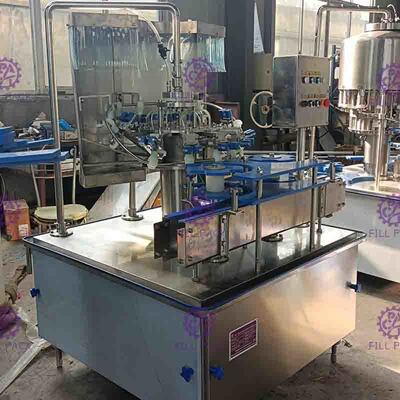

Rinsing part

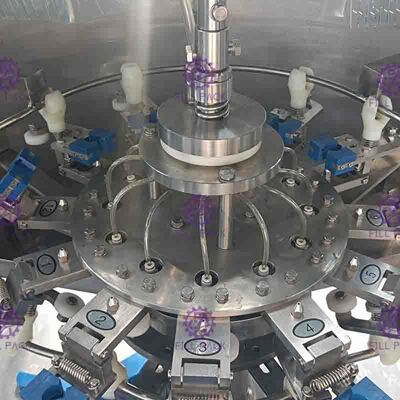

The Washing mahcine is mainly to wash PVC, PET, etc L type plastic bottles; it also can be used to wash disposable glass bottles. The washing way is jetting, the structure is rotary. The machine can continuous automatic complete the processing: overturned bottle, turn bottle, wash bottle, water dripping. The whole processes include two steps, washing and dripping. It is a necessary machine for nature mineral water, pure water, and other liquid filling production line.

Parameters:
Rising heads 12 pcs
Capacity 0-3000BPH (each bottle rinsing time 4s)
Power 0.92KW
Dimension
1050*950*1700mm
Weight 700KG
Applicable bottle D∮50-100mm,H 50-350mm

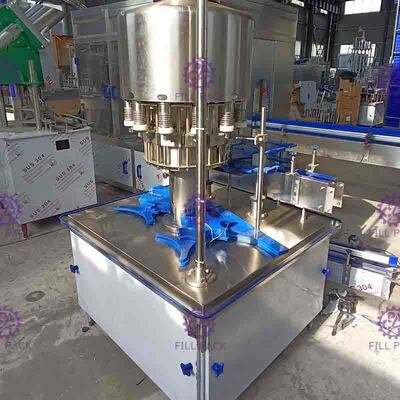

Filling part

The filling machine is to fill wine, juice etc non carbonated soft drink, it also can use to fill vinegar, milk, etc; because all the filling it closed condition, it can eliminate pollution spreading.

Parameters:
Filling heads 12 pcs
Power
1.1KW
Dimension 1100*1050*1850mm
Weight 800KG



Capping part

The capping machine can cap different kinds of bottles, it is reliable, easy to operate and easy to maintain. It are widely used in wines, food, drinks, medicine, chemicals, reagents, pesticides and automatic packing etc. It is the most popular rotary screw automatic folding capper.

Parameters:
Capping head
1 pc
Power
1.1KW
Dimension 1000*850*2000mm
Weight 600KG



We have 3-in-1 washing-filling-capping machine for 0-2L bottle and 3-10L bottle.
We also have linear type washing-filling-capping machine for 0-2L bottle and 3-10L bottle.

The capacity of linear type is not faster than 3-in-1, and it's floor area is slightly larger, but the price is more cheaper than 3-in-1.

Our Washing-filling-capping machines (3-in-1 and Linear type)
3in1(0-2L bottle) Capacity(bottle per hour) 3in1(3-10L bottle) Capacity Linear type Capacity
CGF8-8-3 2000-3000BPH CGF8-8-3B 0-1000 CGF4-4-1 500BPH
CGF12-12-4 3000-4000BPH CGF12-12-4B 0-1500 CGF6-6-1 750BPH
CGF18-18-6 6000-7000BPH CGF18-18-6B 0-2500 CGF8-8-1 1000BPH
CGF24-24-8 11000-12000BPH CGF24-24-8B 0-3500 CGF10-10-1 1500BPH
CGF32-32-10 14000-15000BPH CGF32-32-10B 0-5000 CGF12-12-1 2000BPH
CGF40-40-10 19000-20000BPH
CGF50-50-12 23000-24000BPH

More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
