3-in-1 eye drops automatic filling and capping machine/filler/system

3-in-1 eye drops automatic filling and capping machine/filler/system

    • 3-in-1 eye drops automatic filling and capping machine/filler/system
    • 3-in-1 eye drops automatic filling and capping machine/filler/system
    • 3-in-1 eye drops automatic filling and capping machine/filler/system
    • 3-in-1 eye drops automatic filling and capping machine/filler/system
  • 3-in-1 eye drops automatic filling and capping machine/filler/system

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 11500USD
    Packaging Details: Wooden Case Package
    Delivery Time: 7 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Capacity: 1200-1800bph Control: PLC
    Filling Volume: 15ml-120ml Filling Head: 2
    Driven Type: Electric Material: SUS 304
    Size: 2600*1920*2550mm Weight: 500kg

    3-in-1 eye drops automatic filling and capping machine/filler/system

    Items are in stock and ready to ship.

    Application:

    This production line is mainly used for electronic cigarette oil, eye drop, essential oil, nail polish, eye shadow and other
    products fully automatic filling production.



    Performance feature:

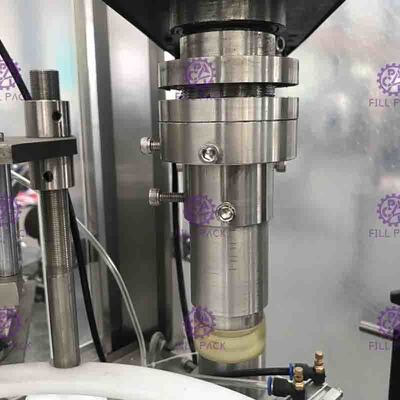

    1. This machine use a mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.

    2. Peristaltic pump or piston pump measuring, accurate measurement, easy to control.

    3.Use Peristaltic pump, machine can adjust filling volume on the touch screen, and when bottle is not enough, machine will stop filling automatically, avoid waste.

    4. Filling system has suction / anti-drip device.

    5. Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.

    6. The whole line is compact, high speed, high degree of automation, save the manpower cost.

    7. Main electrical elements adopt foreign well-known brands.

    8. Machine shell is made of 304 stainless steel, easy to clean, machine, meets GMP requirements.



    parameter:

    Material
    SUS304
    Power
    380V 50HZ
    Filling volumn
    15-120ml
    Capacity
    20-20BP/MIN(15ml); 4BP/MIN(120ml)
    Filling Nozzles
    2 nozzles
    Filling method
    Peristaltic pump filling
    Filling accuracy
    ±1%
    Convey
    Chain plate width 101.6mm, height 900+-50mm off the ground
    3-in-1 eye drops automatic filling and capping machine/filler/system
