3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Filling Equipment / Plant / Machine / System / Line

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Filling Equipment / Plant / Machine / System / Line

    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Filling Equipment / Plant / Machine / System / Line
    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Filling Equipment / Plant / Machine / System / Line
  • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Filling Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF12-12-4B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Driven Type: Electric Packaging Type: Bottles
    Suitable Bottle Size: 0.3-2L PET Bottle Automation: Automatic
    Application: PET Bottle Water Dimension(L*W*H): 2100*1750*2100mm

    Decription of CGF12-12-4B Pure drinking water PET bottle 3 in 1 bottling line for 3-10L bottle

    >>>Product Description:

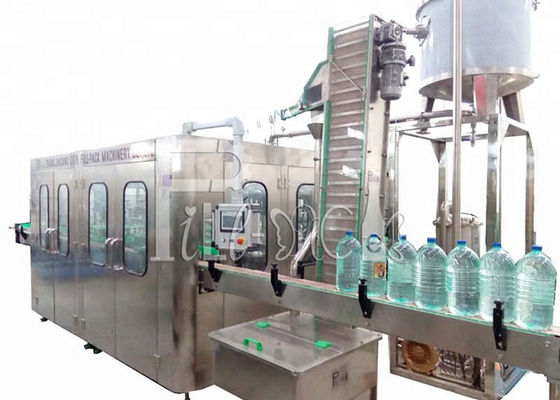

    1. This 3L, 5L, 10 liter bottle filling machine is composed by washing machine, filling machine and capping machine.
    2. The bottle filling machine is suitable for 3-10L drinking water production line.
    3. The bottle filling machine main parts adopts imported ones such as Omron Siemens.
    4. The bottle filling machine has good structure, using less area.It has high effective and stable.
    5. The bottle filling machine is high automatic type, easy operate and maintain.



    Technological Flow Sheet (Drinking Water Production Line):
    1. PET Preform Injection Molding System
    PET material→ Dehumidify→ Load material→ Injection machine→ Preform

    2. PE/PP Cap Compression Molding System
    PE material→ Dehumidify→ Load material→ Compression machine→ Cap

    3. PET Bottle Blowing System
    PET Preforms→ heat preform→ stretch→ blowing→ bottles

    4. Water Purifying System
    Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Pump

    5. Water Filling, Labeling and Packing System
    Air conveyor→ Rinsing, Filling& Capping Mono-Block→ Lamp checker→ Conveyor→ Auto labeling machine→ Date printer→Auto packing machine→ Stock


    3L / 5L / 10L mineral water plastic bottle 2 in 1 filling equipment / plant / machine / system / line
    3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Filling Equipment / Plant / Machine / System / Line

    Parameter
    Model
    CGF12-12-4B
    Capacity(B/H)(330ml)
    1000-1500(3L)
    Bottle size
    Neck:φ20-50mm;Height:150-320mm
    Water pressure
    0.18-0.25Mpa
    Water consumption(kg/h)
    1000
    Washing station
    2
    Dripping station
    2
    Filling precision
    <+5MM
    Air pressure
    0.4Mpa
    Air consumption (m³/min)
    0.3
    Power(kw)
    4
    Weight(kg)
    2500
    Dimension(L*W*H)(mm)
    2400*2100* 2100/2450mm
    Electrical apparatus
    Transducer
    FuLing-Taiwan
    FL-2.2K
    Touch screen
    Easyview-TaiWan
    MT6070
    PLC
    Mitsubishi
    FXIS-20MR
    Stabilized voltage supply
    MingWei-TaiWan
    S-35-24
    Contactor
    Delixi
    CJX2-0910
    Approach switch
    Autonics
    PR18-8DN
    Air switch
    Delixi
    3P-D20


    IP-C3
    Electrical rating power
    Main motor
    2.2KW
    Inlet conveyor motor
    0.37KW
    Rinsing pump
    0.37KW
    Filling pump
    0.55KW
    Cap sorting motor
    0.22KW
    Belt conveyor motor
    0.37KW
    TOTAL
    4.08KW

    There are three differetnt windows for choice:galss window, galss wraped by stainless steel, Stainless steel filled in galss window as following.


    FAQ
    Q What is your trade clause?
    A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.



    Q What is your payment term?
    A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment



    Q What is the valid of your price?
    A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.



    Q How could I know if your products' specification is suit for our country power?
    A All the machines are custom made. We will make suitable voltage and frequency products according to your need.



    Q How long can you arrange delivery?
    A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
