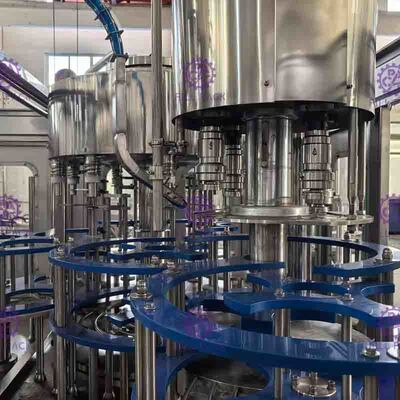

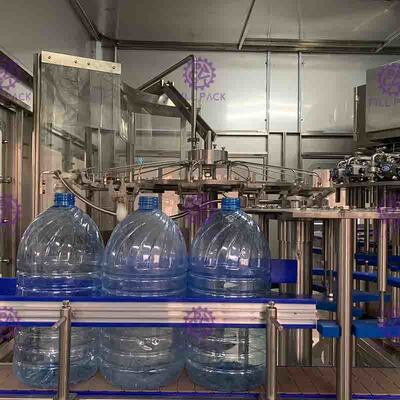

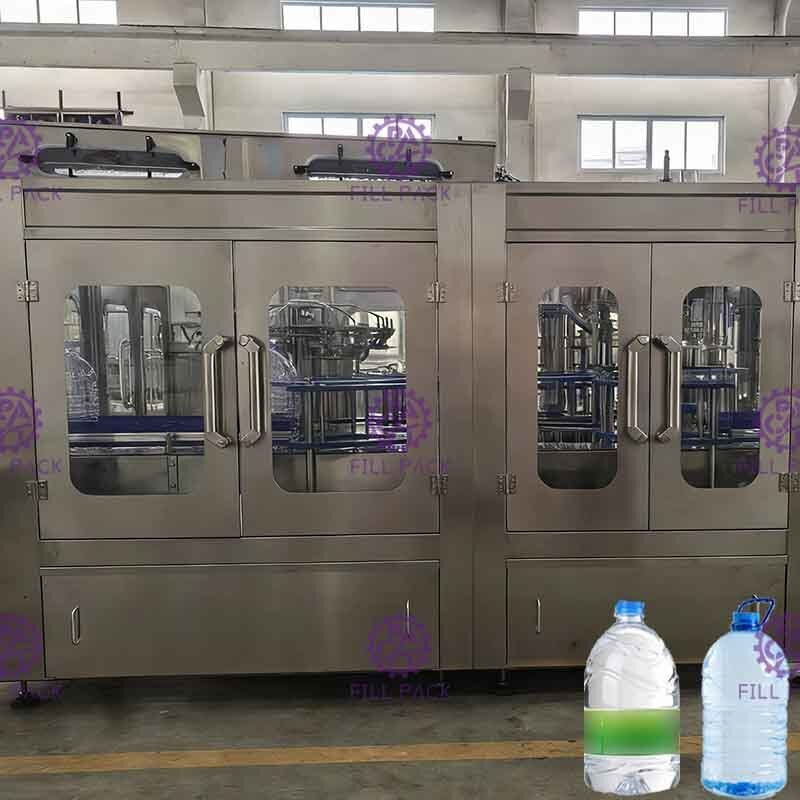

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinsing Filling Capping Equipment / Plant / Machine / System / Line

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinsing Filling Capping Equipment / Plant / Machine / System / Line

    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinsing Filling Capping Equipment / Plant / Machine / System / Line
    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinsing Filling Capping Equipment / Plant / Machine / System / Line
  • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinsing Filling Capping Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF12-12-4B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Gas Pressure: 0.6 Mpa Fuction: Washing Filling Capping 3 In 1
    Suitable Bottle Size: 3-10L PET Bottle Brand Name: FillPack
    Packaging: Wooden Case Dimension(L*W*H): 3860*3150*2400 Mm

    Decription of CGF12-12-4B Pure drinking water PET bottle 3 in 1 bottling line for 3-10L bottle


    Brief introduction:
    This series equipment is used in the production of non-carbonated drink, such as mineral water and purified water etc. Washing, filling and capping are integrated into one machine, it is suitable for the bottle whose size from 3L to 10L.



    Product Features:
    1, The suspending bottle-neck clamping design make the bottle stable during the high-speed.
    2, moving conditions. By changing a few parts, it can meet the need of production of different types
    of bottles easily.
    3, The new generation of stainless steel grab is adopted and the grabs have no contact with the area
    4, above the bottle£§screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
    5, The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
    6, Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.
    7, Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
    8, All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron etc.


    Parameter
    Model CGF12-12-4B
    Capacity(B/H)(330ml) 1000-1500(3L)
    Bottle size Neck:φ20-50mm;Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 2
    Dripping station 2
    Filling precision <+5MM
    Air pressure 0.4Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 4
    Weight(kg) 2500
    Dimension(L*W*H)(mm) 2400*2100* 2100/2450mm
    Electrical apparatus
    Transducer FuLing-Taiwan FL-2.2K
    Touch screen Easyview-TaiWan MT6070
    PLC Mitsubishi FXIS-20MR
    Stabilized voltage supply MingWei-TaiWan S-35-24
    Contactor Delixi CJX2-0910
    Approach switch Autonics PR18-8DN
    Air switch Delixi 3P-D20
        IP-C3

    Optional RO water treatment machines in the water filling line
    Model Capacity(liter per hour)
    RO-1000 1000LPH
    RO-3000 3000LPH
    RO-5000 5000LPH
    RO-6000 6000LPH
    RO-10000 10000LPH
    Optional Washing-filling-capping machines in the filling line(3-in-1 and Linear type)
    3in1(0-2L bottle) Capacity(bottle per hour) 3in1(3-10L bottle) Capacity Linear type(3-10L bottle) Capacity
    CGF8-8-3 2000-3000BPH CGF8-8-3B 0-1000 CGF4-4-1 500BPH
    CGF12-12-4 3000-4000BPH CGF12-12-4B 0-1500 CGF6-61 750BPH
    CGF18-18-6 6000-7000BPH CGF18-18-6B 0-2500 CGF8-8-1 1000BPH
    CGF24-24-8 11000-12000BPH CGF24-24-8B 0-3500 CGF10-10-1 1500BPH
    CGF32-32-10 14000-15000BPH CGF32-32-10B 0-5000 CGF12-12-1 2000BPH
    CGF40-40-10 19000-20000BPH
    CGF50-50-12 23000-24000BPH

    More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
