Centralization Beverage Bottling Equipment  System 8000BPH

Centralization Beverage Bottling Equipment System 8000BPH

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: RCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Color: Silver Gray Electrical Brand: Mitsubishi, OMRON, SIEMENS
Capacity: 6000-8000BPH Cap Style: Metal Caps
Suitable Bottle Size: 0.3-2L Glass Bottle Control: PLC Control With Touch Screen
High Light:

centralization beverage bottling equipment

,

8000BPH beverage bottling equipment

,

8000BPH beverage bottling system

Product Description

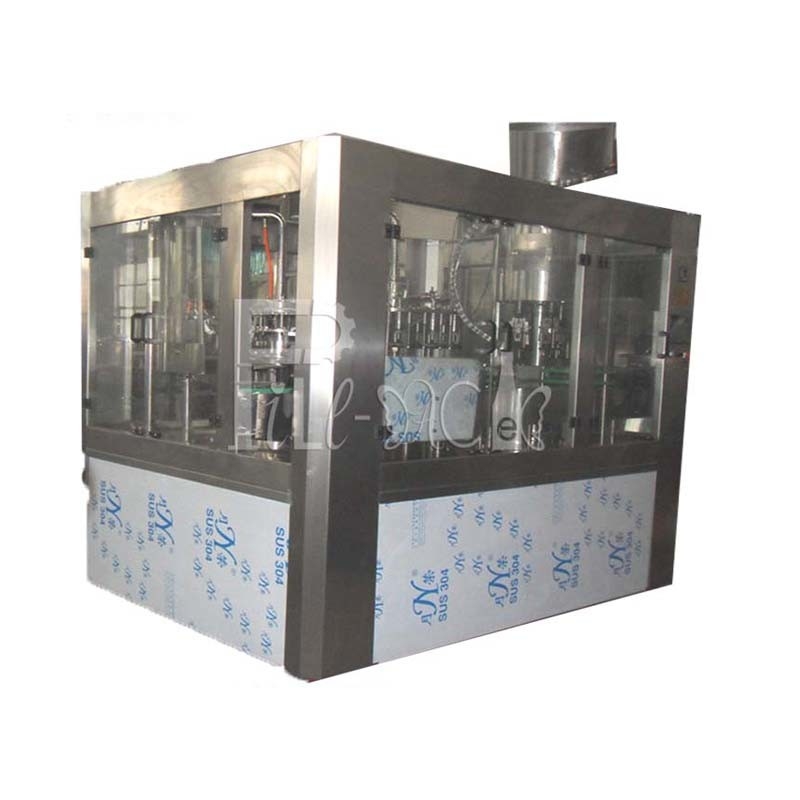

centralization device 3 in 1 beverage bottling equipment / system / unit RCGF12-12-4



The washing filling till capping including bottles, caps should be put in class 100 aseptic room.
W
e consider machine anti-corrosion facility, and use anti-corrosion materials. The special designed pipe line will take consideration about connection position and curving degree to prevent dead angel.
The 3 in 1 beverage bottling equipment is integrated with washing, filling and capping functions. It is suitable for hot filling to juice, milk and tea drink. And it will be suitable for production of non-soda drink of mineral-pure water after change some parts in packed in glass bottles. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. And it is applied with backflow system, air back flow together with liquid back flow, do not touch with material, reduce second pollution.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole 3 in 1 beverage bottling equipment is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
The 3 in 1 beverage bottling equipment can me
et standard of hot filling under 85℃,no dirty corner with pipes and pump, and set with CIP hole.

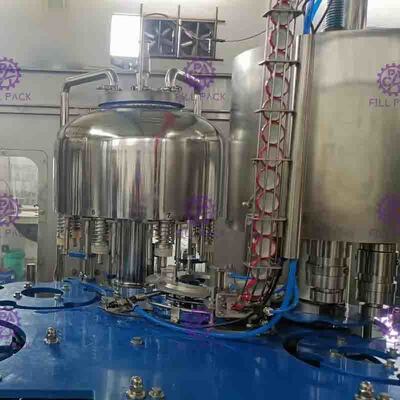

Bottle In-feed

1) The clamp heads use special design clamp head for the glass bottle
2) The convey chain used stainless steel 304 material for long time use.

Centralization Beverage Bottling Equipment  System 8000BPH 0

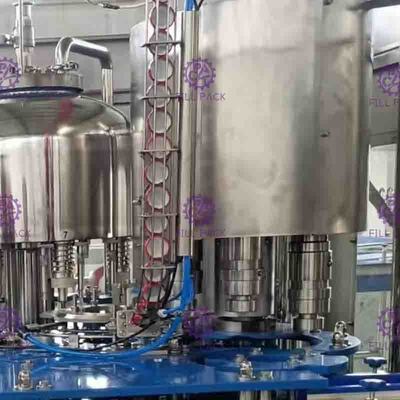

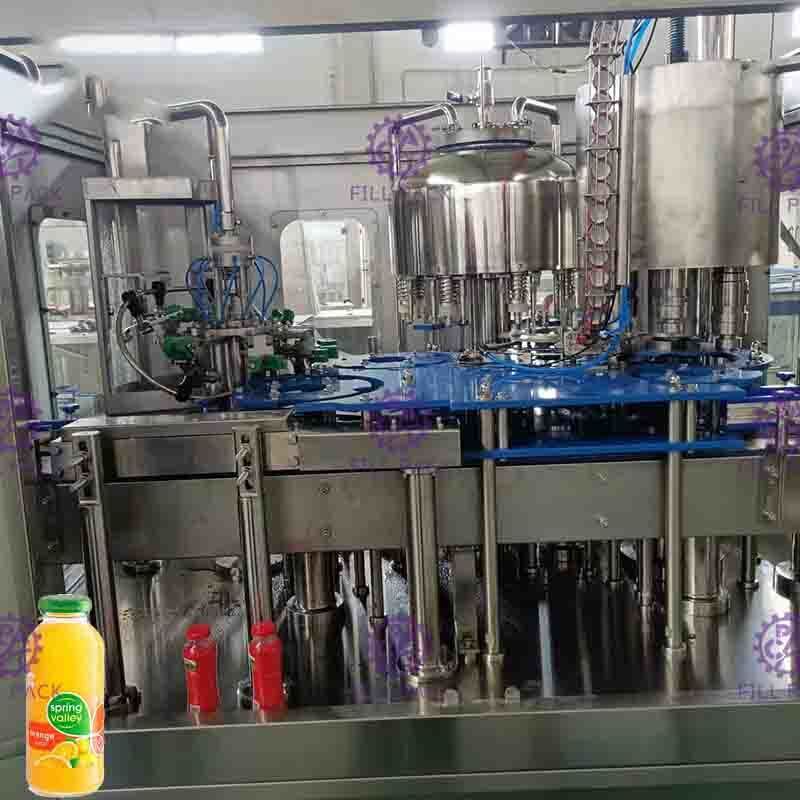

Bottle Washing machine

Centralization Beverage Bottling Equipment  System 8000BPH 1

1) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
2) The rinser is driven by driving system positioned inside machine frame via gear transmission.
3) Rinser using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the side wall and bottom to make the bottle clean.

Centralization Beverage Bottling Equipment  System 8000BPH 2

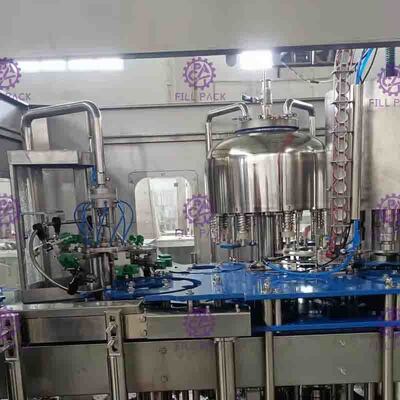

Filling part

1) The liquid tank and all values are made of SUS304
2) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
3) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.
4) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
5) The motivation of the filler is derived from the driven system in the framework and passed by gear.
6) The fake cup design will make easy CIP cleaning;

Centralization Beverage Bottling Equipment  System 8000BPH 3
