Glass Bottle 0-2L Automatic Fruit Juice Beverage Hot Filling Machine Washing Filling Capping Line
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE/ISO9001 |
| Model Number: | QS-12,RG-12,FXZ-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 16350USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Machinery Capacity: | 1500BPH | Application: | Juice Hot Filling |
|---|---|---|---|
| Bottle Type: | Glass Bottle | Applicable Bottle: | D=50~ 100mm,H=160~320mm |
| Voltage: | 220V/380V | Filling Temperature: | 65-80℃ |
| Dimension(L*W*H): | 3280*1100*2500MM | Weight: | 2050KG |
| High Light: | 1500BPH Beverage Hot Filling Machine,ISO9001 Fruit Juice Packaging Machine,Hot Juice Washing Filling Capping Line |
||
Product Description

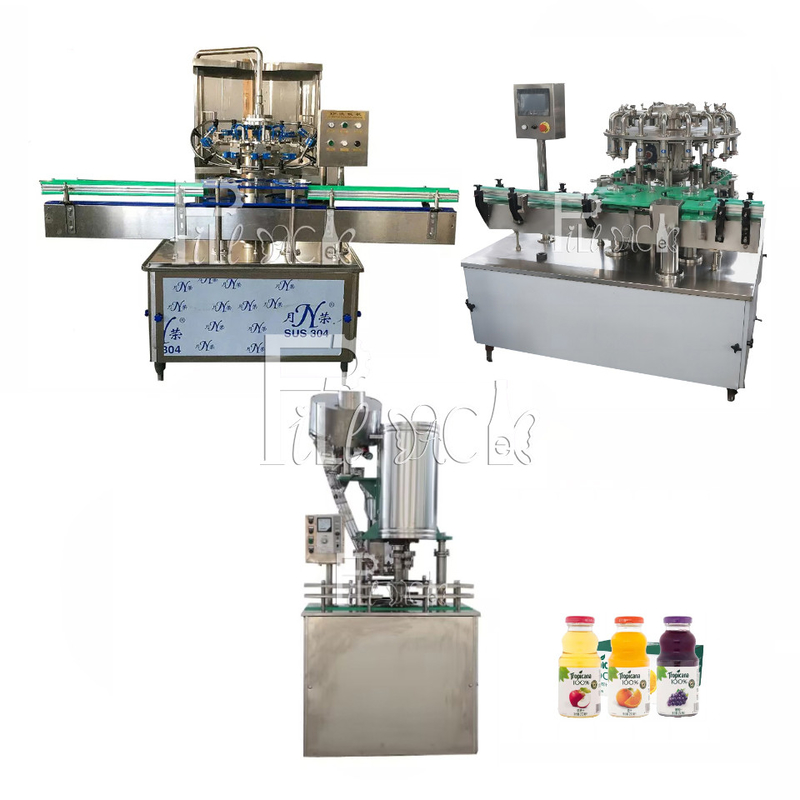

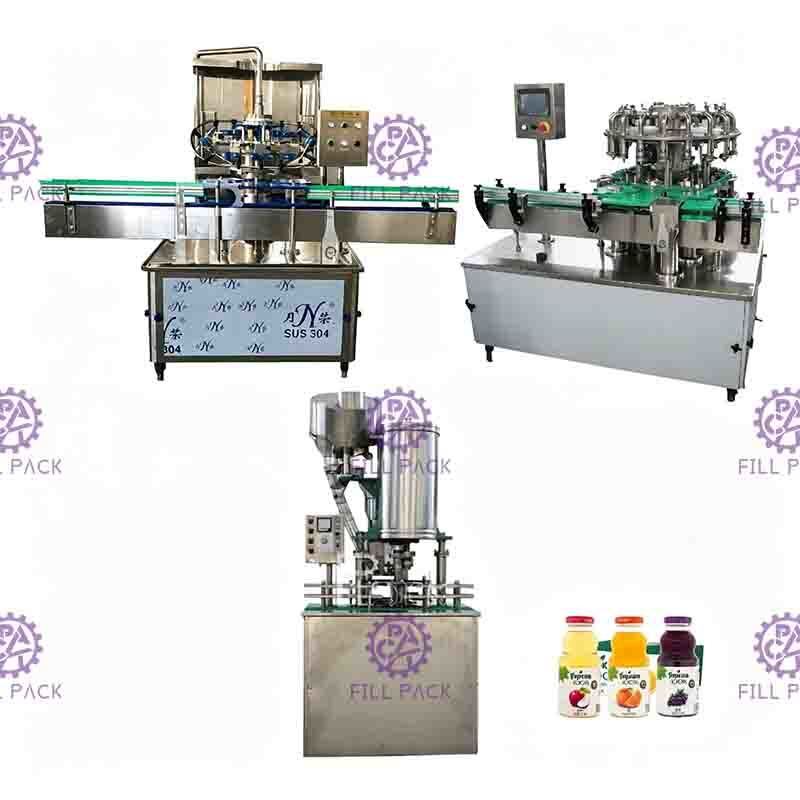

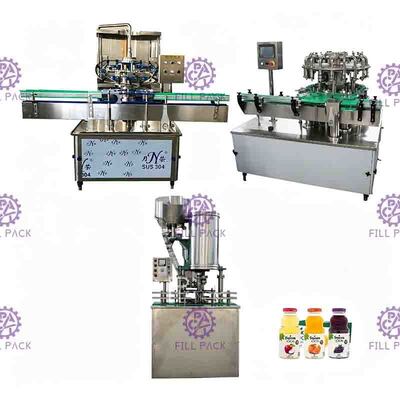

1500BPH 0-2L Fully Automatic Glass Bottle Fruit Juice Beverage Hot Filling Machine Washing Filling Capping Line Plant with TWIST OFF Screw Cap

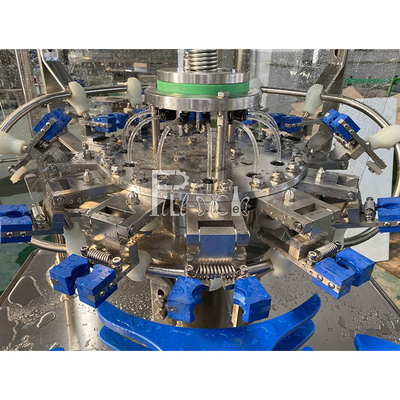

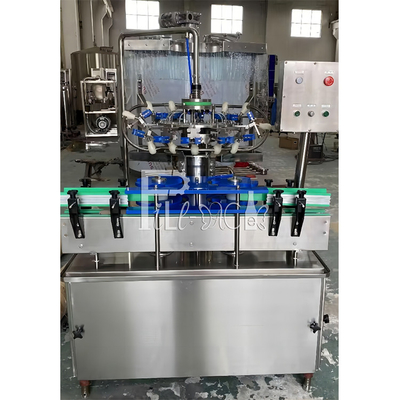

Rotary bottle washer
Principle:

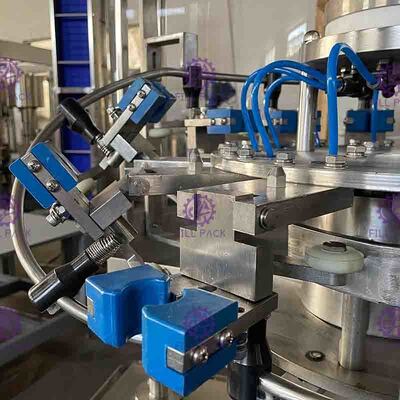

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.
Parameters:
Rising heads: 12 pcs
Capacity: 0-3000BPH (each bottle rinsing time 4s)
Power: 0.92KW
Dimension: 1050*1050*1900mm
Weight: 450KG
Applicable bottle: D∮50-100mm,H 50-350mm

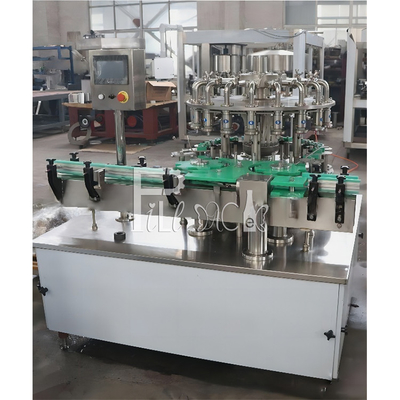

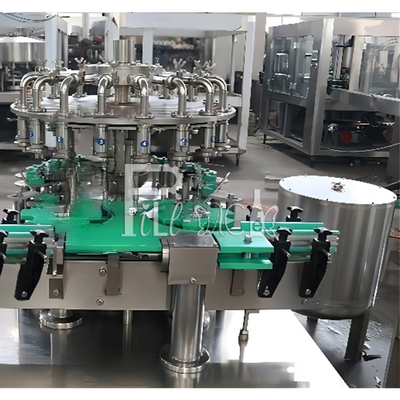

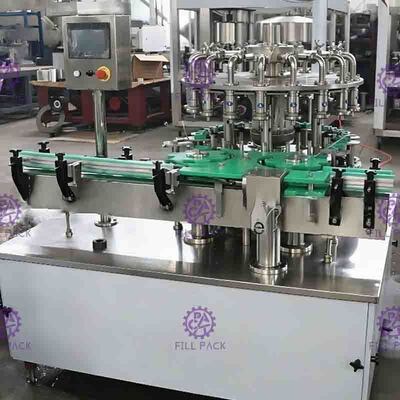

Hot Filling Part
| Model : | RG -12 |
| Production Capacity: | 2000b/h |
| Bottle /standard: | PET bottle |
| Applicable bottle: | D=Ø50~ Ø100mm,H=160~320mm |
| Filling Temperature | 65-80 ℃ |
| Power: | 1.85kw |
| Overall Dimensions: | 1100*1100*1800mm |
| Weight : |
550KG
|

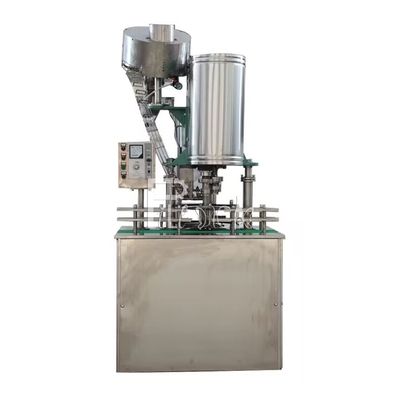

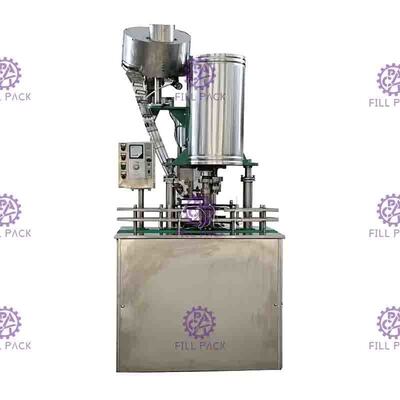

Backflow device
General specifications:
The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is with clockwise and anti clockwise rotation function, it will make sure the cap screw fitting well into neck screws .The whole machine is made from SUS304, long shelf time.
| Capacity | 0-2000BPH |
| Capping head | 1 PC |
| Applicable bottle | glass bottle |
| Applicable bottle height | 120mm-320mm |
| Applicable bottle diameter | Φ50mm-Φ100mm |
| Applicable cap | TWIST OFF Screw |
| Cap Bottle mouth diameter | Φ22mm-Φ32mm |
| Main motor power | 0.95KW |
| Dimension | 1130*900*2500mm |
| Weight | 800kg |
