1500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap

1500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE/ISO9001
Model Number: QS-12,RG-12,FXZR-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 16850USD
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Machinery Capacity: 1500BPH Application: Juice Hot Filling
Bottle Type: Glass Bottle Applicable Bottle: D=50~ 100mm,H=160~320mm
Voltage: 220V/380V Filling Temperature: 65-80℃
Dimension(L*W*H): 3150*1100*2300MM Weight: 2200 KG
High Light:

Fruit Juice Bottling Machine 1500BPH

,

1500BPH Hot Juice Filling Machine

,

Glass bottle Juice Filling Equipment

Product Description

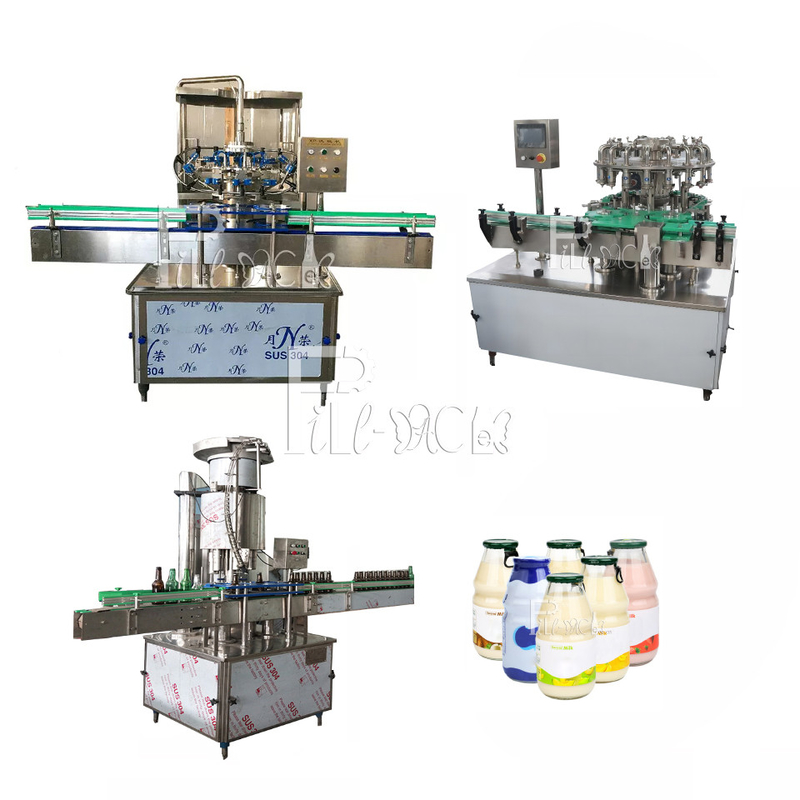

1500BPH 0-2L Automatic Glass Bottle Fruit Juice Beverage Hot Filling Machine Production Line Plant With Pull Ring Cap

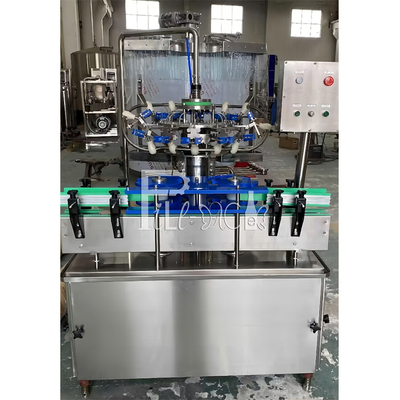

Rotary bottle washer

Principle:

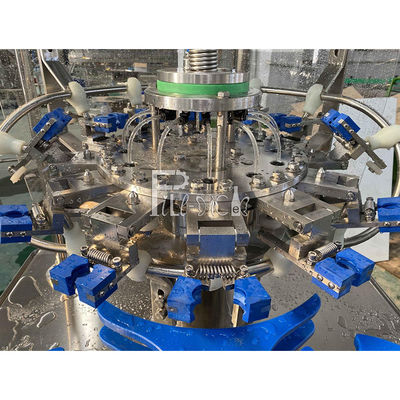

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

Parameters:

Rising heads: 12 pcs

Capacity: 0-3000BPH (each bottle rinsing time 4s)

Power: 0.92KW

Dimension: 1050*1050*1900mm

Weight: 450KG

Applicable bottle: D∮50-100mm,H 50-350mm

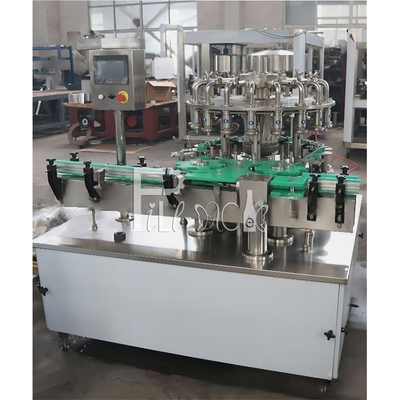

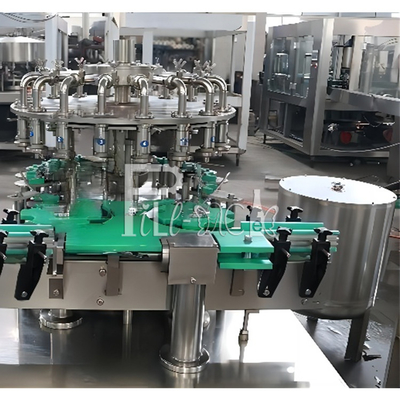

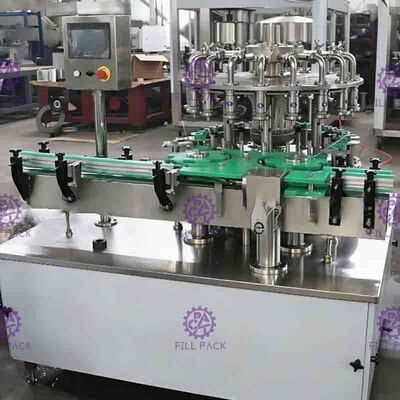

Hot Filling Part

1)This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling hot temperature drink.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitive. The filler is the ideal choice for drink factories of small and middle size.
2)The bottles will be taken into filler by conveyor, the dia plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop.
3)The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes. The filling valve is set with CIP rinsing cups;
Model : RG -12
Production Capacity: 2000b/h
Bottle /standard: PET bottle
Applicable bottle: D=Ø50~ Ø100mm,H=160~320mm
Filling Temperature 65-80 ℃
Power: 1.85kw
Overall Dimensions: 1100*1100*1800mm
Weight :
550KG



Backflow device

1500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap 0

Principle:
The juice enters the filling machine to start filling after reaching the technological requirements through the UHT (Ultra High Temperature Instantaneous Sterilization) system. The function of the backflow device is to ensure that the filling volume of each bottle is on a uniform level. If there is a liquid level that exceeds the specified level, the backflow pump will start vacuuming and extract the excess liquid into the front UHT sterilization tank for high-temperature sterilization,then back to the filling link.
Parameters:
Backflow tank size:100L
Vacuum pump power:1.1KW
Backflow pump power:0.75KW

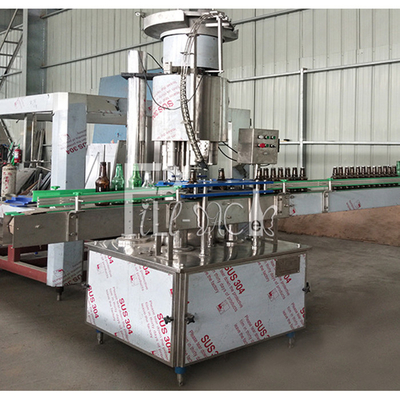

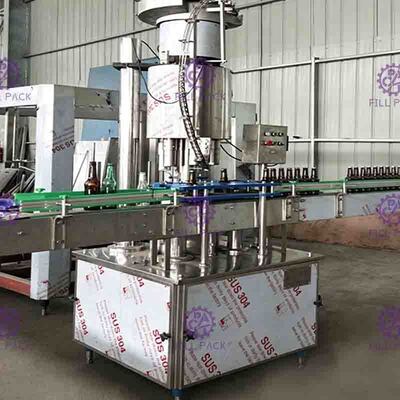

Capping Part:
The machine is sued for pull ring capping for glass bottles;The machine is set with bottle dia-plate for automatic bottle entrance; Workers put caps into cap loader, Oscillating coil will unscramble and load bottle automatically, with help of compressed air, caps will load correctly to capping head; By the main motor driven energy, the capping tube move up and down to finish the capping job; When one bottle capping finish, the spring in the capping tube will flick off the done bottle and start for a new one; Comparing with traditional capper, this one is using adjustable speed motor to control speed, and transmission part develop to upgrade speed also;The machine is produced with high quality SUS304, is with reasonable construction, easy for bottle change, easy for maintenance;
Parameters:
Capacity: 0-3000BPH
Capping head: 3 pcs
Capping tube stroke: 58mm
Applicable bottle: glass bottle
Applicable cap: Pull ring cover
Main motor power:0.75KW
Cap sorter: 0.3KW
Suggested compressor: 0.6m3/min 0.7Mpa
Dimension: 1000*750*2300mm
Weight: 950kg
Construction and function:
1, Frame desk, to support;
2, Cap loader, to make disordered caps loading into cap loading rail in order, and make sure cap mouth face to floor, inversed caps will be eliminated;
3, Cap sealing system, to sealing automatically when cap loading on bottle mouth;
4, Conveyor rail;
Detail:

1500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap 11500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap 2



Application:

1500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap 31500BPH 0-2L Fruit Juice Beverage Hot Filling Machine for Glass Bottle Pull Ring Cap 4
