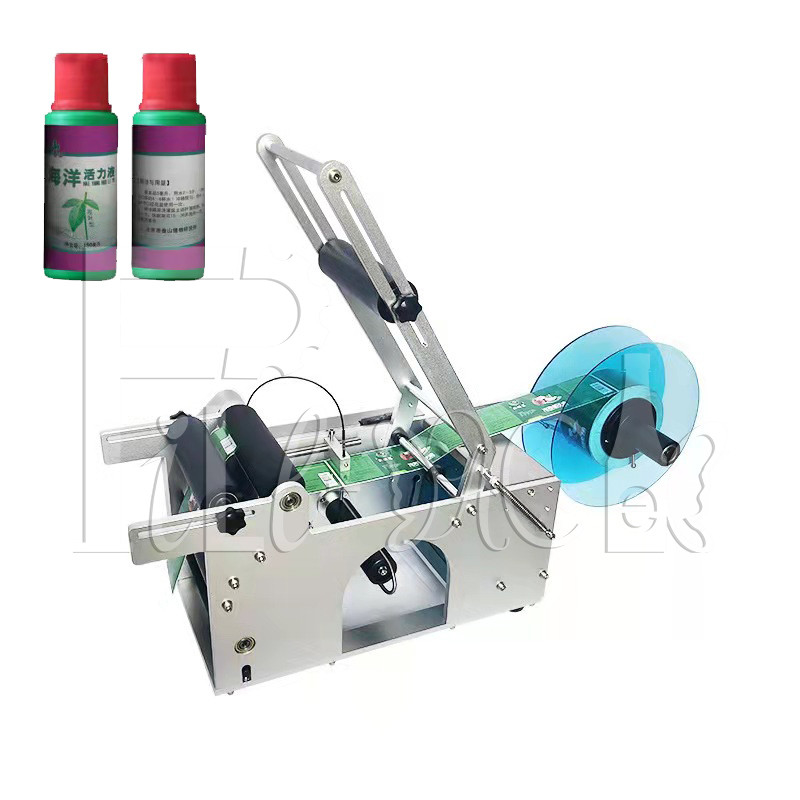

Adhesive Round Bottle Labeling Machine Semi Automatic Bottle Labeler
Product Details:
| Place of Origin: | China |
| Brand Name: | FILLPACK |
| Certification: | ce |
| Model Number: | LB-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sets |
|---|---|
| Price: | 300USD |
| Packaging Details: | wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | MoneyGram, D/P, D/A, L/C, T/T |
| Supply Ability: | 30SETS PER MONTH |
|
Detail Information |
|||
| Model: | LB-50 | Capacity: | 20-50PCS PER MIN |
|---|---|---|---|
| Applicable Power: | 220V 50/60HZ | Applicable Label: | Self-adhesive Labels, Adhesive Film, Electronic Monitoring Code, Bar Code And So On. |
| Dimension: | 600*300*400mm | Suitable Bottle Diameter: | φ20mm-120mm |
| High Light: | Semi Auto Round Bottle Labeling Machine,Semi Automatic Bottle Labeler,Round Bottle Label Applicator |
||
Product Description
Principle:
Worker load bottles manually on bottle loading position, then press labeling rack down to bottle
surface, then labeling roll will rotate and leave the label to bottle surface, labeling, pressing can be
done at the same time; High labeling quality, no bubble, no decline; Machine have a range to be
adjusted for different size bottle.
Characters:
■ Applicable for glass bottle and PET bottles in round shape. Machine need special order if the bottle
is in particular shapes
■ Code printer can be added if needParameters:
| Model | LB-50 |
| Voltage | AC 220V 50HZ / 110V 60HZ |
| Power | 120-200W |
| Label speed | 25-50 Pcs/min |
| Label accuracy | ±1mm |
| Label roller inner diameter | ≥ φ75mm |
| Max label roller out diameter | ≤φ250mm |
| Suitable bottle diameter | φ20mm-120mm |
| Max size of label | W150mm*L230mm |
| Machine size | 600*300*400mm |
| Total weight | 26kg |
Details
 |
|
|

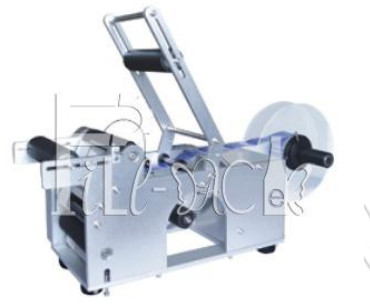

LB-50 without code printer
|

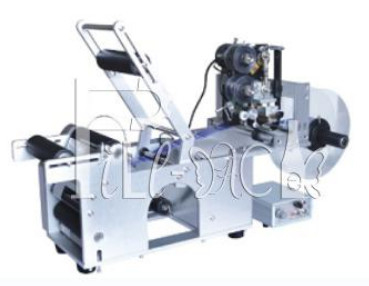

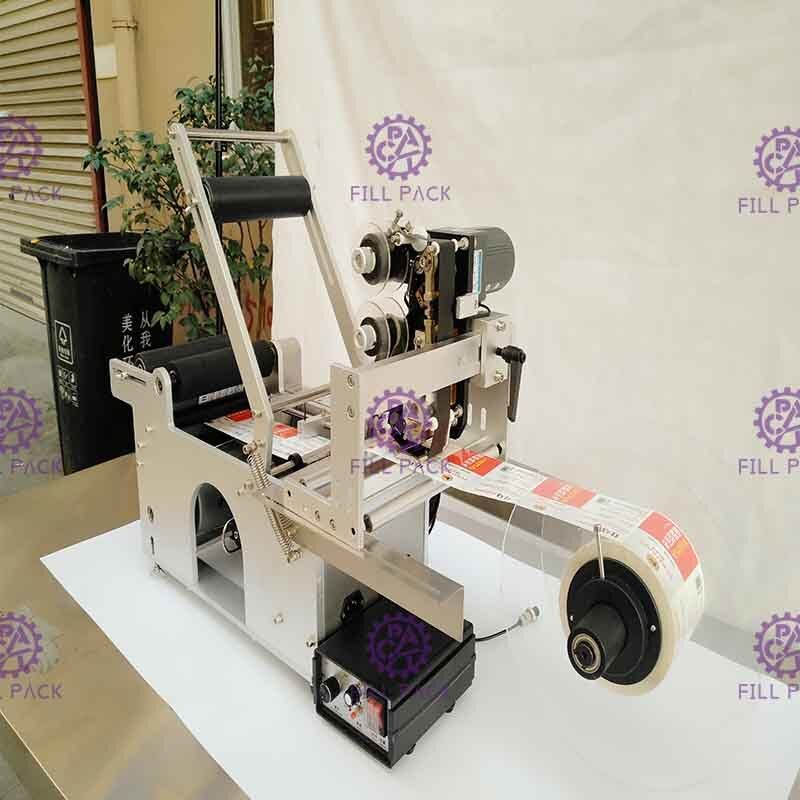

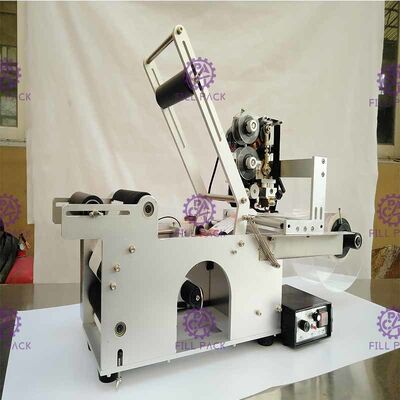

LB-50D with code printer
|
|
|
|
Bottle Loading Position
|
Labeling Roll
|
Want to Know more details about this product
