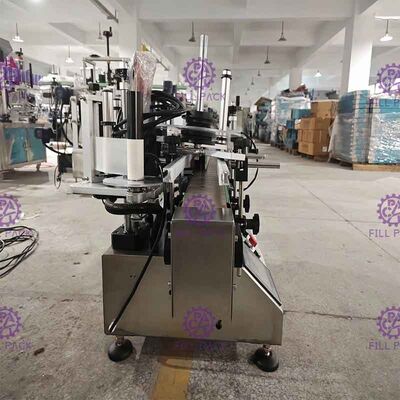

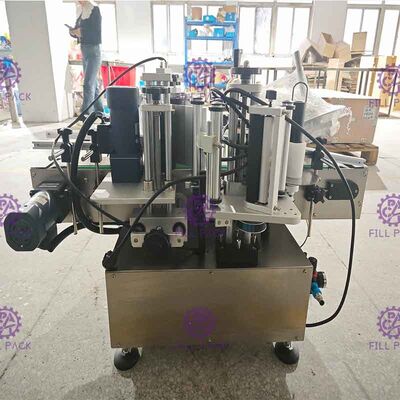

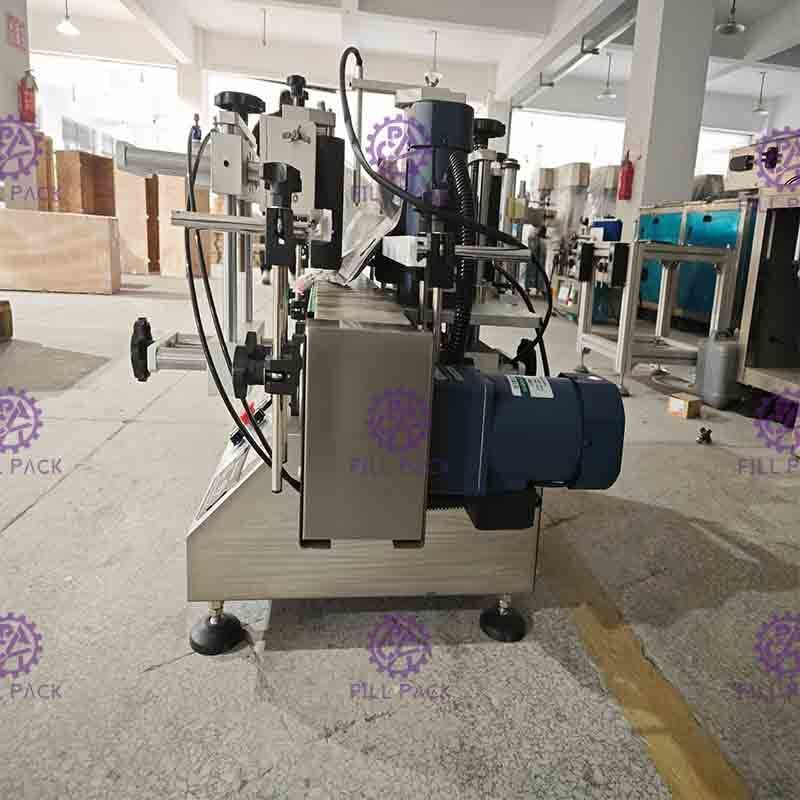

ISO9001 Table Type Sticker Labeling Machine round Bottles Label Maker Machine
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILL PACK |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | KP-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $1600/set |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 15 Sets Per Months |
|
Detail Information |
|||
| Dimension Of Applicable Label:: | 15≤width≤150mm,length≥10mm | Labeling Speed:: | 20-200pcs/min |
|---|---|---|---|
| Label: | Adhesive | Side: | Single Side |
| Applicable Bottle:: | Round Bottle | Dimension Of Applicable Bottle: | Width≥20mm,length≥20mm,20≤height≤350mm |
| High Light: | ISO9001 Automatic Sticker Labeling Machine,Adhesive Sticker Labeling Machine,1000W Automatic Bottle Labeling Machine |
||
Product Description

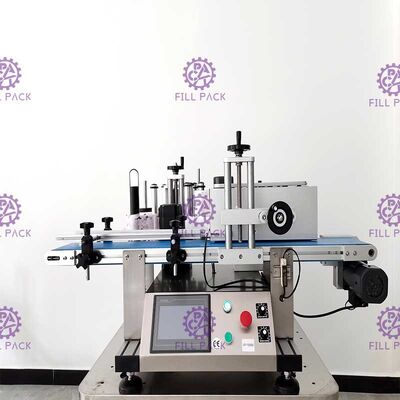

Table type sticker labeling machine/ label maker machine round bottles
Equipment composition:
Electrical cabinet, Conveyor, Roll label device, Brush label device, labeling engine, Operation system and control system;
Equipment function characteristics:
(1) Control system:PLC control system, with high stable operation and extremely low failure rate;
(2) Operation system:Touch screen, with Chinese and English language, rich with help function and fault display function,easy operation;
(3) Check system:Check label and bottle sensor, Desktop check label position, stable and convenient don’t have much higher requirement for the worker skill;
(4) Alarm function : such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
(5) Machine Material:The machine and spare parts use material stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
Working process:
1 Worker put bottle on conveyor and delivery to labeling engine one by one;
2 When sensor check bottle, send signal to PLC, PLC received the signal deal with information first, then output signal to servo motor driver, driven by the drive motor send label.
3 The brush label device past label on bottle one side first, then bottle rolling around in the roll label device, brush label on bottle body for around, labeling finish.
4. Technical parameter:
| Model | KP-40 |
| Accuracy | ±1mm |
| Speed | 20-200pcs/min(according to the size of the bottle and the length of the label ) |
| Label Height | 15-150mm |
| Label Length | 25-300mm |
| Bottle diameter | 20-140mm |
| Accuracy | ± 1mm (according to the bottle) |
| Label Roll | 75--250mm |
| Power | AC110V/220V 50/60HZ 1000W |
| Dimension | 128*80*80cm |
| 180kg |
