Pure Drinkable Water Reverse Osmosis Purifying Machine

Pure Drinkable Water Reverse Osmosis Purifying Machine

Product Details:

Place of Origin: ZhangJiaGang City, JiangSu Province, China
Brand Name: FillPack
Certification: CE,ISO
Model Number: RO-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case pacakge
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 50 sets/month
Get Best Price Contact Now

Detail Information

Control: PLC Control Operated Valve: Manual Operated Valve
Capacity: 2000LPH Function:: Producing Fresh Water
Material: Plywood Case,Stainless Steel 304,EPDM,Anti-corrosion Carbon Steel Type: RO,Salt Water Treatment Machine,Tube Type,Intergrative Or Civil Construction
High Light:

PLC Control Water Purifying Machine

,

Reverse Osmosis Water Filter System

,

Drinkable Water Purifying Machine

Product Description

Pure Drinkable Water Reverse Osmosis Purifying Machine

Pure Drinking / Drinkable Water RO/ Reverse Osmosis Purifying Equipment / Plant / Machine / System / Line



Working process of water ro system:

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

Pure Drinkable Water Reverse Osmosis Purifying Machine 0
2000LPH monoblock RO system
Parameters
Items
Name
Specifications and model
Material
Brand&Origin
Unit
Qty.
I
Raw water lifting unit





1
Level controller
ST-70AB
assembly
PRADAR
suit
1
2
Raw water pump
CDL4-12/2.2kw
SUS304
NanFang
set
1
II
Multimedium filter

assembly
FILLPACK


1
Multimedium filter tank
Φ500*1700MM
FRP
FILLPACK
set
1
2
Central tube, Up and below distribution
Matching
ABS
RUNXIN
suit
1
3

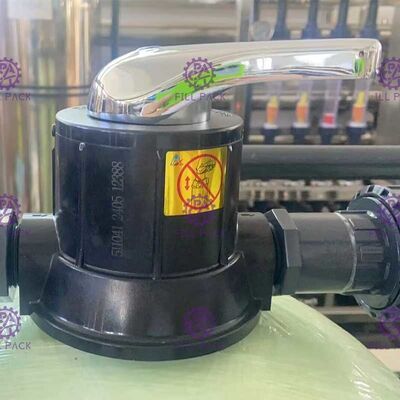

Manual operation valve
TMF56D
assembly
RUNXIN
set
1
4
Quartz sand
NO. 1-4, Filling height 1000mm
assembly
NingBo
KG
300
III
Active carbon filter

assembly
FILLPACK


1
Filter tank
Φ500*1700MM
FRP
FILLPACK
set
1
2
Central tube, Up and below distribution
Matching
ABS
RUNXIN
suit
1
3
Manual operation valve
TMF56D
assembly
RUNXIN
set
1
4
Activated Carbon
10-24MU
Shell
Chengde
kg
100
IV
Cartridge filter

assembly
FILLPACK


1
Cartridge filter
30INCH *5
SUS304
FILLPACK
suit
1
2
PP cotton
30INCH / 5 um
polypropylene
FILLPACK
pcs
5
5
Pressure gauge
0-0.1MPa
SUS304
YYST
pcs
1
VI
RO system





1
High pressure pump
CDL4-12/2.2kw
SUS304
NANFANG
set
1
2
RO pressure vessel
4040*2
SUS304
BONA
pcs
4
3
RO membrane
4040-HR
polyamide
LANXING
pcs
8
4
Water inlet solenoid valve
DN32/AC220V
BRASS
YONGCHUAN
pc
1
5
Washing solenoid valve
DN25/AC220V
BRASS
YONGCHUAN
pc
1
6
Pressure gauge
0-0.6MP/0-3MPA
SUS304
YYST
pcs
4
7
High low pressure switch
0.1-3MPA
SUS304
BD
pcs
1
8
Conductivity meter for produced water
CCT3320
assembly
CREATEC
suit
1
9
Flowmeter for produced water
Rotor type 20G
acrylic
YYST
pcs
1
10
Flowmeter for salinity water
Rotor type 20G
acrylic
YYST
pcs
1
11
Main frame of RO
L2700*W800*H1600MM
SUS304
FILLPACK
suit
1
VII
Connecting pipe





1
Tubing/fittings/valves
DN32/DN25/DN20, etc
UPVC/GB
XieYu/China
suit
1
VIII
Pure water tank





1
Level controller
ST-70AB
assembly
PRADAR
suit
1
IX
Electrical system





1
control cabinet
BD-4.0
SUS304
FILLPACK
suit
1
2
Programmer
CCT3320
matching
CREATEC
suit
1
3
Air switch
Matching
assembly
CHNT
suit
1
4
AC contactor
suit
2
5
Thermal relay
suit
2
6
Intermediate relay
suit
1
7
Button / switch
suit
1
8
wire
suit
1
9
accessories
suit
1

★What kind of water source do you use for filtering?

Pure Drinkable Water Reverse Osmosis Purifying Machine 1
River water
Pure Drinkable Water Reverse Osmosis Purifying Machine 2
Lake water
Pure Drinkable Water Reverse Osmosis Purifying Machine 3
Underground water
Pure Drinkable Water Reverse Osmosis Purifying Machine 4
Tap water
Pure Drinkable Water Reverse Osmosis Purifying Machine 5
Well water
Pure Drinkable Water Reverse Osmosis Purifying Machine 6
salty water
Consumables
Pure Drinkable Water Reverse Osmosis Purifying Machine 7
Ion exchange resin
It can replace calcium and magnesium ions in the water to soften the hard water
Pure Drinkable Water Reverse Osmosis Purifying Machine 8
Activated Carbon
It can further filter impurities in water and remove residual chlorine and odor
Pure Drinkable Water Reverse Osmosis Purifying Machine 9
Quartz sand
It can remove large particles of impurities in water
Pure Drinkable Water Reverse Osmosis Purifying Machine 10
Connecting tube
Stainless steel material, can be connected to the various parts of water treatment
Pure Drinkable Water Reverse Osmosis Purifying Machine 11
RO membrane
RO membrane pore size is small to nanometer scale, under certain pressure, water molecules can pass through the RO membrane, while
impurities such as inorganic salts, heavy metal ions, organics, colloids, bacteria, viruses in source water can not pass through
the RO membrane, so that the permeable pure water and the permeable concentrated water can be distinguished strictly.
Pure Drinkable Water Reverse Osmosis Purifying Machine 12
SUS RO filter shell
It has good corrosion resistance, heat resistance, low temperature strength and mechanical properties. It has good hot working properties such as stamping and bending, no heat treatment hardening and no magnetism
