Tea Drink Juice Filling Machine Industrial Soft Drink Bottling Equipment With SGS

Tea Drink Juice Filling Machine Industrial Soft Drink Bottling Equipment With SGS

Tea Drink Juice Filling Machine Industrial Soft Drink Bottling Equipment With SGS
Tea Drink Juice Filling Machine Industrial Soft Drink Bottling Equipment With SGS

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: YFRG12-12-4
Color: Silver Gray
Control: PLC Control With Touch Screen
Processing: Japan & Germany
Suitable Bottle Size: 0.3-2L PET Bottle
Cap Style: Plastic Screw Cap
Capacity: 6000-8000BPH
Electrical Brand: Mitsubishi, OMRON, SIEMENS
Warranty: 1 Year for Spare Parts

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 18000-45000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
High Light:

monoblock filling machine

,

high speed filling machine





Tea Drink Juice Filling Machine Industrial Soft Drink Bottling Equipment With SGS





Quick Detail:



Name: Tea Drink Juice Filling Machine Industrial Soft Drink Bottling Equipment With SGS

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 4000-5000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .





Description:

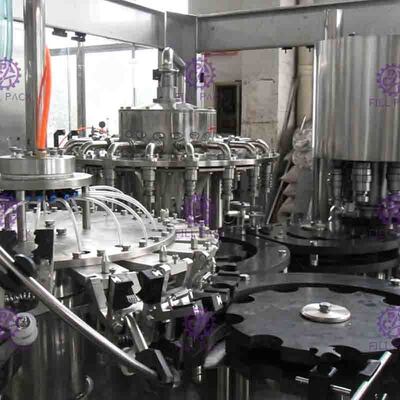

1) The tea drink juice filling machine industrial soft drink bottling equipment with SGS is used in production of non-soda drink of fruit juice, fruit wine, minerals and pure water packed in plastic bottles. Washing, filling and capping are integrated in one machine which is called 3 in 1 hot filling machine for concentrated juice.

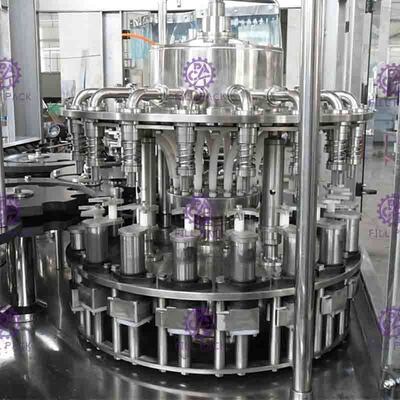

2) The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

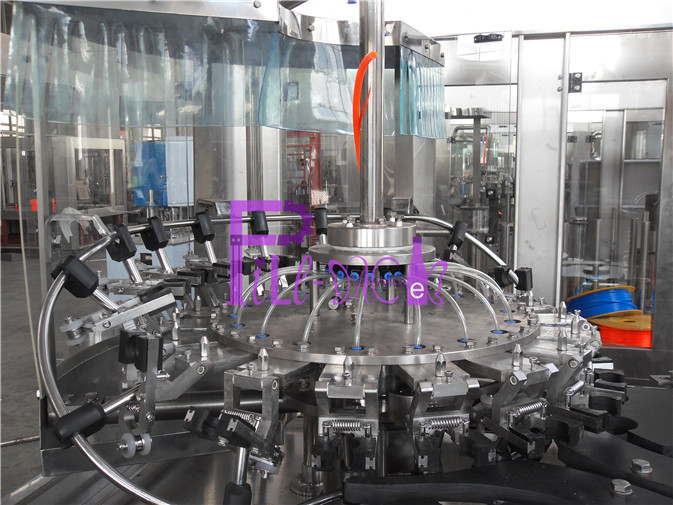

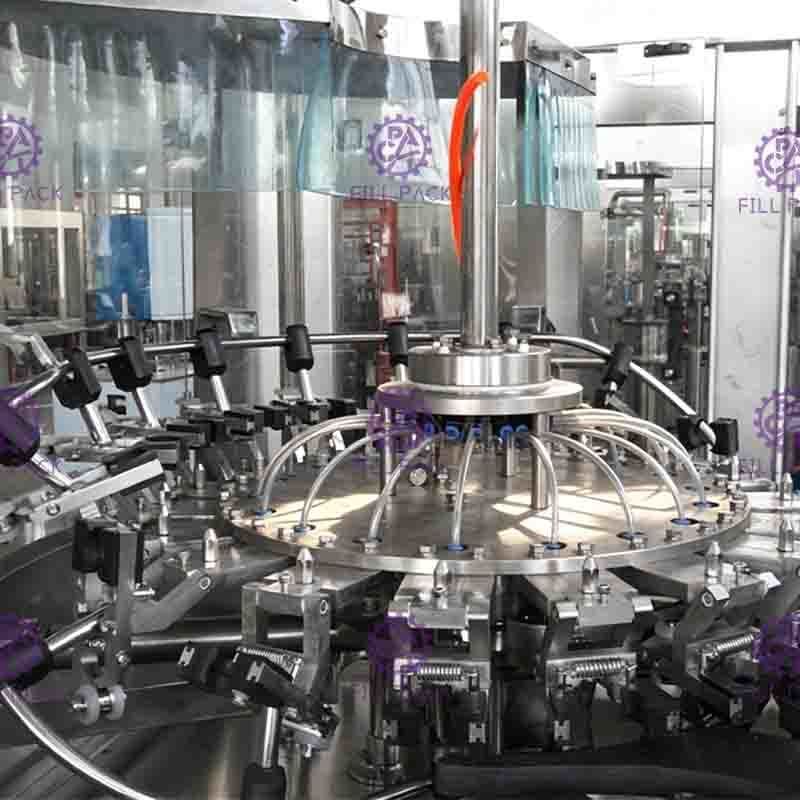

3) Spring cramps of the juice filling machine are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

4) The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

5) The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

6) The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

7) It is used for the plastic bottle juice processing, from the raw bottle coming across the machine, first the water wash the inner plastic bottle, then filling part, last the bottle capping part. At last the bottled fruit juice coming out.





Specifications:



Model YFRG12-12-4 YFRG18-18-6 YFRG24-24-8 YFRG32-32-10
Production B/H(600ml) 4000-5000 6000-8000 8000-12000 12000-15000
Bottle standard Neck:φ50-100mmHeight150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100











Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
