SUS304 Water Treatment System , Automatic Drinking Water Purifying Systems

SUS304 Water Treatment System , Automatic Drinking Water Purifying Systems

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: Ro-3000
Certification: CE, ISO
Voltage: Customised
Driven type: Electric
Condition: New
Gurantee time: 1 year

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case as machine need
Delivery Time: 20-25 days
Payment Terms: 30% T/T deposit, 70% before shipment
Supply Ability: 50 sets/month
Get Best Price Contact Now

Detail Information

High Light:

water ro system


water purifying systems

Product Description

SUS304 Water Treatment System , Automatic Drinking Water Purifying Systems



Quick Detail:


1. Capacity: 3000L/H

2. For pure drinking water

3. Main material: SUS304

4. Reverse osmosis system is applied





This drinking water treatment system contains all the machines to treat the raw water to good quality drinking water in normal water line.

Main parts:

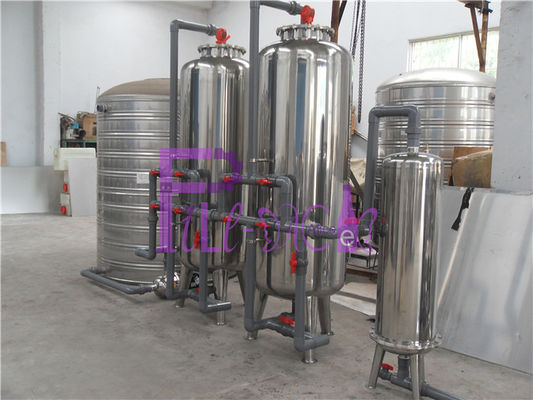

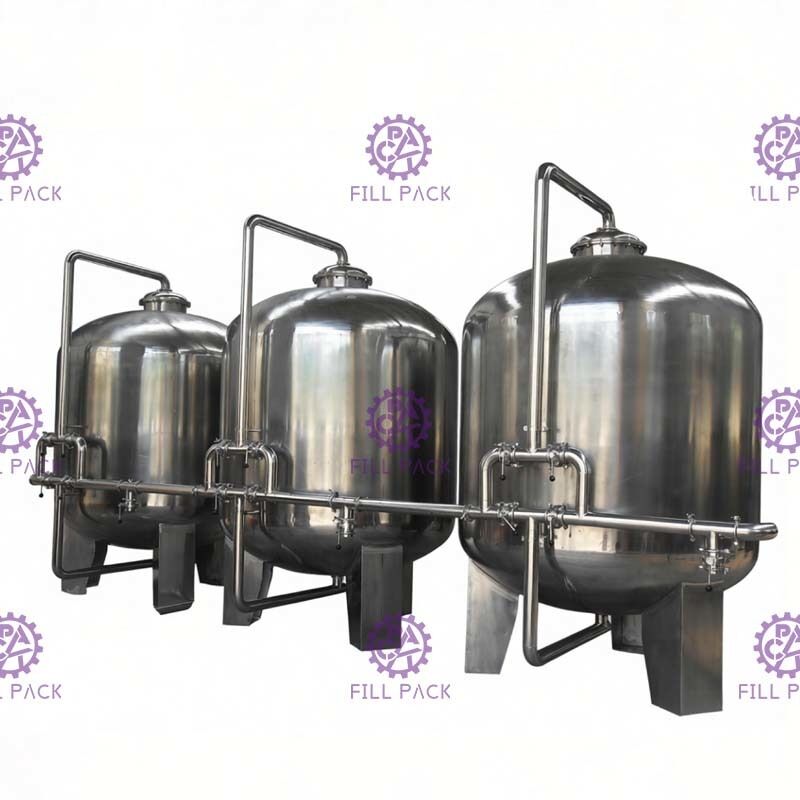

Raw water tank, water pump, quartz sand filter, active carbon filter, precision filter, Ro system, ozone sterilizer/UV sterilizer, pure water tank, connection pipe and valves.

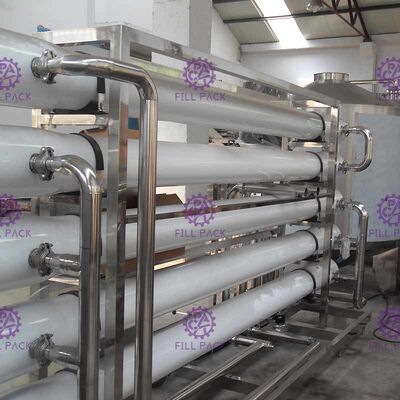

Ro system is more important in the line, ro membrane is the key part of whole RO, it will decide the system workable or not. The water passing RO can remove bacterial, organic substance and microorganism and so on.

No phase change will be generated in RO device during water purification. Water recovery rate is high, small in dimension, high automation.


Whole SUS304 rack, automation part apply AC contactor control, apply flow meter, pressure gauge and auto flush electrical magnetic valve, etc.

Protect device:Low pressure and high pressure protect switch is set before water entry and after water discharge. Booster pump and system will stop when water supply is not enough. Make cut off on booster pump when there is too much discharge pressure to avoid system running under pressure exceeding status.

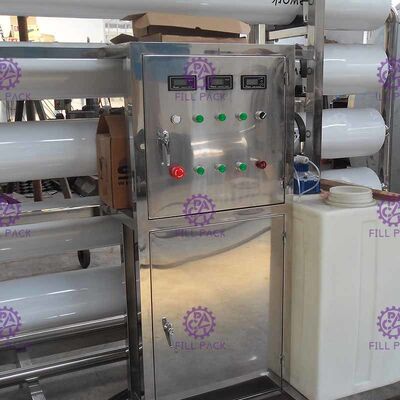

It is automatic system, interlock will be applied under auto model. Pretreatment is controlled automatically, original pump and ro unit is using integrate control. Control panel will work on system monitoring and parameter set up. Instruments and gauges are settled to show parameters. Interlock set up is good for safe running.





1. The machine is mainly used to treat the to river water, well water, spring water, lake water and city water to directly drinking water for home use, factory use, or packed in bottles, barrels, other containers for market selling.

2. It is used to remove the suspended solids, bacterial, organic substance and microorganism, plastic particles, microorganisms, chlorine,taste,some heavy metal ions and so on.

3. Easy operation and good drinking water quality.





Model RO-3000
Flow rate ≥6m3/h (25℃)
Recovery rate ≥50%
Design pressure 0.2-1.0Mpa
Operation automatic control, automatic flush
Membrane material RO membrane
Membrane qty 4PCS OF 8040
Power 3.15kw
Size 2200*800*1600mm
Weight 350kg














For more details, please feel free to contact me.



Competitive Advantage:


1. Our machine is with good quality and price, we can make the machine customized for you if need.

2. Our company has been established more than 15 years, we are a professional manufacturer in every kind of beverage production machine.

3. We have the certifications of ISO, CE and so on.

4. Our company machines are exported to many countries abroad every year.

5. We can offer free technician support and consultation to help you to order a new equipment and start a new company.

6. We can offer one year guarantee for the machine you ordered freely, forever technology supports in our machine and related machine.

7. W can send our technician to your country for machine commissioning and instruction conveniently.

8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.
