3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H

3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H

    • 3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H
    • 3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H
    • 3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H
    • 3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H
  • 3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: Ro-3000
    Certification: CE, ISO
    Voltage: Customised
    Driven type: Electric
    Condition: New
    Gurantee time: 1 year

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 20-25 days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description

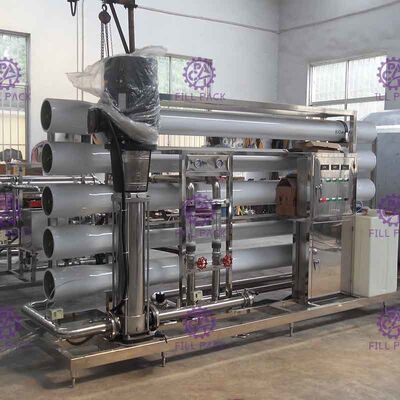

    3.15kw Electric Pure Water Ro System Reverse Osmosis Water Filter 3000L / H





    Quick Detail:



    1. Form raw water tank to pure water tank

    2. Capacity: 3000L / H

    3. Material: Stainless steel 304

    4. UPVC connection pipes





    Description:



    Main parts:

    1) Raw water tank

    2) Raw water pump

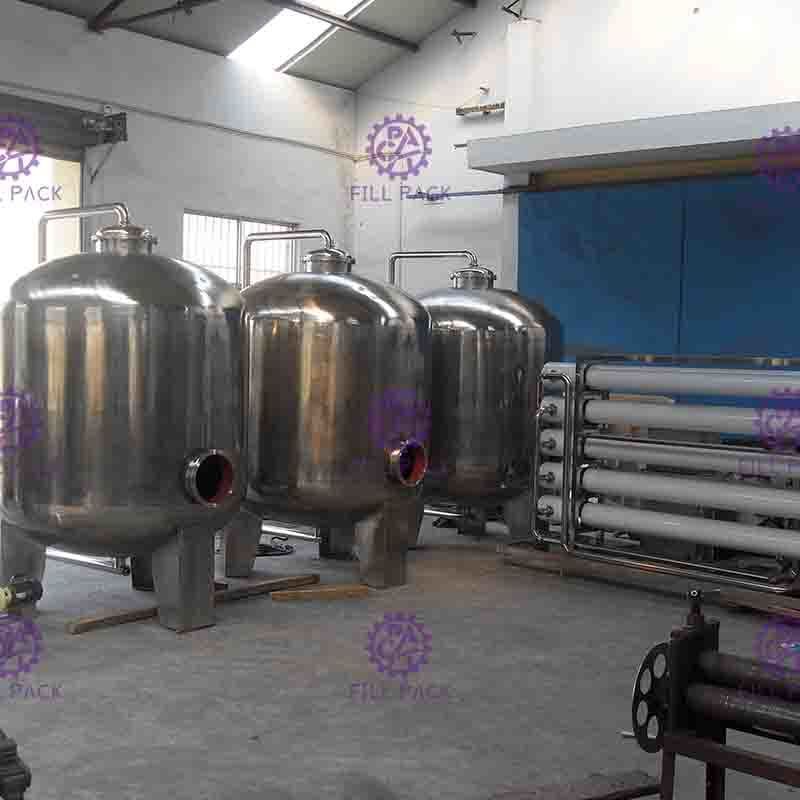

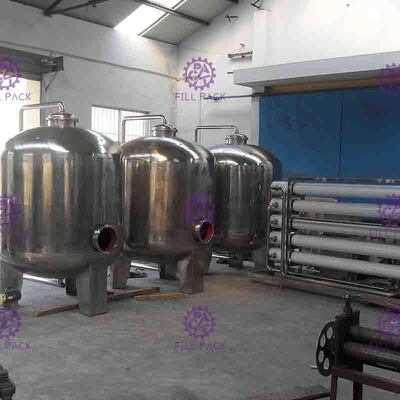

    3) Quartz sand filter

    4) Active carbon filter

    7) Precision filter

    7) Water buffer tank

    8) Ro system

    9) UV sterilizer

    10) Pure water storage tank





    The whole water treatment system is made of high quality of stainless steel 304 material, treat the raw water to be drinkable for water bottle filling packing, for beverage and food processing line.



    Ro system is more important in the line, ro membrane is the key part of whole RO, it will decide the system workable or not. The water passing RO can remove bacterial, organic substance and microorganism and so on.

    No phase change will be generated in RO device during water purification. Water recovery rate is high, small in dimension, high automation.



    Whole SUS304 rack, automation part apply AC contactor control, apply flow meter, pressure gauge and auto flush electrical magnetic valve, etc.

    Protect device:Low pressure and high pressure protect switch is set before water entry and after water discharge. Booster pump and system will stop when water supply is not enough. Make cut off on booster pump when there is too much discharge pressure to avoid system running under pressure exceeding status.

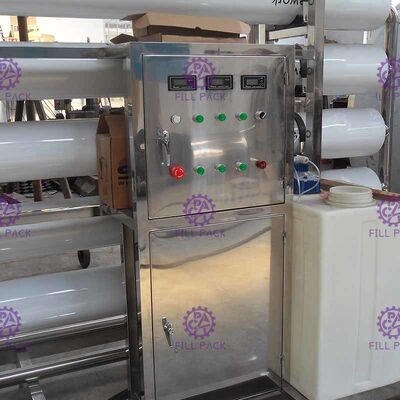

    It is automatic system, interlock will be applied under auto model. Pretreatment is controlled automatically, original pump and ro unit is using integrate control. Control panel will work on system monitoring and parameter set up. Instruments and gauges are settled to show parameters. Interlock set up is good for safe running.





    Applications:



    1. The machine is mainly used to treat the raw water to be drinkable for home use or factory use.

    2. It is used to remove the suspended solids, bacterial, organic substance and microorganism, plastic particles, microorganisms, chlorine,taste,some heavy metal ions and so on.





    Specifications:



    Model RO-3000
    Flow rate ≥6m3/h (25℃)
    Recovery rate ≥50%
    Design pressure 0.2-1.0Mpa
    Operation automatic control, automatic flush
    Membrane material RO membrane
    Membrane qty 4PCS OF 8040
    Power 3.15kw
    Size 2200*800*1600mm
    Weight 350kg



























    For more details, please feel free to contact me.
