|Place of Origin:||China,JiangSu,Zhangjiagang|
|Certification:||CE & ISO & TUV & SGS|
|Control:||PLC Control With Touch Screen|
|Processing:||Japan & Germany|
|Suitable Bottle Size:||0.3-2L PET Bottle|
|Cap Style:||Plastic Screw Cap|
|Electrical Brand:||Mitsubishi, OMRON, SIEMENS|
|Warranty:||1 Year for Spare Parts|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||30 Working Days After Receiving Your Deposit Payment|
|Payment Terms:||TT & L/C|
|Supply Ability:||20 sets/month|

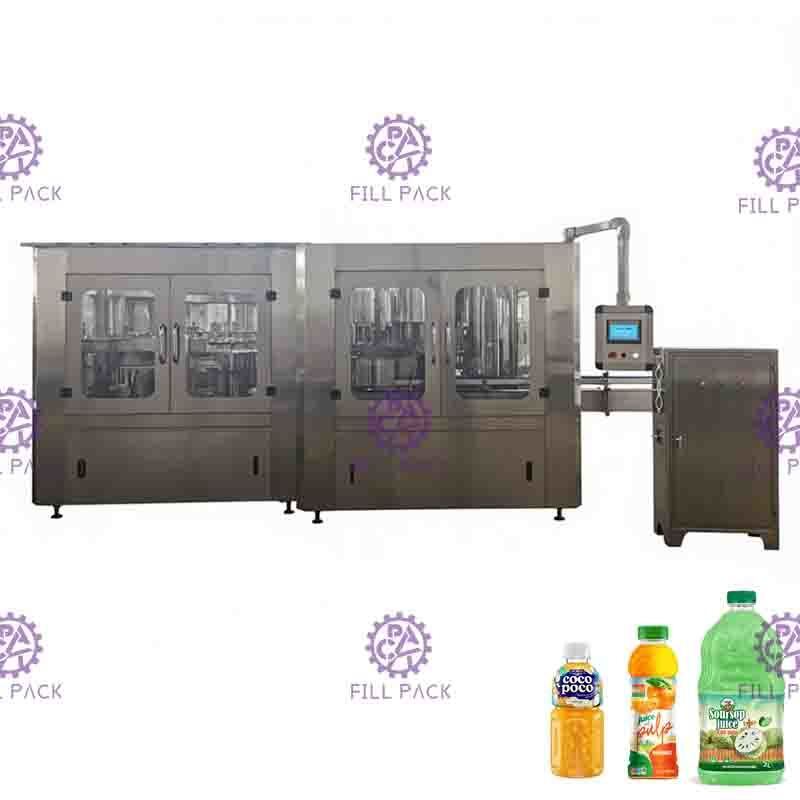

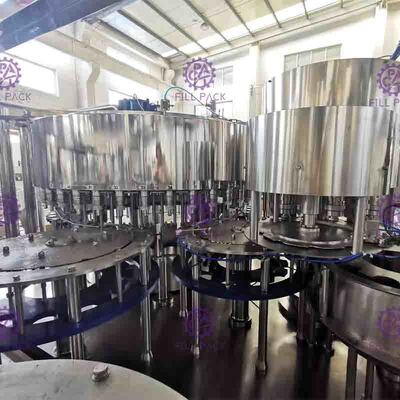

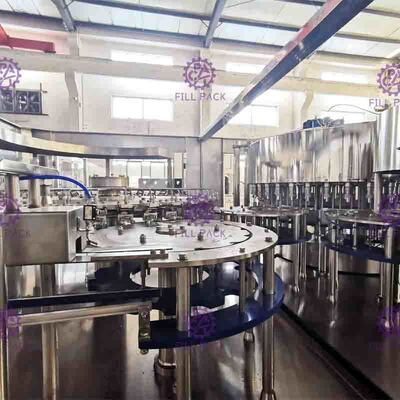

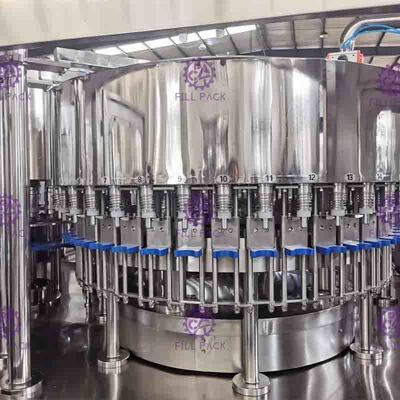

Aseptic Bottled Hot Filling Machine Stainless Steel Rotary Filling Machine
Name: Aseptic Bottled Juice Making Machine Stainless Steel Rotary Filling Machine
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: Glass bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
1. This series of machines integrate washing, filling and capping in one unit, can be used for different kinds of fruit juices and tea hot drink production. With only a few parts changed, the machine can also be used for mineral water filling.
2. The advanced micro-negative pressure filling technology is used in this machine to make the filling is quick, steady and accurate.
3. The beverage feedback system is well designed, the gas can be feed back separately, has no contact with beverage reduce the second time pollution and oxidation.
4. This machine can meet all the technical requirements for hot drink filling below 95°c. All filling valves and beverage conducting pipes can be cleaned. And the automatic washing interface CIP is designed in the machine before capping.
5. The RO water washing device is used to wash the bottle mouth to keep mould away from the bottle mouth. Magnetic torque is used for screw capping, the power of screw capping can be adjusted step by step.
6. It can use constant power to screw capping the plastic caps. The human machine interface is the touch screen. The most advanced PLC control and frequency changing technologies are used in this machine.
7. The cap feeding system can be controlled automatically, the filling temperature can be detected automatically. Alarm system for the over heat of the beverage. The filling will be stopped when the beverage temperature is too low and the beverage will flow back. When no bottles and caps are available, the machine will be in waiting state, and no caps will be applied.
|Bottle standard||Neck: φ50-100mm; Height: 150-320mm|
|Water pressure of washing bottle||0.18-0.25Mpa|
|Water consumption for washing bottle(kg/h)||1300||2000||3000||4000||5000|
|Dripping bottle position||3||5||8||10||15|
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
