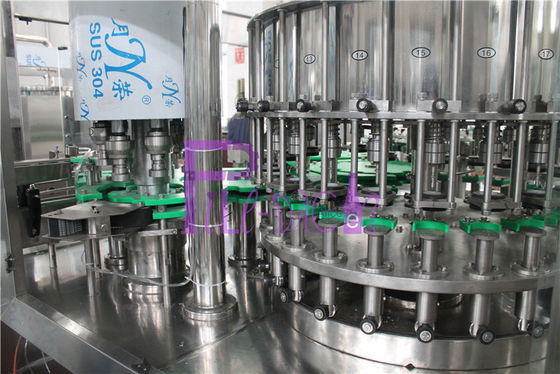

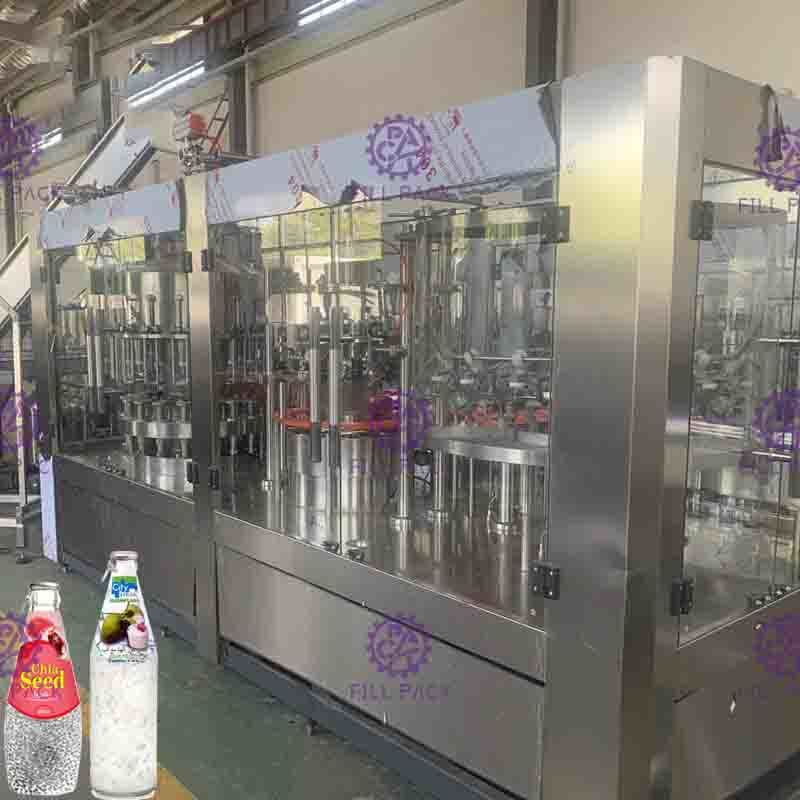

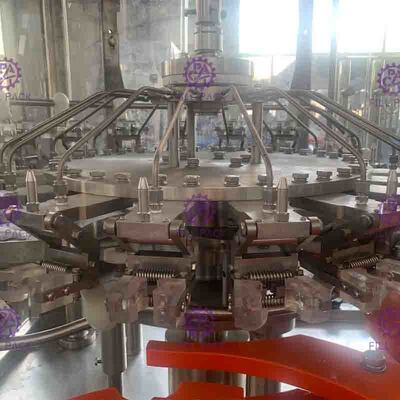

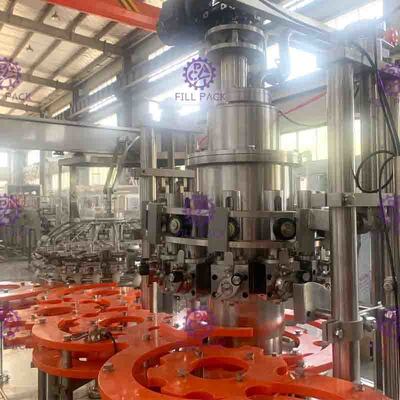

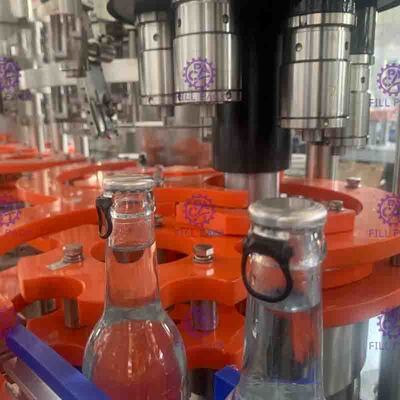

18 Head Automatic Juice Filling Machine Customized For Glass Bottles

18 Head Automatic Juice Filling Machine Customized For Glass Bottles

    • 18 Head Automatic Juice Filling Machine Customized For Glass Bottles
    • 18 Head Automatic Juice Filling Machine Customized For Glass Bottles
    • 18 Head Automatic Juice Filling Machine Customized For Glass Bottles
    • 18 Head Automatic Juice Filling Machine Customized For Glass Bottles
  • 18 Head Automatic Juice Filling Machine Customized For Glass Bottles

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: YFRG18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Main Material: Food Stage Stainless Steel Service: Engineers Available To Serve Overseas
    Control: PLC Control And Touch Screen Processing Type: Hot Juice Filling
    Condition: New Suitable Container: Glass Bottle

    18 Head Automatic Juice Filling Machine Customized For Glass Bottles





    Quick Detail:



    Name: 18 Head Automatic Juice Hot Filling Machine For Glass Bottles With High Speed

    Material: Food stage stainless steel
    Control: PLC & Touch screen control
    Capacity: 6000-8000bph
    Suitable Bottle: Glass bottle
    Bottle Volume: 0.3-2L
    Dimension: Can be customized
    Machine structure: Rinsing, filling and capping in 1 unit
    After-sales service : Engineers available to service machinery overseas.





    Introduction:



    1. This series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and

     fruit juice drink. The machine integrates washing, filling, capping together.

    2. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance

     is convenient.
    3. The automation is high. It is good equipment for choosing hot drink filling machine.
    4. The machine is adopt block bottle-neck  hanging  work  state  design, and be  adopt filling  valve

    rise-drop  design . It's be  satisfy for  95°C hereinafter  hot filling technology  demand. It's adpot person-machine interface touch-screen, PLC,transducer  etc advanced control  technology. 5.  It's osculant the drink material parts are adopt the SUS304 stainless steel,The machine main motor

    ,reducer,mostly axletree,pressurize parts and electricity ware element,gas drive element etc are adopt

    famous international manufacturer products.





    Specifications:



    Model RCGF18-18-6
    Production(B/H)(500ml) 6000-8000
    Bottle standard Neck: φ50-100mm; Height: 150-320mm
    Water pressure of washing bottle 0.18-0.25Mpa
    Water consumption for washing bottle(kg/h) 2000
    Spraying position 7
    Dripping bottle position 5
    Filing precision +5MM
    Gas source pressure 0.4Mpa

    Gas consumption

    (m³/min)

    0.4
    Total power(kw) 4.5
    Total weight(T) 2.5
    Dimension (L*W*H)(mm) 2500*1750*2100







    After-sales service:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Company introduction:



        Zhangjiagang City FILL-PACK Machinery Co., Ltd is a manufacturer enterprise specializing

    in producing beverage packing equipment and various water treatment equipment. The company has

    not only gained over ten year’s producing experience but also incorporated advanced technology

    from home and abroad. So we have won high reputation among our customers domestic and abroad.



        At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk

    drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy

    sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water

    treatment plant.



        Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high

    level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales

    service. We would like to cooperate with our friends and develop together. All friends from at home

    and abroad are warmly welcomed to visit us.
