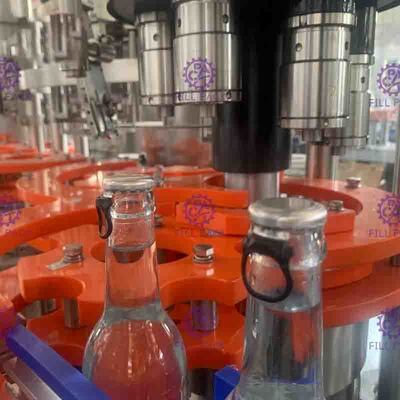

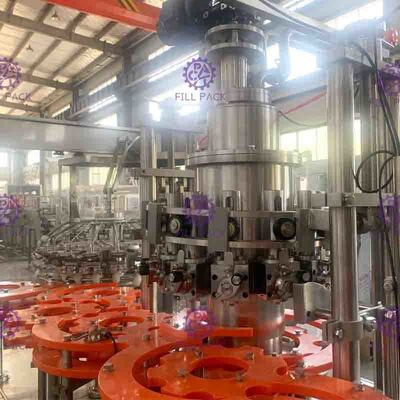

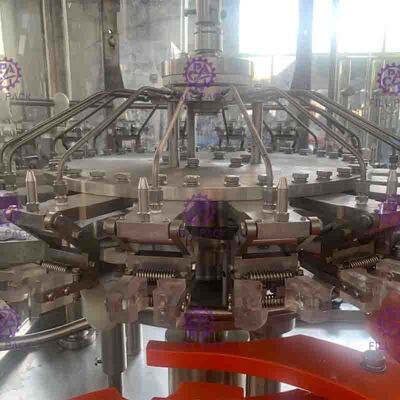

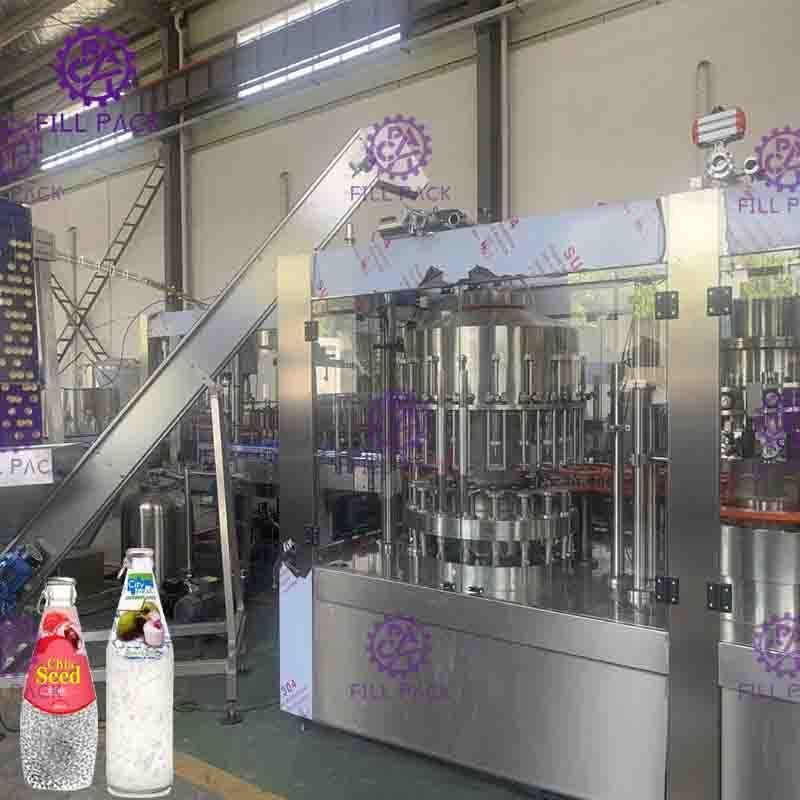

Fully Automatic Monoblock Hot Filling Machine Fruit Juice Processing Equipment 0.3L - 2L
Product Details:
Place of Origin: | China,JiangSu,Zhangjiagang |
Brand Name: | FillPack |
Certification: | CE & ISO & TUV & SGS |
Model Number: | RCGF18-18-6 |
Color: | Silver Gray |
---|---|
Control: | PLC Control With Touch Screen |
Processing: | Japan & Germany |
Suitable Bottle Size: | 0.3-2L PET Bottle |
Cap Style: | Plastic Screw Cap |
Capacity: | 6000-8000BPH |
Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
Warranty: | 1 Year for Spare Parts |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case Package |
Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
Payment Terms: | TT & L/C |
Supply Ability: | 20 sets/month |
Detail Information |
|||
Highlight: | coffee filling machine,beverage filling machine |
---|
Product Description
Fully Automatic Monoblock Hot Filling Machine Fruit Juice Processing Equipment 0.3L - 2L
Quick Detail:
Name: Fully Automatic Monoblock Filling Machine Fruit Juice Processing Equipment 0.3L - 2L
Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After sales service provided: Engineers available to service machinery overseas .
Description:
1. This fully automatic monoblock filling machine fruit juice processing equipment is designed for granule juice packed in plastic bottles or glass bottles. It is full automatic with PLC control and touch screen, set with air conveyor and bottle conveyor for better operation.
2. It mainly contains the five parts clean water washing, sterilized water washing, pure water washing, granule and juice filling, bottle capping. So it is different from normal 3 in 1 filling machine, the three different washing part ensure the cleanliness of the plastic bottle, after sterilize the bottle, we can fill the fruit juice safely, without the worry of the bacteria will make the juice get bad. After filling, then come to the capping part, the high speed capper will ensure the cap capped on the bottle stable.
3. The speed is adjustable and with high filling speed. There is a motor mixer on the liquid filling tank for mix the juice and granule uniform, for best filling effect. The machine is all made of high quality of SUS304 material, meets with the GMP requirements. It's your best choice for high speed of bottle granule juice.
Specifications:
Model | RCGF12-12-4 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
Production(B/H)(500ml) | 4000-5000 | 6000-8000 | 8000-12000 | 12000-15000 | 16000-20000 |
Bottle standard | Neck: φ50-100mm; Height: 150-320mm | ||||
Water pressure of washing bottle | 0.18-0.25Mpa | ||||
Water consumption for washing bottle(kg/h) | 1300 | 2000 | 3000 | 4000 | 5000 |
Spraying position | 4 | 7 | 10 | 14 | 18 |
Dripping bottle position | 3 | 5 | 8 | 10 | 15 |
Filing precision | +5MM | ||||
Gas source pressure | 0.4Mpa | ||||
Gas consumption (m³/min) |
0.3 | 0.4 | 0.5 | 0.7 | 0.8 |
Total power(kw) | 4.2 | 4.5 | 5 | 6.2 | 7.8 |
Total weight(T) | 2 | 2.5 | 3 | 4 | 6 |
Dimension (L*W*H)(mm) | 2100*1600*2100 | 2500*1750*2100 | 2700*2100*2100 | 3500*2100*2100 | 3800*2200*2200 |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Market Distribution:
Market | Revenue(Previous Year) | Total Revenue (%) |
Africa | confidential | 40% |
Middle east | confidential | 15% |
America | confidential | 5% |
Euro | confidential | 4% |
Middle Aisa | confidential | 3% |
South-east Asia | confidential | 3% |
Domestic | confidential | 30% |
Company description
Zhangjiagang City FILL-PACK Machinery Co., Ltd is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
