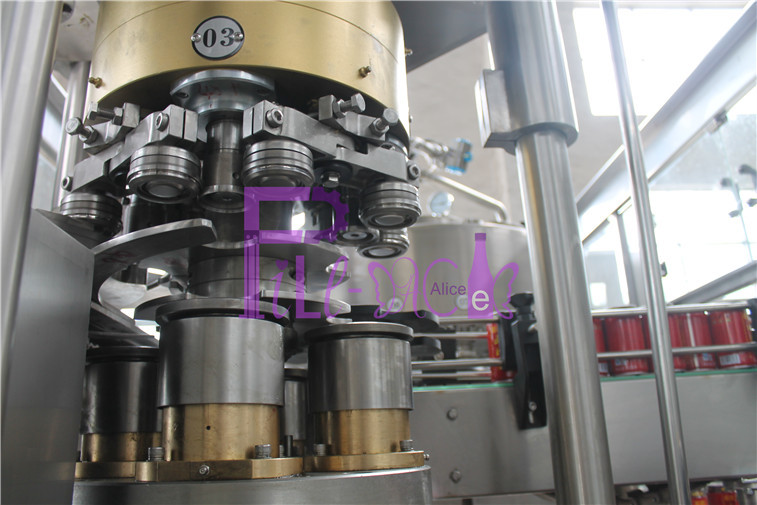

High Speed Coke Filling Machine , 2 In 1 PLC Can Filling Line

High Speed Coke Filling Machine , 2 In 1 PLC Can Filling Line

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DG-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

High Light:

soft drink bottling equipment

,

coke filling machine

Product Description

High Speed Coke Filling Machine , 2 In 1 PLC Can Filling Line





Quick Detail:



Name: High Speed Coca Cola Carbonated Drink Filling Machine 2 In 1 Can Filling Line

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 2500-6000bph
Suitable Bottle: Tin can / PET can
Bottle Volume: 0.2-0.6L
Dimension: By order
Function: Filling capping 2 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:



1. This high speed coca cola carbonated drink filling dachine 2 In 1 can filling line is used for filling carbonated drinks in PET / tin cans, such as fruit juice, carbonated drinks and soft drinks.

2. This equipment can be used for different material of cans, such as PET cans, iron cans, aluminum cans and so on, and the different size of cans is allowed. We can design the equipment according to your requirements.

3. It is applicable for balanced pressure filler and capper of non carbonated drinks in water and beverage industry.

4. It is a pop canned beverage drinking in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.

5. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination.

6. It adopts the advanced machine design, electrical equipment, and pneumatic control technology.

7. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.

8. It can equip long distance control system according to the customers request.

9. It is the preferred equipment for the carbonated drink and beverage production machinery.





Specifications:



Model : DG -8 DG -12 DG-18 DG -24
Production Capacity: 1000-2000b/h 1000-3000b/h 2500-4600b/h 2500-6000b/h
Bottle standard: Glass bottle, PVC bottle, Pop-top can
Filling Pressure: 0.2-0.3Mpa
Filling Temperature: 2-6°
Power: 0.75kw 1.1kw 1.5kw 1.5kw
Overall Dimensions: 1000×900×1800 mm 1100×1050×1800 mm 1400×1300×1800 mm 1600×1540×1800 mm
Weight : 1000kg 1600kg 2100kg 2700kg





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%





Company description



    Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



    Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
