Fully Automatic DCGF Carbonated Drink Filling Machine For Soda Water / Beer

Fully Automatic DCGF Carbonated Drink Filling Machine For Soda Water / Beer

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Highlight:

coke filling machine

,

csd filling machine

Product Description





Fully Automatic DCGF Carbonated Drink Filling Machine For Soda Water / Beer





Quick Detail:



Name: Fully Automatic DCGF Carbonated Drink Filling Machine For Soda Water / Beer

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.25-2.5L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:

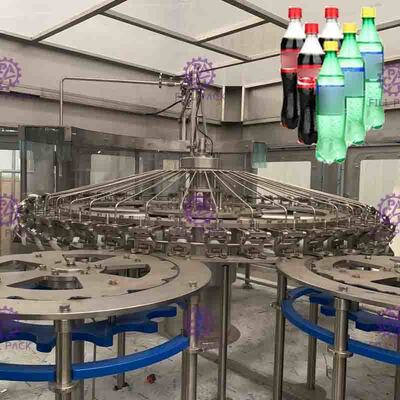

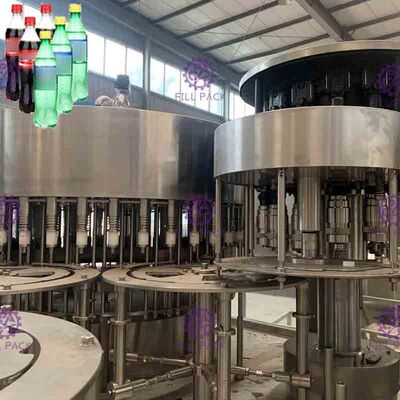

This fully automatic DCGF carbonated drink filling machine for soda water / beer combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment.
It is suitable for packing beverage containing gas. Its performance is as below: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature. Using programmable controller to realize fully automatic control from bottles entering to packing finished.
Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure the beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.

Characteristics:

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

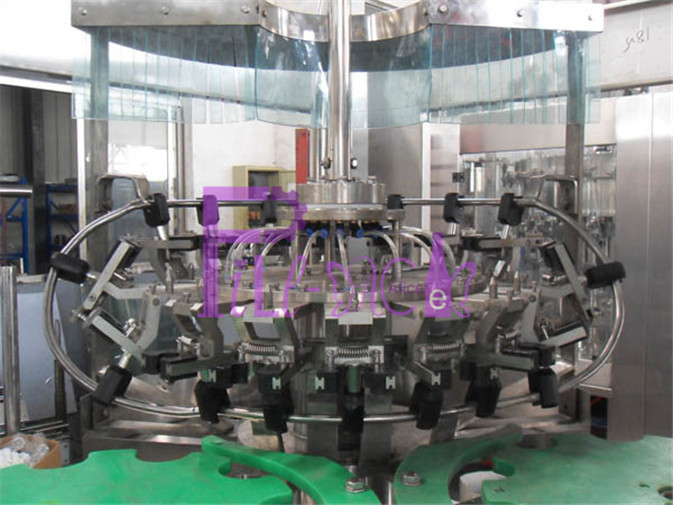

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

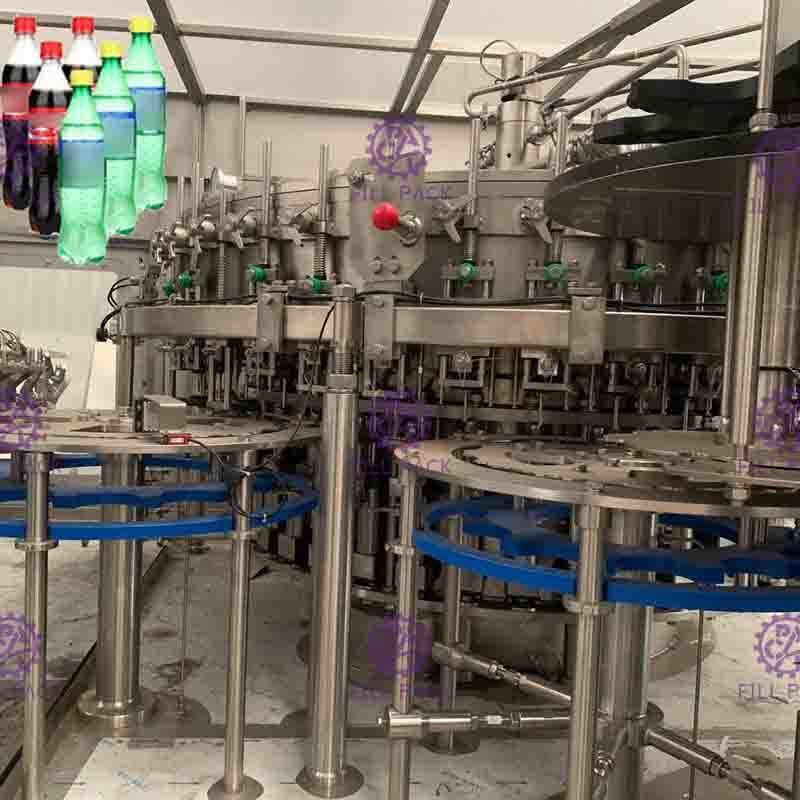

4. High speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.





Specifications:



Model DCGF12-12-4 DCGF 18-18-6 DCGF 24-24-8 DCGF G32-32-10
Production B/H(600ml) 3000-4000 4000-6000 6000-8000 8000-12000
Bottle standard Neck: φ50-100mm Height:150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100











Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%
