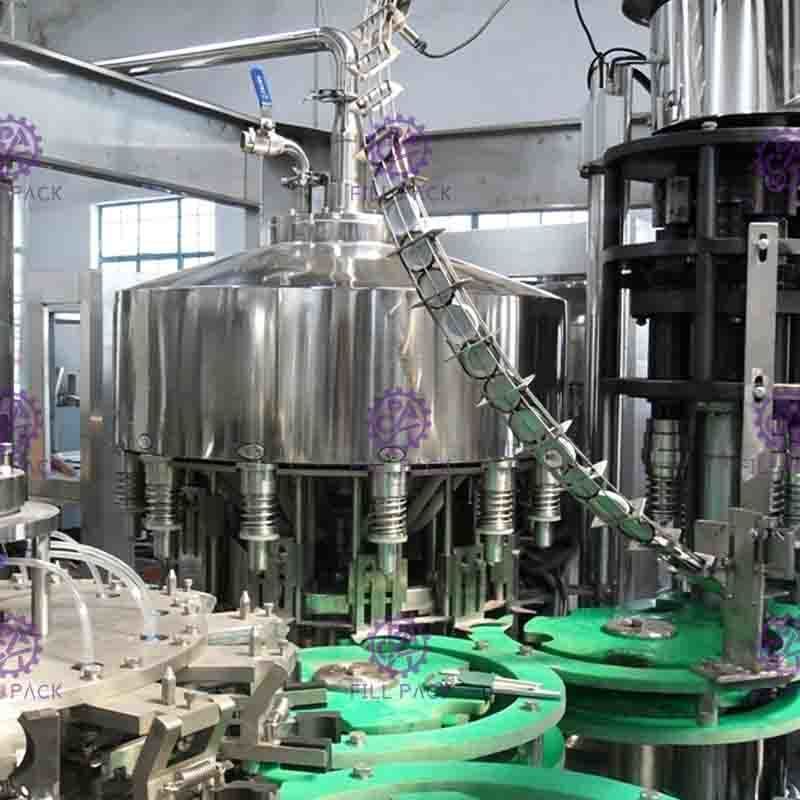

4.2Kw Full Automatic Non - Gas Juice Drink Filling Machine For Glass Bottle
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | RCGF12-12-4 |
| Color: | Silver Gray |
|---|---|
| Control: | PLC Control With Touch Screen |
| Processing: | Japan & Germany |
| Suitable Bottle Size: | 0.3-2L Glass Bottle |
| Cap Style: | Metal Caps |
| Capacity: | 3000-4000BPH |
| Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
| Warranty: | 1 Year for Spare Parts |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | TT & L/C |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Highlight: | 4.2Kw Juice Drink Filling Machine,SGS Non Gas Filling Machine,4.2Kw Non Gas Juice Filling Machine |
||
|---|---|---|---|
Product Description
4.2Kw Full Automatic Non - Gas Juice Drink Filling Machine For Glass Bottle
Quick Detail:
Name: 4.2Kw Full Automatic Non - Gas Juice Drink Filling Machine For Glass Bottle
Material: Food stage stainless steel
Control: PLC & Touch screen control
Capacity: 3000-4000bph
Suitable Bottle: Glass bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
Description:
1. This juice drink filling machine are used for green tea, black tea, oolong tea, juice drink filling and sealing
2. It integrates washing, filling and capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
3. The automation is high. It is good equipment for choosing hot drink bottling machine.
4. The juice machine adopts block bottle-neck hanging work state design and bottling valve rise drop design. It can meet the requirements of hot bottling of below 95 degrees Celsius.
5. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
6. The main juice drink filling machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Specifications:
| Model | RCGF12-12-4 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| Production(B/H)(500ml) | 4000-5000 | 6000-8000 | 8000-12000 | 12000-15000 | 16000-20000 |
| Bottle standard | Neck: φ50-100mm; Height: 150-320mm | ||||
| Water pressure of washing bottle | 0.18-0.25Mpa | ||||
| Water consumption for washing bottle(kg/h) | 1300 | 2000 | 3000 | 4000 | 5000 |
| Spraying position | 4 | 7 | 10 | 14 | 18 |
| Dripping bottle position | 3 | 5 | 8 | 10 | 15 |
| Filing precision | +5MM | ||||
| Gas source pressure | 0.4Mpa | ||||
|
Gas consumption (m³/min) |
0.3 | 0.4 | 0.5 | 0.7 | 0.8 |
| Total power(kw) | 4.2 | 4.5 | 5 | 6.2 | 7.8 |
| Total weight(T) | 2 | 2.5 | 3 | 4 | 6 |
| Dimension (L*W*H)(mm) | 2100*1600*2100 | 2500*1750*2100 | 2700*2100*2100 | 3500*2100*2100 | 3800*2200*2200 |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Company description
Zhangjiagang City FILL-PACK Machinery Co., Ltd is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
please kindly click the play button to watch the video
