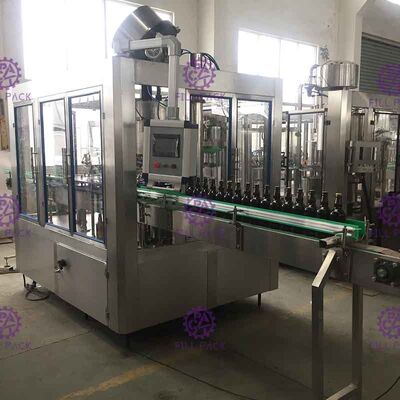

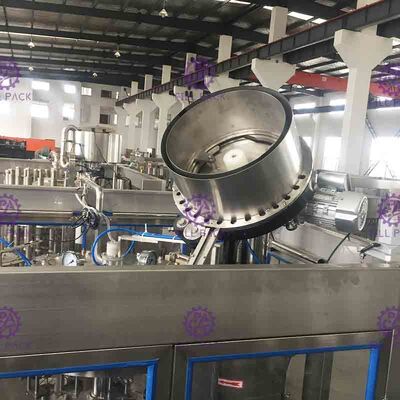

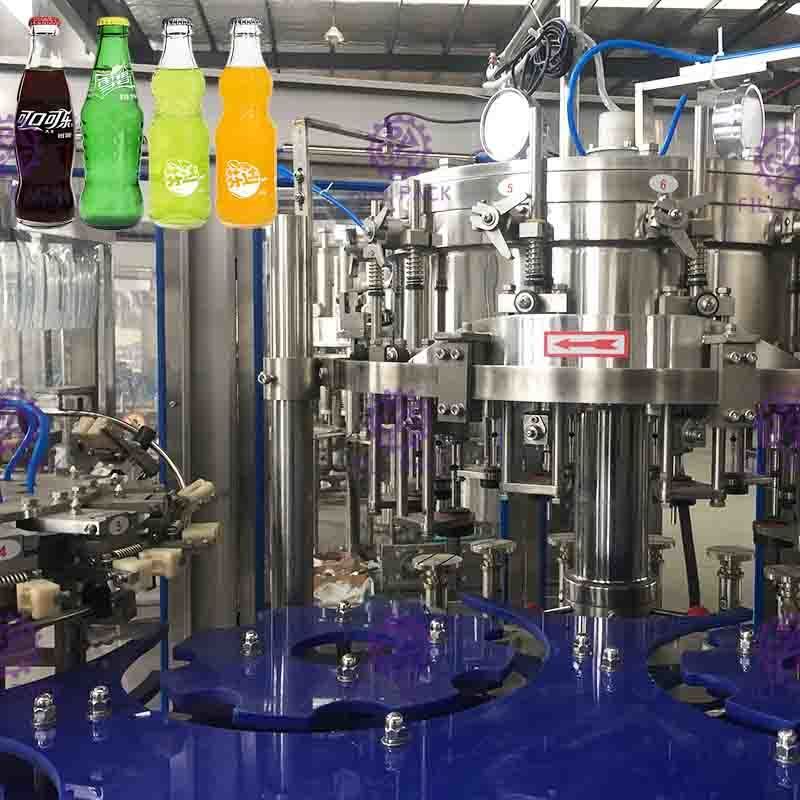

Monoblock 3 In 1 Glass Bottle Carbonated Drink Filling Machine
|Place of Origin:||China,JiangSu,Zhangjiagang|
|Certification:||CE & ISO & TUV & SGS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||30 Working Days After Receiving Your Deposit Payment|
|Payment Terms:||TT & L/C|
|Supply Ability:||20 sets/month|
|Name:||Monoblock 3 In 1 Carbonated Drink Filling Machine For Glass Bottle||Control:||PLC & Touch Screen Control|
|Capacity:||6000-8000bph||Suitable Bottle:||Glass Bottle|
|Function:||Washing Filling Capping 3 In 1||Bottle Volume:||0.25-2.5L|
coke filling machine,
csd filling machine
Monoblock 3 In 1 Carbonated Drink Filling Machine For Glass Bottle
Name: Monoblock 3 In 1 Carbonated Drink Filling Machine For Glass Bottle
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: Glass bottle
Bottle Volume: 0.25-2.5L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
This 3 in 1 carbonated drink Filling Machine combines washing, filling and rotary capping functions in one unit, it is a fully automatic and high efficiency liquid packing equipment.
It is suitable for packing beverage containing gas. Its performance is as below: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature. Using programmable controller to realize fully automatic control from bottles entering to packing finished.
Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure the beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

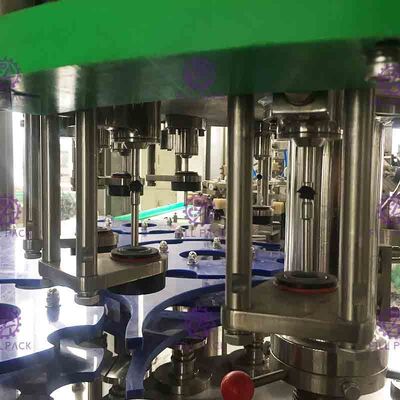

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
|Number of washing, filling, capping heads||12-12-5||18-18-6||24-24-8||32-32-8||40-40-10||50-50-12||60-60-15||80-80-20|
Suited bottle specification
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
please kindly click the play button to watch the video
