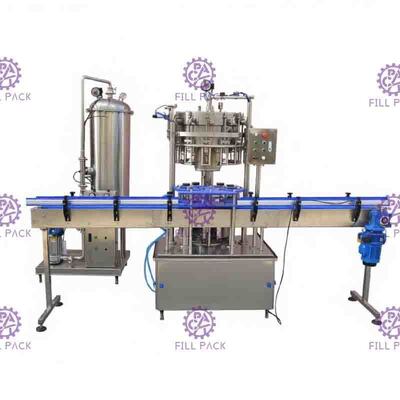

1500BPH Automatic Carbonated Drink Filling Machine 2L Glass Bottle Aluminum Cap Beverage Line

1500BPH Automatic Carbonated Drink Filling Machine 2L Glass Bottle Aluminum Cap Beverage Line

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILLPACK
Certification: CE/ISO9001
Model Number: QS-12/DG-12/FXZA-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 14950USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information
Machinery Capacity: 1500BPH Packaging Type: Glass Bottle
Filling Heads: 12 Capping Heads: 1
Applicable Bottle:: D∮90mm,H<300mm Filling Pressure: 0.2-0.3Mpa
Filling Temperature: 2-6 ℃ Powder: 1.88KW
High Light:

1500BPH Carbonated Beverage Drink Filling Machine

,

Automatic Carbonated Drink Filling Machine

,

2L Bottle Carbonated Drink Filling Machine

Product Description



1000-1500BPH Automatic 0-2L Glass Bottle Aluminum Cap Carbonated Beverage Soft Drink Soda Water Filling Machine Line

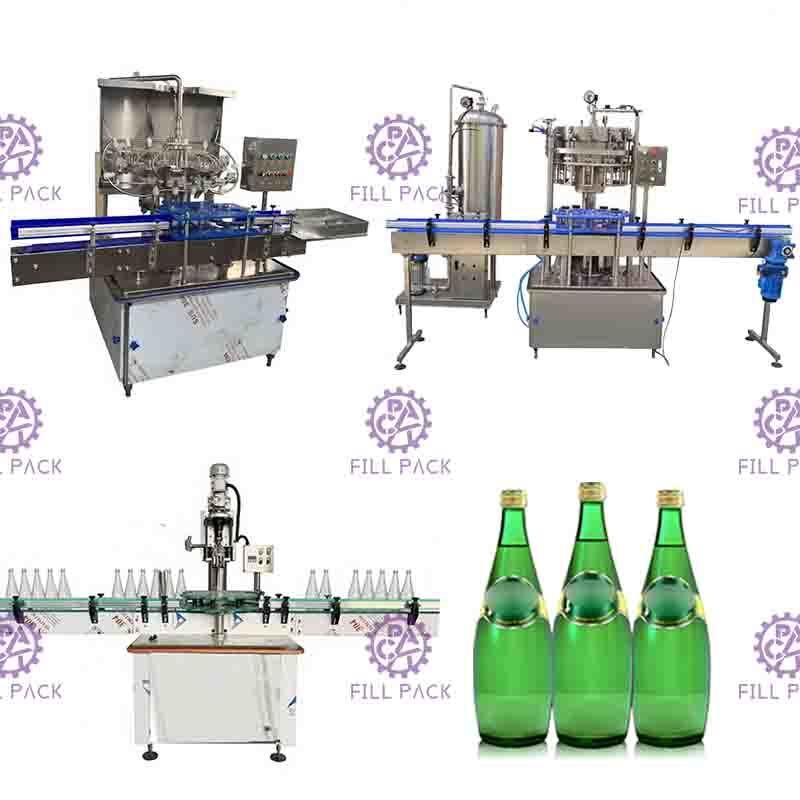

The split production line equipment includes automatic bottle washer, Isobaric filling machine, automatic capping machine and conveyor. It can be used alone or connected with other equipment. The main key components are made of high-quality stainless steel materials, with advanced technology, perfect system, reliable performance and convenient use.



Advantage:

This machine is suitable for glass bottle and filling of various capacities. When changing the bottle type, it is only necessary to adjust some parts to continue working.Convenient filling requirements for different bottle types.

1. Rotary bottle washer:
The washing machine is of international advanced level. Mainly used for PET or glass bottles. Advanced structure, stable performance, safe operation, convenient maintenance, high production efficiency, and unlimited speed adjustment. Cleaning agents are ideal for small to medium beverage plants.The bottle will enter the washing machine through the conveyor. The diameter plate will clamp each bottle with a spring clamp. The motor will drive the energy. The spring clamp moves forward along the main shaft one turn, the bottle reverses 180°, and the bottle mouth will face the floor. The water spray value will be turned on, and the cleaned pressure water will be sprayed into the bottle. As the water falls, the dirt inside the bottle will be taken away. The cleaned bottle is then rotated 180° again and sent to the next machine station.

Parameters
Rinsing heads
12
Capacity3
3000BPH
Power
0.92KW
Dimension
1050*950*1600mm
Weight
700kg
Applicable bottle
φ50-100mm, H50-350mm



2.Isobaric filling machine

This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparkling wine , fruit tea and so on .It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.



Model : DG -12
Production Capacity: 1000-2000b/h
Bottle /standard: Glass bottle , PET bottle , Pop-top can
Applicable bottle: D∮90mm,H<300mm
Filling Pressure: 0.2-0.3Mpa
Filling Temperature 2-6 ℃
Power: 1.1kw
Overall Dimensions: 1100×1050×1800 mm
Weight : 1000kg

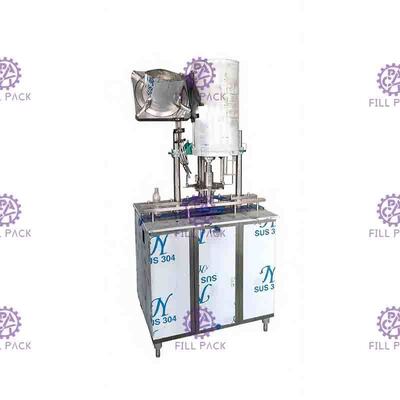

3. Screw cap capping machine:
The machine is used to cover plastic screw caps, including the automatic cap loader and capping system. Workers load a large number of lids into the cap loader, which automatically interprets the cap and places the cap into the lid rail, then caps it. The cap loader can hold more than 200 hats at a time, making it easy to add a hat. When the cap is capped, it will go down to the finish and complete the closure.The capping head uses Italian magnetic technology and the protective cap is not damaged. The correct rate of capping is 99%. The opposite cap will be automatically deleted. The cap is a separate part. Replacing the cap only requires replacing the cap to facilitate replacement and operation. The whole machine is made of SUS304 and has a long service life.

Parameters
Capping head
1
Capacity
2000BPH

Motor

Y802-4 0.55KW 1390r/min

Cap elevator

0.3KW

Applicable bottle

glass bottle, mouth<35mm
Weight
250kg
Main machine Dimension
900X1000X1700mm

Elevator dimension

600X900X2400mm



1500BPH Automatic Carbonated Drink Filling Machine 2L Glass Bottle Aluminum Cap Beverage Line 0



Application:

1500BPH Automatic Carbonated Drink Filling Machine 2L Glass Bottle Aluminum Cap Beverage Line 1
