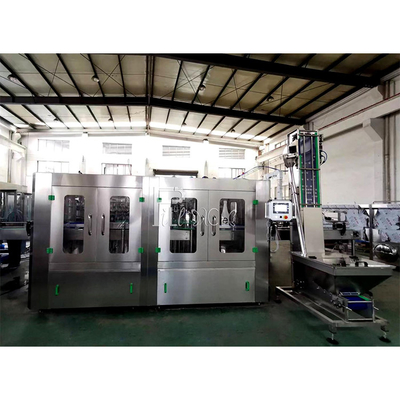

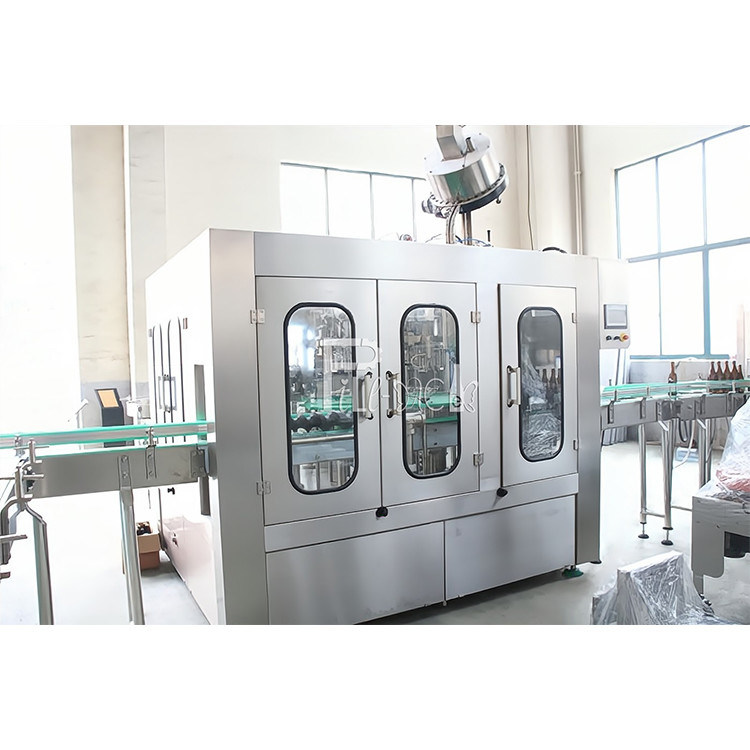

3 In 1 Carbonated Drink Filling Capping Machine Monobloc Glass Bottle With Aluminum Cap

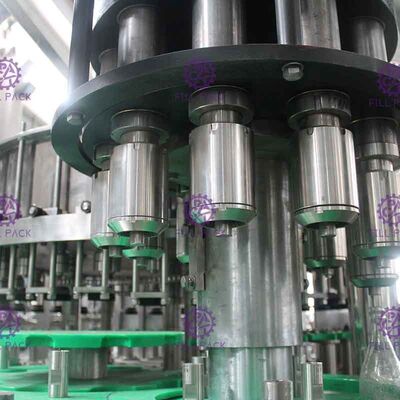

The equipment is used to produce carbonated drink beverages. Rinsing, filling and capping are integrated in one machine.The most advanced technology from Japan and Germany is employed in the design. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.The fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.Valve opening device: the device is composed of air cylinder, electromagnetic reversing valve and signal detection element. When there is a bottle, the bottle will be detected with proximity switch signal, at the same time,, make the electromagnetic reversing valve action, open valve cylinder will be trigged, make the filling valve open inflatable filling; when there is no bottle, the electromagnetic reversing valve power loss, liquid tank valve rod retracted, make the filling valve does not open, avoid CO2 escape in the tank.Valve closing device and exhaust cam valve closing device is forced after filling, the control valve rod to the closed position, make the air injection valve and liquid valve closed at the same time, and then by the exhaust cam push the exhaust valve rod, the CO2 in the bottle, prevent the bottle bubble from the valve, the exhaust valve rod evenly push about 3mm position.The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve.The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.



1)Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

2)The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.

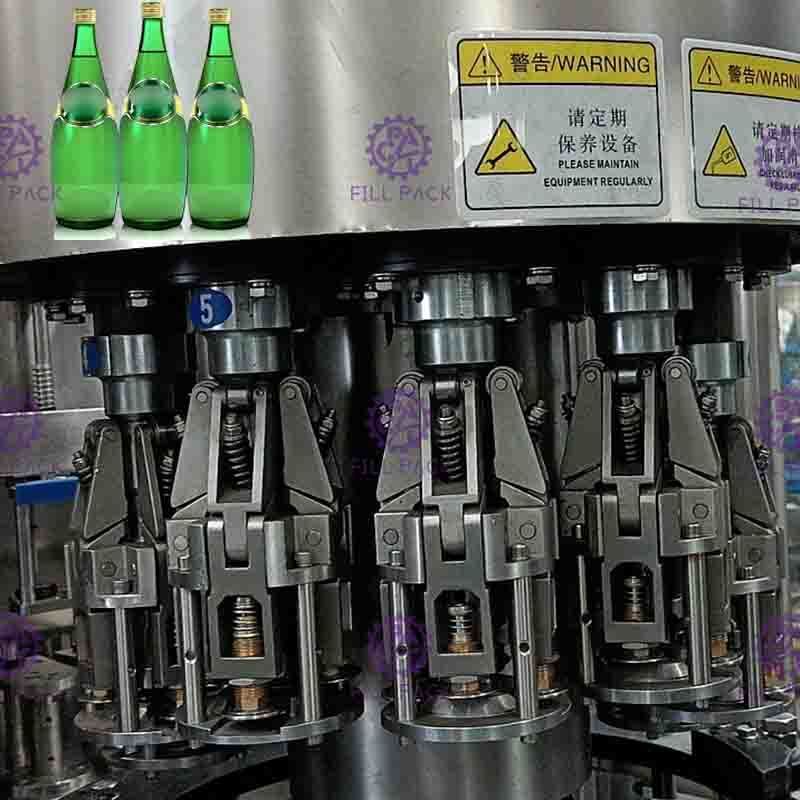

3)The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.

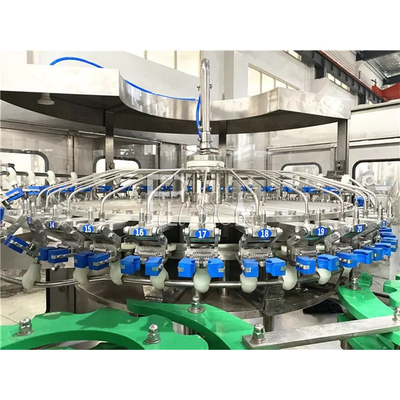

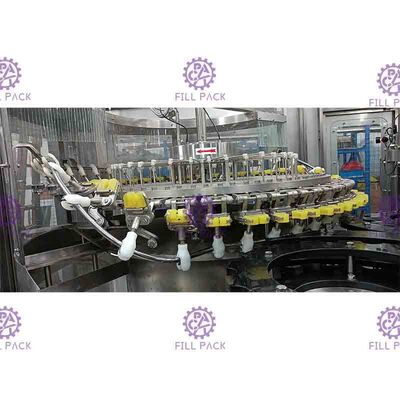

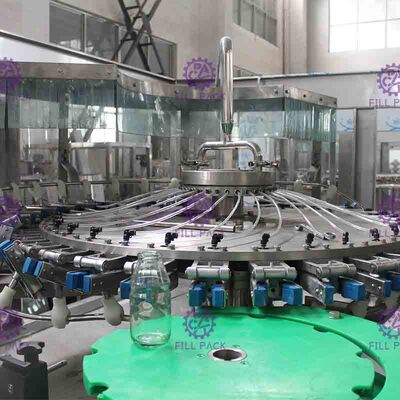

4)The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles. 5)Rinsing time can be guaranteed for 4 seconds.

6)By adjusting the height of the rotary parts to adapt for different bottle height.

7)The motivation is derived from the driven system in the framework passed by gear.

8)The supplying of rinsing water is controlled by solenoid valve.
