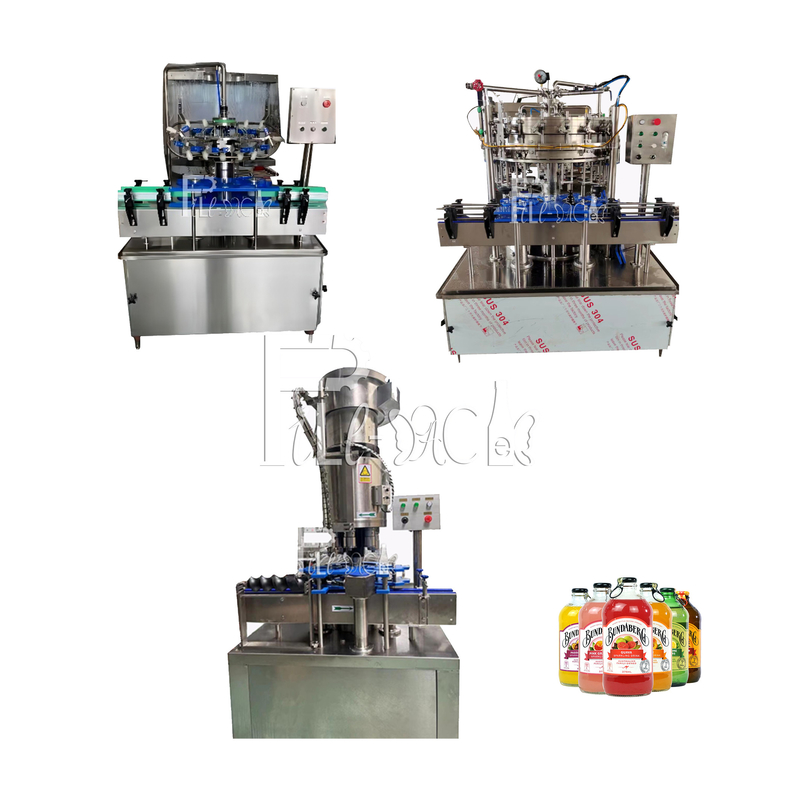

4000BPH 2L Automatic Carbonated Drink Sparkling Water Filling Machine Line With Pull Ring Cap

Product Description

4000BPH 0-2L Automatic Soda Carbonated Beverage Soft Drink Sparkling Water Filling Machine Line With Pull Ring Cap

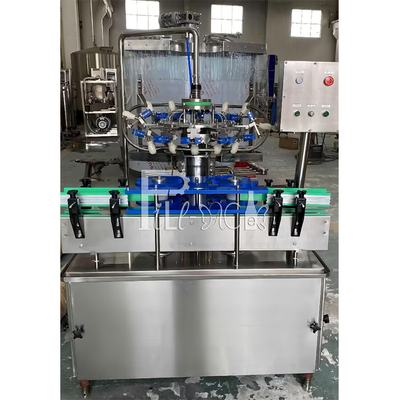

1.Rotary bottle washer

Principle:

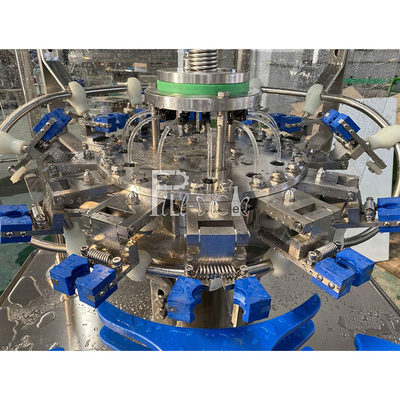

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

Parameters:

Rising heads: 12 pcs

Capacity: 0-3000BPH (each bottle rinsing time 4s)

Power: 0.92KW

Dimension: 1050*1050*1900mm

Weight: 450KG

Applicable bottle: D∮50-100mm,H 50-350mm

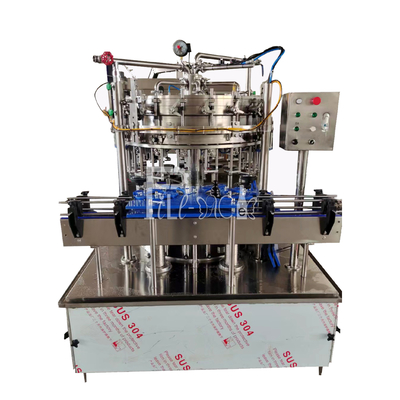

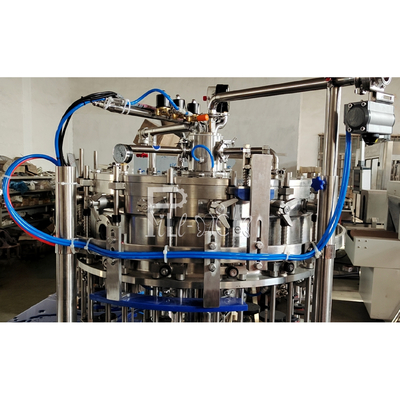

Suitable for pressure filling machines and capping machines for carbonated beverages in beer, Coca-Cola, Pepsi-Cola beverages and other carbonated beverage production industries. Filling and sealing are the overall design, and the power system is filled and sealed to ensure absolute synchronization and coordination. It uses advanced machines, electrical equipment and pneumatic control technology. It has the characteristics of filling, high speed, liquid level control, reliable cover, frequency control, and material loss. A remote control system is available upon request. It is the device of choice for medium beer and beverage plants.



1. The machine has variable frequency speed regulation, fast filling speed, overload protection device, card bottle stop, soft start, and elastic bottle holder to reduce bottle damage.
2. The filling quantity is adjusted by electric synchronous stepless adjustment. Pressing the addition and subtraction adjustment button can adjust the filling amount. The digital display accurately displays the instantaneous filling capacity, and has a manual fine adjustment system, which is more filling capacity. accurate.
3. The main parts are made of 304 stainless steel that meets food hygiene standards.



Production Capacity:	0-4000b/h
Bottle /standard:	Glass bottle , PET bottle , Pop-top can
Applicable bottle:	D∮<92mm,H<310mm
Filling Pressure:	0.2-0.3Mpa
Filling Temperature	2-6 ℃
Power:	3kw
Overall Dimensions:	1750*1750*2000mm
Weight :	1800kg

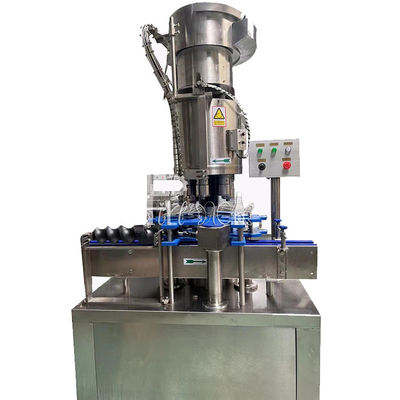

3.Pulling Ring Capping part

General specifications:

The machine is sued for pull ring capping for glass bottles; The machine is set with bottle dia-plate for automatic bottle entrance; Workers put caps into cap loader, Oscillating coil will unscramble and load bottle automatically, with help of compressed air, caps will load correctly to capping head; By the main motor driven energy, the capping tube move up and down to finish the capping job; When one bottle capping finish, the spring in the capping tube will flick off the done bottle and start for a new one; Comparing with traditional capper, this one is using adjustable speed motor to control speed, and transmission part develop to upgrade speed also; The machine is produced with high quality SUS304, is with reasonable construction, easy for bottle change, easy for maintenance;



Construction and function:

1, Frame desk, to support;

2, Cap loader, to make disordered caps loading into cap loading rail in order, and make sure cap mouth face to floor, inversed caps will be eliminated;

3, Cap sealing system, to sealing automatically when cap loading on bottle mouth;

4, Conveyor rail;

Capacity	0-4500BPH
Capping head	4
Capping tube stroke	58mm
Applicable bottle	Glass bottle,mouth 26.3±0.2mm
Applicable bottle cap	Pull ring cap
Main motor power	1.5KW
cap sorter power	0.3KW
Suggested compressor	0.6m3/min 0.7Mpa
Dimension	1000*750*2300mm
Weight	970kg
