PLC Control 3 in 1 Carbonated Drink Filling Machine for PET Bottles

PLC Control 3 in 1 Carbonated Drink Filling Machine for PET Bottles

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: L/C, T/T,
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Warranty: 1 Year Driven Type: Electric
Machine Structure: Rinsing, Filling And Capping In One Machine Processing Type: Soda Water Filling Machine
Control: PLC Control And Screen Touch Bottle Type: PET Bottle
High Light:

coke filling machine


csd filling machine

Product Description

PLC Control 3 in 1 Carbonated Drink Filling Machine for PET Bottles
Quick Detail:
Name: PLC Control 3 In 1 Carbonated Drink Filling Machine for PET Bottles In Stainless Steel
Material: Food Stage Stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle

Filling material: Carbonated drinks
Cap type: Plastic screw cap
Bottle Volume: 0.25-2.5L
Dimension: can be customized
Function: Washing filling capping 3 in 1
After-sales service provided: Engineers available to service machinery overseas .

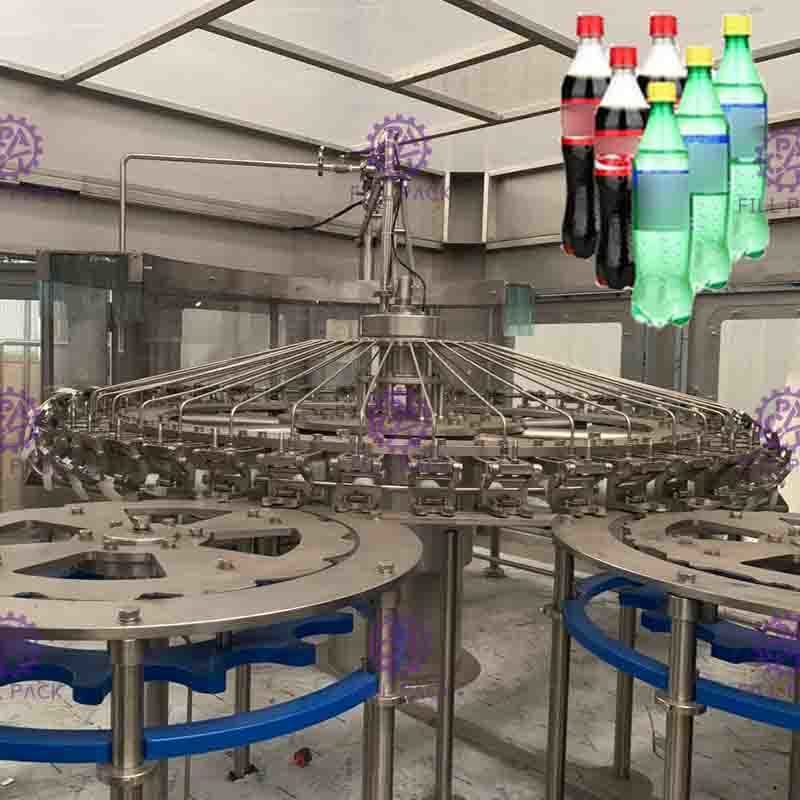

1. The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed air conveyor.
2. A star wheel then transfers the bottle to neck holding gripper of the rinsing station.
3. The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.

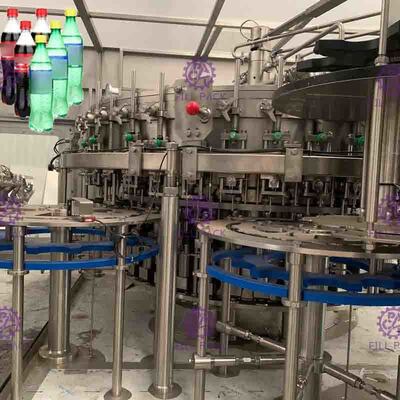

4. In the filling station the bottles are picked up by the neck, allocated individual filling values and sealed

by rubber, Next a valve opens to inject CO2 while simultaneously a second vent(bleed) valve is opened

to displace the prviously oxygenated air from the container.
5. Once eventually all of the oxygen has been replaced by CO2 the vent is closed and another valve

opens to let the product flows into the container down the wall of bottle.
6. After filling is complete a vent is opend to allow excess product to escape which defines the classic

liquid leve fill that you see in all carboanted drinks.
7. Finally the filled container is ready for sealing and the faster the better. Bottled carbonated drinks

can go directly to capping station without much worry as the foam caused by escaping CO2 denies atomopheric oxygen from entering the product.

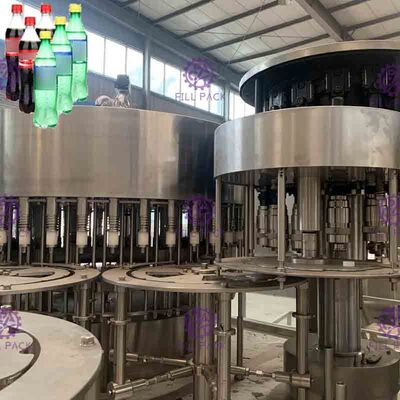

8. The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled


are then transferred to the capping station via a star wheel.The bottles automatically move for the

capping stage where the caps release from the sorter on to the bottles.The caps are sealed

automatically using special capping hands.

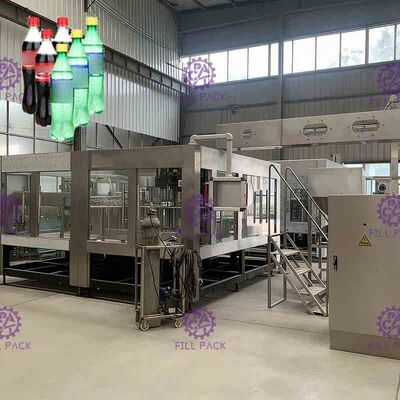

9. The entire system is enclosed in a stainless steel/glass outer casing.
10. After the capping stage the bottle are automatically ejected out to the out feed conveyor.
11. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging

from 250 ml to 2.5 ltrs.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled

screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust

the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch

with the screw location of bottle mouth to avoid secondary pollution.
4. High speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main data:

Model DCGF 24-24-8
Production B/H(600ml) 6000-8000
Bottle standard Neck: φ50-100mm Height:150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 3000
Spraying position 10
Dripping bottle position 8
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.5
Total power(KW) 5
Total weight (T) 3
Dimension (L*W*H)mm 2700*2100*2100

1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
