RO Drinking Water Treatment System Stainless Steel 3000L Per Hour

RO Drinking Water Treatment System Stainless Steel 3000L Per Hour

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: RO-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth worthy sea freight
Delivery Time: 15-20days
Payment Terms: L/C, T/T,
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Material: Stainless Steel Voltage: Customized
Driven Type: Electric Guarantee Time: 1 Year
Service: Engineers Available To Serve Overseas Control: PLC Control And Touch Screen
High Light:

water ro system


water purifying systems

Product Description

RO Drinking Water Treatment System Stainless Steel 3000L Per Hour
Quick Detail:
1. Capacity: 3000L/H
2. Material: SUS304
3. Condition: New
4. Control: PLC control and touch screen
5. Treat the dell water, deep water, city water to be drinkable directly or beverage food production use.
6. The machines are fine polished well, looks nice and with longlife span
Main components:

drinkable water reverse osmosis  system

Usually, this system contains: sand filter, active carbon filter, micro filter, RO system, UV sterilizer, Ozone

mixer tank.

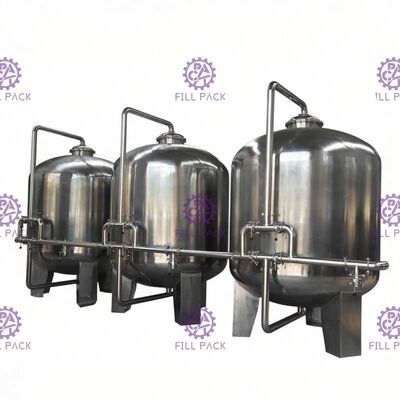

1. sand filter:

This filter can remove the impurity in the water like silt, grain, suspended matter , etc..

2. active carbon filter:

This filter can remove the suspended matter and organic matter in the water.

3. micro filter:

This filter can remove the impurity that remains in the water, protect the RO film.

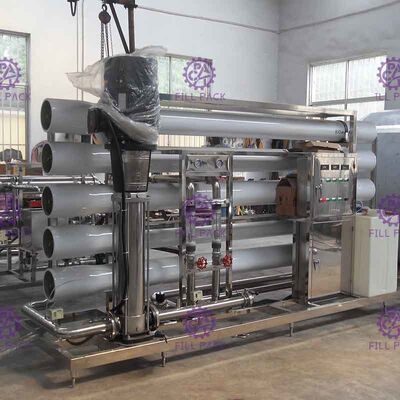

4. RO system:

This system contains: RO film, pressure vessel, frame, high pressure pump, etc. The desalting rate can

reach 99.6%.

5. UV sterilizer:

Through the UV lights, the UV ray can kill the germ.

6. Ozone mixer tank:

Through this system ,the ozone can mix with the water better, and kill the germ in the water




Reverse Osmosis is to separate water from solution after it permeates the specially  made semi

transparent membrane through exerting a pressure that is higher than the osmosis pressure on the

solution . As this process is reverse to the natural permeation direction , it is called reverse osmosis .

According to different osmosis pressures of various materials , the process of reverse osmosis with a

pressure higher than the osmosis pressure can be used to reach the purposes of separation , extraction ,

 purification and concentration of a certain solution . It does not need heating and there is no phase

 changing process , therefore , it saves more energy  than traditional process


We have one stage and two stages water pirifier  . if the raw water electric conductivity is below 300us/cm ,  the finished water electrical conductivity via the one stage treatment Ro equipment can reach below 10us/cm , and if by the two stage , that can reach 2-3 us/cm .


The RO desalting rate is above 99% , machine desalting rate is above 97%, can effectively remove 98% organic matters , colloids ,and bacteria .


Model RO-3000
Flow rate ≥5m3/h
Recovery rate ≥70%
Design pressure 0.2-0.5Mpa
Operation automatic control, automatic flush
Membrane material  Hydecanme RO membrane
Membrane qty 3 PCS
Power 3.5 kw
Size 1700*700*17500mm
Weight 450kg


Working process:


Raw water→ Raw water pump→ Multi filter→ Active carbon filter→ Water softener→ precision filter→ RO

host→ Ozone sterilization → Pure water





Nonstop working, high automation degree, easy operation, extended stable outputting water quality, no

pollution discharge and cheap cost of making

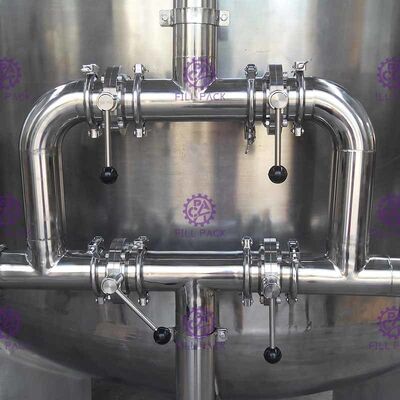

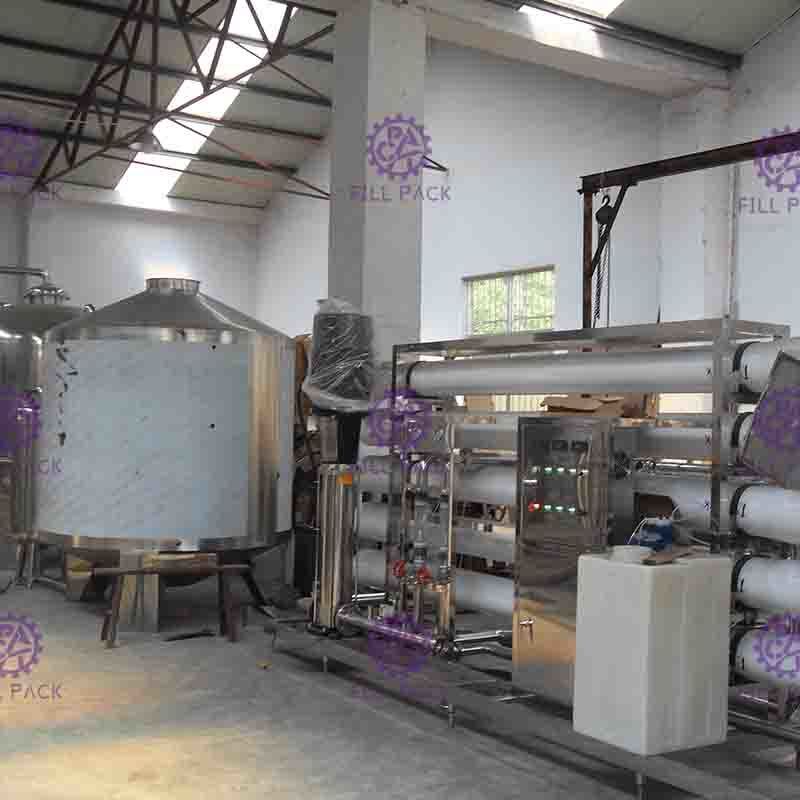

Detailed photos:
RO Drinking Water Treatment System Stainless Steel 3000L Per Hour 0

RO Drinking Water Treatment System Stainless Steel 3000L Per Hour 1
