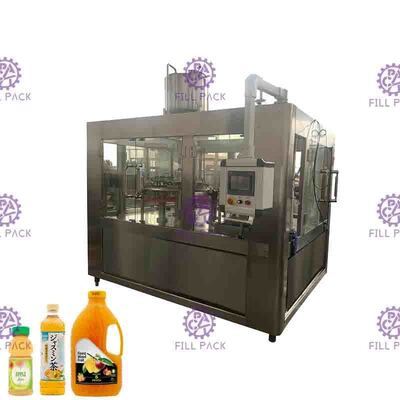

Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle

Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle

    • Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle
    • Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle
    • Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle
    • Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle
  • Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: RCGF 24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C, Western Union, MoneyGram
    Supply Ability: 20 sets/year
    Contact Now
    Detailed Product Description
    Machine Type: Tea Hot Filling Machine Filling Temperature: 85 Degree
    Machine Structure: 3 In 1 Filling Machine Material: SUS304
    Control Manner: PLC Control Option: Recycling System

    Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle





    Quick Detail:



    Name: High Capacity Hot Filling Machine Concentrated Juice Commercial Bottling Equipment

    Material: Food stage stainless steel 304 or 316

    Filling type: Hot filling machine / Normal pressure filling machine
    Control: PLC & touch screen control
    Capacity: 6000-8000bph




    Description:



    - Tea hot filling machine concentrated juice / tea commercial bottling equipment;



    - Washing, filling and capping are integrated in one machine which is called 3 in 1 hot filling machine;



    - The most advanced technology from Japan and Germany is employed in the design;



    - The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.











    Specifications:



    Model RCGF12-12-4 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
    Production B/H(600ml) 4000-5000 6000-8000 8000-12000 12000-15000
    Bottle standard Neck:φ50-100mm Height150-320mm
    Water pressure of washing bottle 0.18-0.25Mpa
    Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
    Spraying position 4 7 10 14
    Dripping bottle position 3 5 8 10
    Filing precision +5MM
    Gas source pressure 0.4Mpa
    Gas consumption(m³/min) 0.3 0.4 0.5 0.7
    Total power(KW) 4.2 4.5 5 6.2
    Total weight (T) 2 2.5 3 4
    Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project



    Monoblock 3 in 1 Tea Hot Filling Machine 10000BPH Pet Bottle
