Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH

Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH

    • Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH
    • Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH
    • Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH
    • Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH
  • Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: RO-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth worthy sea freight
    Delivery Time: 15-20days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Guarantee Time: 1 Year Function: Water Filter
    Housing Material: SUS304L Membrane Model: 4040
    Membrane Flow: 0.25TPH Membrane Qty: 4pcs

    0.25TPH membrane flow vertical pump installed drinking water filter with rebirth device




    Quick details:



    Model RO-1000
    Flow rate ≥5m3/h
    Recovery rate ≥70%
    Design pressure 0.2-0.5Mpa
    Operation automatic control, automatic flush
    Membrane material  Hydecanme RO membrane
    Membrane qty 4 PCS
    Weight 450kg














    Description:

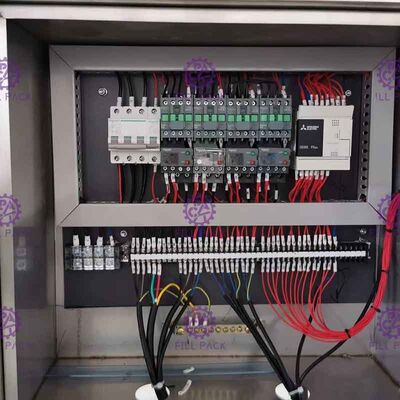

    Drinking water filter consists of booster pump, pretreatment units (including quartz sand filter, active carbon filter and micropore-filter), high pressure pump, reverse osmosis (RO) membrane, conductivity meter, UV sterilizer and controls. The system is used to remove residual suspended solids and organic matter from water and kill bacteria and virus. The portable water is filtered and perfected in this way. The system is unattended and controlled by PLC. It automatically monitors high volume water filtration and long service life.



    Standard Features:


    1. Brine and Product Flow meters
    2. High and Low Pressure Safety Shutdown
    3. Multi-medium Pre-filter (Fiber Glass tank or 316SS Tank)
    4. 316L SS or PP Pre-filter Cartridges
    5. Stainless High and Low Pressure Gauges
    6. Stainless High Pressure Valve
    7. Automatic Fresh Water Diversion
    8. Heavy Duty Motor
    9. Long-life 304SS Compact Frame
    10. Pressure Vessels with Stress Reduction
    11. Stainless fitted pressure pump
    12. Rejection 99.5%, more than 20% Recovery. Permeate TDS <450 PPM





    Specifications



    Model Output Motor power(Kw) Membrane Inlet Size(mm) Weight
    T-1 1 1.5 4040 32 1300*600*1400 100
    T-2 2 3 4040 38 1400*600*1400 200
    T-3 3 4 8040 48 1600*750*1750 200
    T-4 4 5 8040 48 2550*750*1750 250
    T-5 5 7 8040 60 2550*750*1750 300
    T-10 10 11 8040 60 3000*800*2000 600
    T-15 15 16 8040 72 3000*1250*2000 840
    T-20 20 30 8040 60 3000*1800*2000 1250

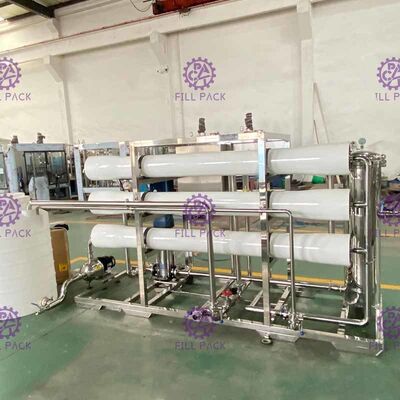

    RO system



        Water pump-core of the equipment,is imported,and the seep film is imported form HAIDENENG CO. in America.It is equipped with a full set of clean unit.It has features of simple structurce.convenient operation and high technological leveal.When the specification is lower than 600 µ s/cm.The quality of the water disposed can meet with the standard of national pure water.It is the most ideal equipment in home market at present.



    Vertical Pump Installed Water Treatment System With Rebirth Device 1000LPH

    please kindly click the play button to watch the video
