3TPH Magnetic Water Treatment SUS Housing UPVC Pipe Installed
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | RO-3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth worthy sea freight |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Function: | Water Treatment | Housing Material: | SUS304L |
|---|---|---|---|
| Membrane Model: | 4040 | Membrane Qty: | 12pcs |
| Handhole: | 300mm | Filter Thickness: | 3mm |
| Membrane Brand: | Hydecanme | Pump: | Nanfang |
| High Light: | water ro system,water purifying systems |
||
Product Description

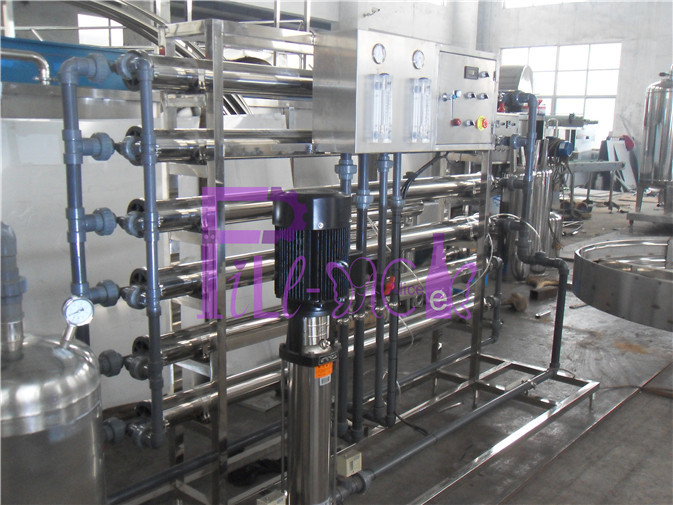

3TPH SUS housing UPVC pipe installed RO water filter system with Nanfang Pump
Technical Prameter
| Model | RO-3000 |
| Production capacity | 3000LPH |
| Product name | Drinking water treatment |
| Core part | RO system |
| Membrane flow | 0.25TPH |
| Membrane qty | 12 pcs |
| Housing material | 6pcs |
| Description |
| first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤ 10μ S/cm² . |
| Working process |
| Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ water softener ( optional) + security filter +high pressure pump+ reverse osmosis+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points |
Advantages:
1)System can produce water continuously and high degree automation.
2)No need chemical to regenerate, easy operation and maintenance.
3)Core components of RO system are imported USA DOW membranes.
4)Automatic switch on when low water level, and switch off when high water level
5)System flushes RO membranes automatically, reducing membranes polluted speed.
6)Water shortage protection for multi-stage pump
7)Product water conductivity meter can monitor water quality online continuously.
8)Low operation cost and long life span

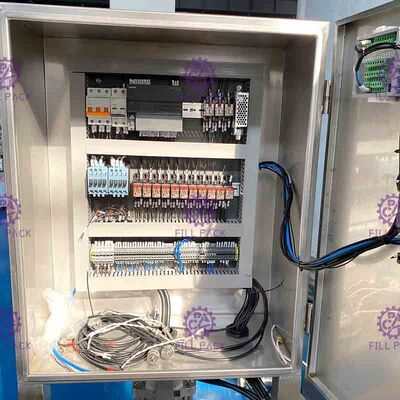

9)There's RO controller, make whole RO system operating automatically.
10)Easily control and Maintained.
11)Auto membrane flushing
12)Environmental protection, Low power consumption
13)Auto flush/backwash
14)Low /high pressure protection
