High Speed Bottle Labeling Machine Dua - Driving Type Belt Synchronous

High Speed Bottle Labeling Machine Dua - Driving Type Belt Synchronous

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: TB-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 30 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

Production Capacity: 250BPM Suitable Label: PET Or PVC Label
Power: 2Kw Model: TB-250
Product Name: Sleeve Applicator Weight: 700Kg
High Light:

industrial labeling systems

,

automatic labeling machine

Product Description

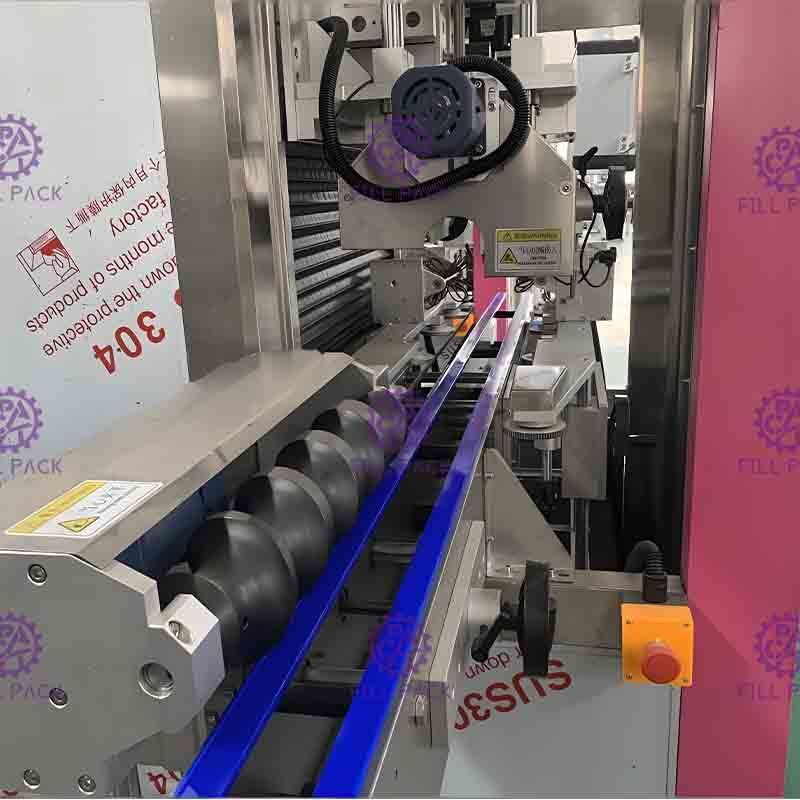

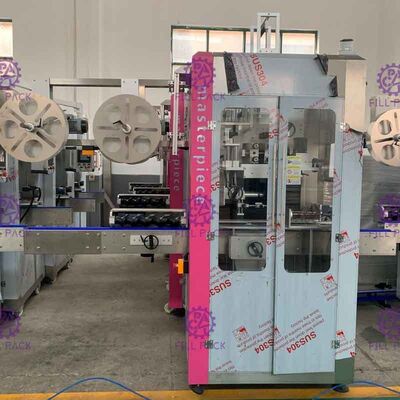

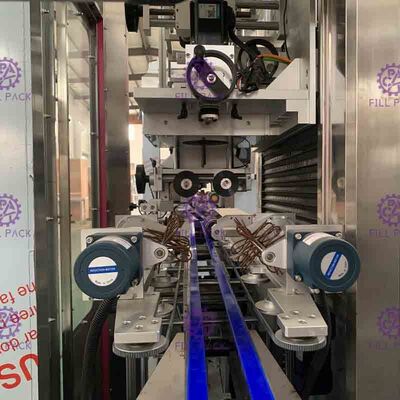

           Dua-driving type belt synchronous high speed sleeve applicator with dust cover





High Speed Bottle Labeling Machine Dua - Driving Type Belt Synchronous 0



Sleeve applicator---Feature:



1.Higher electrical configurations

2.Operate independently or as part of your existing production.

3.Fast and efficient reloading system, saving time and being safety. two feed tables enhance highly efficiency.

4.Adjustable high speed electric eyes lock label precisely

5.Standardized center mould achieve the goal of changing different products quickly.

6.Synchronous separating bottle design keep bottles from swaying in delivery process.

7.Exclusive adjustable knife unit cut label neatly and reduce cutting flaw vastly,and also the knife can be  replaced easily .

8.n order to keep the whole line's function corresponding,the speed of conveyor , separate bottle unit and  carrying bottle unit can be changed synchronous by a button.

9.Advanced operation system coordinated with touch panel and assistant buttons are more convenient  and  humanized.

10.We adopt electrical configurations from Japan,French,Germany,such as Panasonic brand include PLC,  frequency changer,servo driver/motor,Schneider brand include air switch,currency protector,  electromagnetic contactor and Sweden hot air blower.All these components ensure our product high  stability and veracity.





Sleeve applicator---Application



The sleeve applicator can work on many kinds of bottles ,such as round bottle,square bottle, flat bottle, curve bottle, cup shape bottle etc., We can also design machine according to your demand, each machine can wotk with many kinds of label,which depend on the size of newel.





Sleeve applicator---Technical Parameter



Model TB-250
Main machine size 2700mm(L)*1100mm(W)*2150mm(H)
Machine body&Weight Stainless Steel/Painted Steel, 600KGS(around)
Power AC 3-PHASE 220V/380V
Main machine power 2KW
Production speed 15000BPH
Bottle diameter range Φ20mm-Φ150mm
Knife plate range Φ20mm-Φ50mm.Φ50mm-Φ95mm.Φ95-Φ130mm
Label height 25mm-400mm
Label material PVC/PET
Label thickness 0.03mm-0.13mm
paper tube inner diameter 5''-10'' is available
Shrink tunnel Heat or steam shrink tunnel is optional





High Speed Bottle Labeling Machine Dua - Driving Type Belt Synchronous 1
