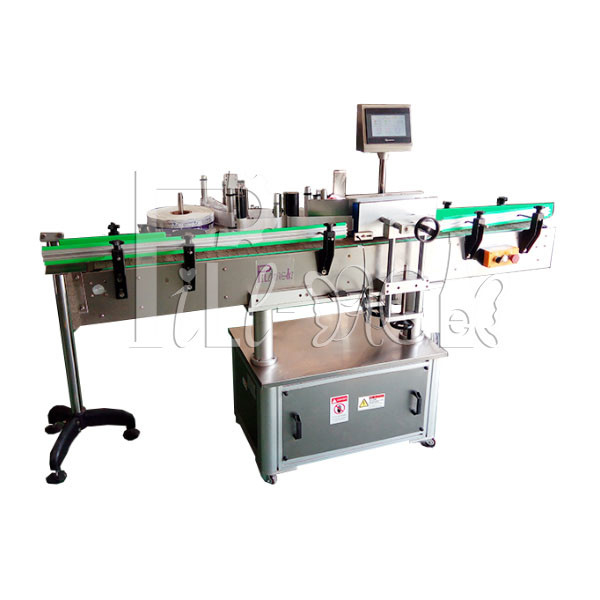

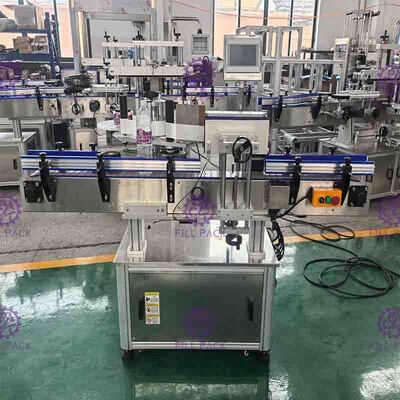

220V Adhesive Round Bottle Labeling Machine Single Side 3000 BPH

Product Description

Round bottle Single side adhesive labeling machine

● Basic uses:

This machine is applied for labeling round bottle or boxes, such as the single-side labeling of cosmetic round bottle or packaging boxes. It increases productivity and improves the quality of packaging.

● Applicable scope:

＊Applicable label:Self-adhesive labels, adhesive film, electronic monitoring code, bar code and so on.

＊Applicable product:Products required for labeling on the lateral plane or on the arc

＊Application industries:Widely used in food, toys, daily chemical industry, electronics, beverages, pharmaceuticals, metals, plastics, printing and other industries

＊Application examples: Labeling of flat shampoo bottle, disinfectant shampoo bottles, mineral water bottles, MP4/MP3 box and so on.

●Functional characteristics:

＊Configure automatic bottle separating device, sparing the distance automatically before bottle guiding, guarantee the stability of the bottle guiding, transmission and labeling.

＊No bottle no labeling, automatic correction for no tag and automatic test function for label, and avoid waste of labels and labeling missing.

＊Strong and healthy, made of stainless steel and high quality alloy, meet the standard with GMP production specifications, reasonable structure, elegant

＊Have the function of fault alarm, production counting, power saving, advise for setting parameter ,protection on wrong protection setting, easy production management.

＊Optional features and components: ① hot printing/ink jet printing capability ② automatic feeding function ③automatic winding function (combined with products considered) ④ increased labeling device ⑤ other features (according to customer's requirements).

●Operation manual:

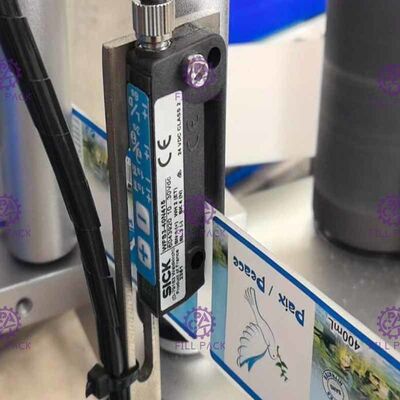

＊Core work principle: When sensor detects the products through, it returns the signal to the label control systems, then control system controls control motor to send out the labels and affixed on the product in the right position. Products flow through the label pressing device, label is covered on the products, then completes the labeling action.

＊Operation procedure: Put the product (on line)-> product delivery (device achieves automatically)-> labeling (device achieves automatically)-> collection of labeling products.

●Technology data:

Following technical parameters are for standard model, other special requirements and capabilities can be tailored.

＊Labeling accuracy: ±1mm (Do not contain the tolerance of product and label itself).

＊Labeling speed: 3000 bottles per hour(Associated with the product).

＊Dimension of applicable product: Width≥20mm,length≥20mm,20≤height≤350mm.

＊Dimension of applicable label: 15≤width≤150mm,length≥10mm.

＊Dimension of whole machine: 2000*1300*1600mm(length × width × height).

＊Applicable power: 220V 50/60HZ;

＊Weight of machine: 195Kg.

Detailed photos:

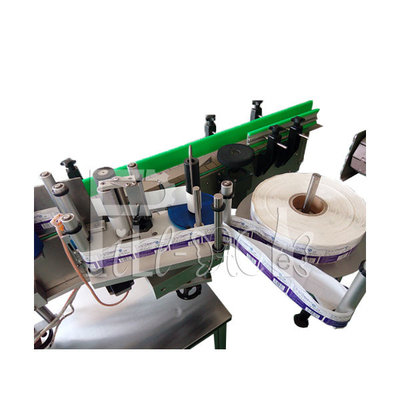

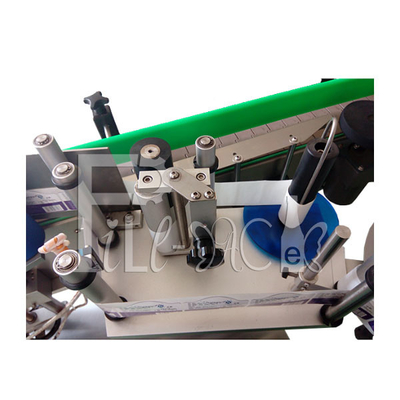

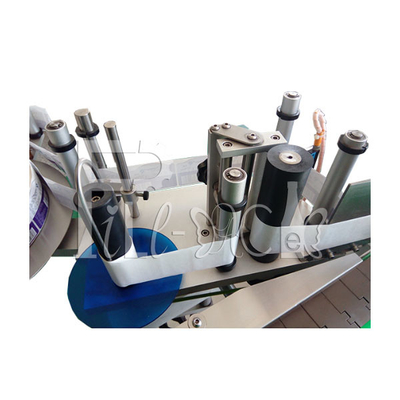

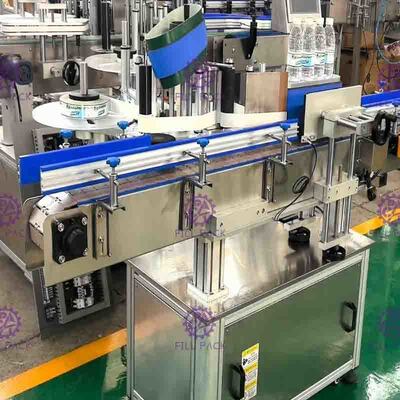

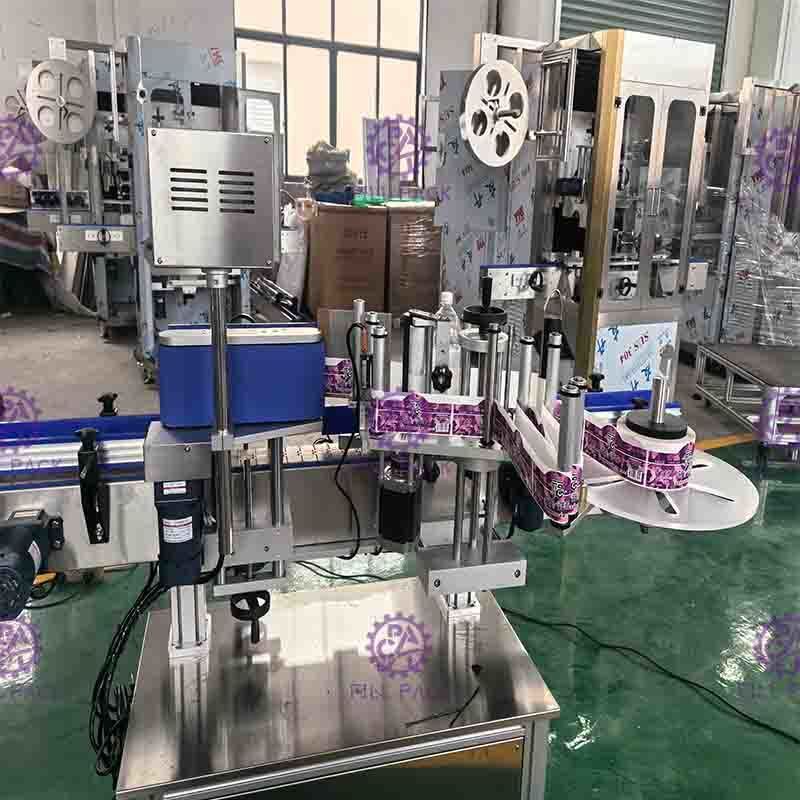

Back of the machine	Tray for label roll and label delivery system
Stepper motor	Date coding device

●Electrical Components:
