Single Head Shrink Sleeve Labeling Machine 150BPM Full Automatic For PVC Bottle
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | TB-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SETS |
|---|---|
| Price: | 11044 |
| Packaging Details: | Wooden Case Packing |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Labeling Speed: | 150BPM | Applicable Label Length: | 30mm-250mm |
|---|---|---|---|
| Thickness Of Label: | 0.03~0.13mm | Applicable Diameter Of Bottle Body: | 28mm ~120mm |
| Function: | Sleeve Labeling | Applicable Inner Diameter Of Label Rod: | 5''~10'' |
| Power: | 3KW | Dimension(L*W*H): | 2000*850*2000mm |
| Weight: | 200 KG | Input Voltage: | 220V AC |
| High Light: | Single Head Shrink Sleeve Labeling Machine,PVC Bottle Shrink Sleeve Labeling Machine,150BPM Shrink Sleeve Labeling Machine |
||
Product Description

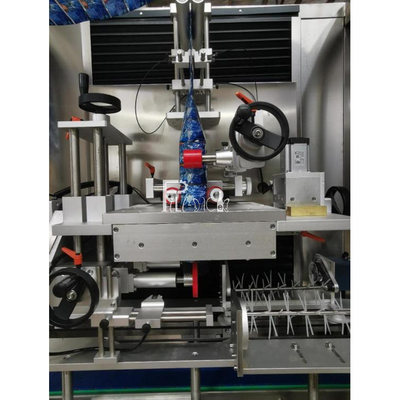

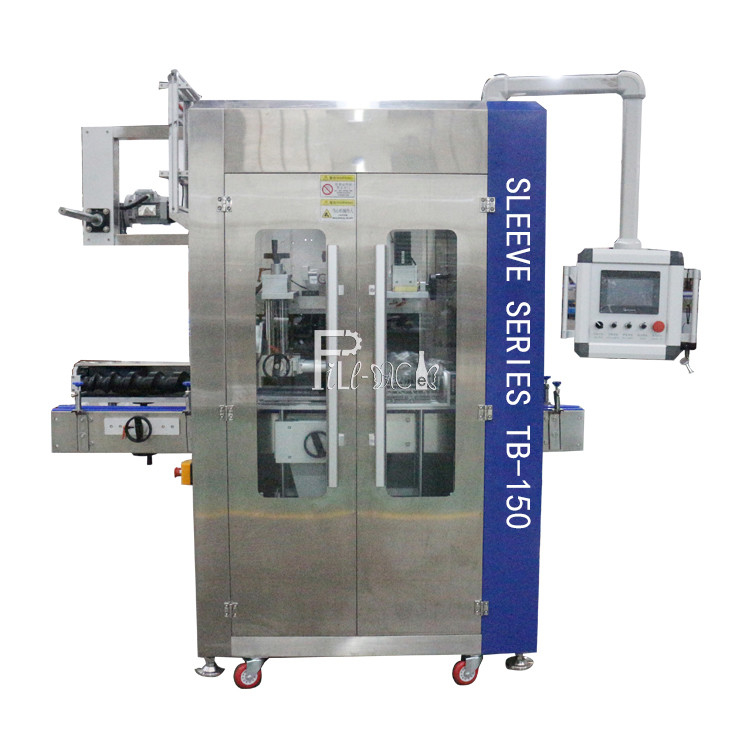

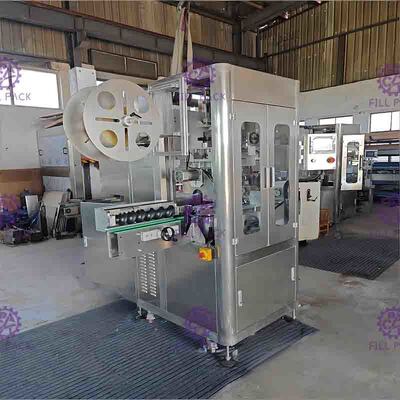

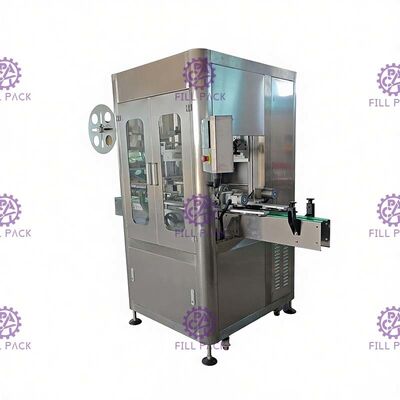

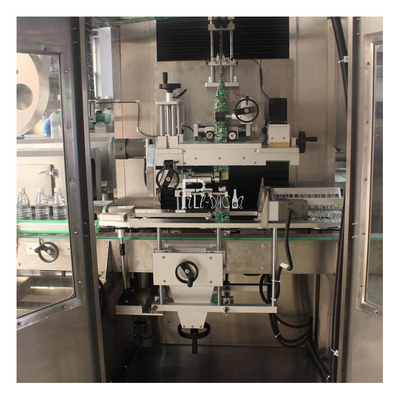

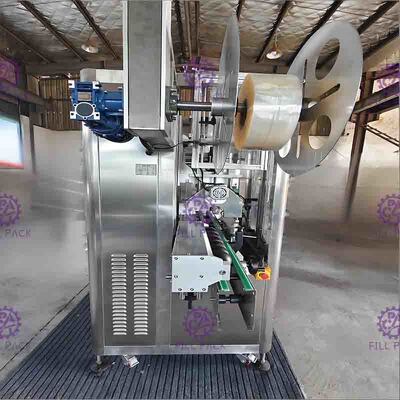

Full Automatic Single Head Shrink Sleeve Labeling Machine / Equipment for PVC Bottle With Steam Shrink Tunnel
General:
Whole machine frame is made out of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning. The special cutting system: adopting the whist and con-volute technology. The label cutting is flat, no burr.The label location set assures the sleeving veracity. Adopting model group design, module controlled; Achieve veracity and fast sleeving.With the good quality touching operation screen, achieving operation by finger, easy and shortcut. It is a high automatic packingmachine. Just one person handles, easy operation. Easy to change packing material, the change over of the mould can be easily done by hand without any tools.Within the flat width limitation, can be used to package objects in different shape, no matter round orsquare, can be applied on glass or plastic bottles. Higher safely and stability for operation and saving time of manpower.
Specifications:
1)TB-150 Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It
can be used stand alone or integrated in-line and matching filling equipment speeds.
can be used stand alone or integrated in-line and matching filling equipment speeds.
2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.

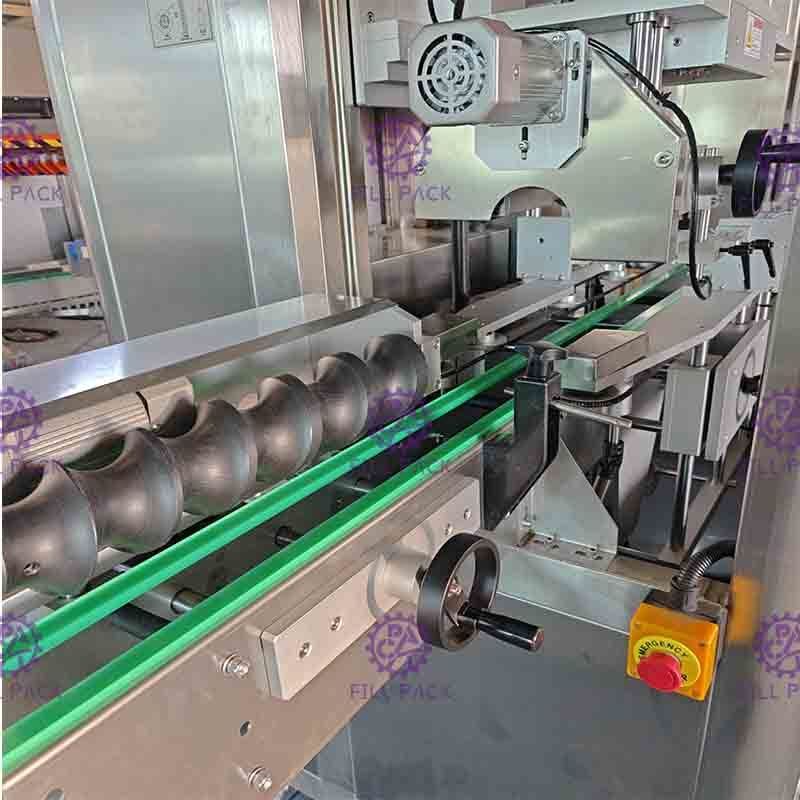

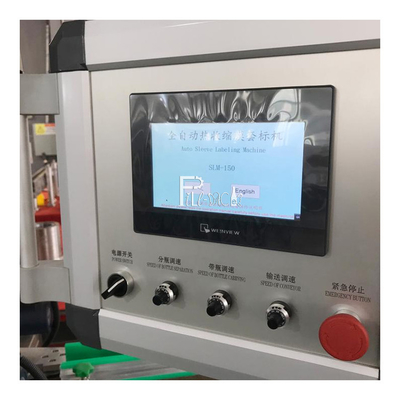

3) Unique cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other similar products.

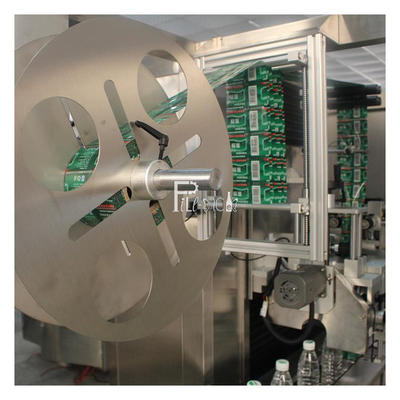

4)Single label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.

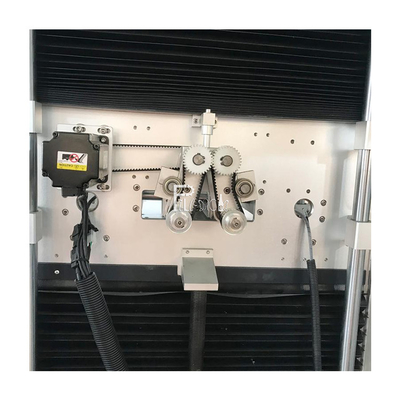

5) The newly designed cutter servo motor which speed is high ,action is exact,the cut is in order and the shrinking is
beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
beautiful.This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm.
Parameters
|
No.
|
Item
|
Technical data
|
|
|
1
|
Input Power
|
3.0KW
|
|
|
2
|
Component power
|
Label Infeeding Servo Motor
|
400W
|
|
3
|
Label Infeeding Servo Drive
|
400W
|
|
|
4
|
Cutting Head Servo Motor
|
400W
|
|
|
5
|
Input Voltage
|
220 VAC
|
|
|
6
|
Capacity(production speed)
|
150BPM(On the base label length :55mm)
|
|
|
7
|
Dimension of Host Machine (mm)
|
L2100 × W850 × H2000
|
|
|
8
|
Applicable Diameter Container (mm)
|
φ28 mm ~ φ120 mm
|
|
|
9
|
Applicable Label Length (mm)
|
30~250 mm
|
|
|
10
|
Applicable Thickness Label (mm)
|
0.03~0.13 mm
|
|
|
11
|
Applicable Inner Diameter of label rod
|
5''~10''
|
|
Function
|
Name
|
Function
|
|
Material offering group
|
Offer motor for label carrier
|
|
Shelf group
|
Install volume label device
|
|
Platform elevating group
|
Adjust the height of host automatically according to the bottle shapes
|
|
Brush-off group
|
Brushing the cut-ted label on the bottle
|
|
Cutter group
|
Cutting off the labels which are sent to Center guide pin
|
|
Cutter controlling group
|
Control the cutter operational site
|
|
The back drive group
|
Offer motor for label of center guide pin
|
|
The front drive adjusting group
|
Grasping the center guide pin
|
|
Frame of Electric eye group
|
Adjust the best cutting position of the label
|
|
Electric eye of bottle lighting detecting group
|
Adjust the sleeve labeling position of bottle body
|
|
Hairbrush group
|
Brush the label which cannot sleeve properly to the right place
|
|

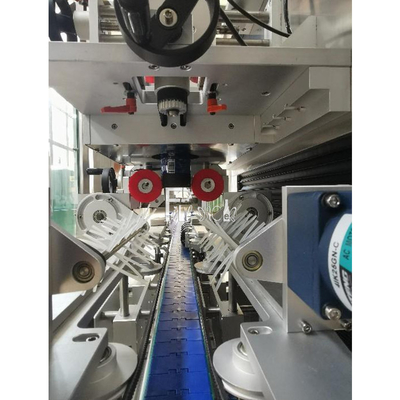

Bottle positioning group
|
Make bottle stable, control sleeve labeling position
|
|
Center guide pin group
|
Make volume label distracted for transfer and cut easily
|
|
Bottle entering screw bolts
|
Separate bottle on equal distance in order to sleeve labeling accurately
|
Spare Parts
|
Item
|
Brand
|
Origin
|
|
PLC
|
Panasonic
|
Japan
|
|
High-speed Optical Fiber Sensor
|
SUNX
|
Japan
|
|
Photoelectric Sensor
|
SUNX
|
Japan
|
|
Photoelectric Sensor
|
SUNX
|
Japan
|
|
Photoelectric Sensor
|
SUNX
|
Japan
|
|
Label Infeeding Servo Motor 400W
|
Schneider
|
France
|
|
Label Infeeding Servo Drive 400W
|
Schneider
|
France
|
|
Cutting Head Servo Motor 400W
|
Schneider
|
France
|
|
Cutting Head Servo Drive 400W
|
Schneider
|
France
|
|
Bottle Separation Frequency Converter
|
Delta
|
Taiwan
|
|
Label Feeder Frequency Converter
|
Delta
|
|
|
Conveyor Frequency Converter
|
Delta
|
|
|
Bottle Conveyor Frequency Converter
|
Delta
|
|
|
AC Contactor
|
Schneider
|
|
|
Circuit breaker
|
Schneider
|
|
|
Intermediate Relay
|
Schneider
|
|
Details:
Auxiliary machine

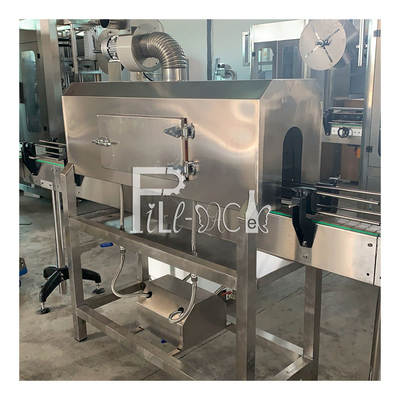

Heat Steam Shrink tunnel
Made of SUS304 stainless steel. The equipment is with steam controller for steam blow wastage. Remained steam be brought out to plant through wind motor. Steam press is adjustable. Shrink effect is perfect and will not hurt the label.
Parameters:
Power:3PH,380V, 50HZ 0.25kw
Dimension: 1500*700*2000mm(SB-1500)
Pressure: 0.4-0.7Mpa
Steam Generator
Cupboard style design, make the machine small and compact in structure, it is ideal choice for saving room. Design volume below 30L, within domestic checking-avoiding area. Inner set up water-steam separator, it will avoid the problem which steam with a lot of water, improve steam quality. Thermal tube connect with oven and flange, it will be easier for changing, maintenance. One step electric control, automatic oven control, only need to connect water and power, and then press start button, the whole system will work by itself. Several safe working lock. The machine is set up with safe value, pressure protector to avoid explosion. Also the machine is set up with low water protector, when there is no water supply, the oven will stop to work. Leakage protector will help to save people, the power will be cut off when there is emergency. Electricity is clean than carbon.
Application:
Want to Know more details about this product
