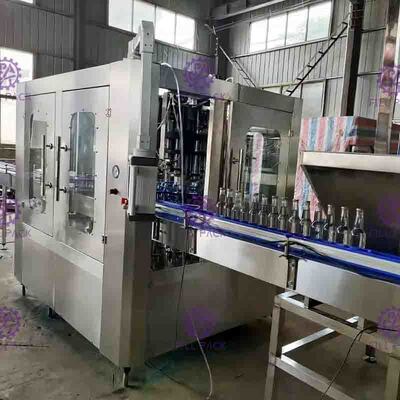

Carbonated Drink Beverage PET Plastic Glass 3 In 1 Monobloc Bottle Filling Machine / Equipment / Line / Plant / System
Product Details:
Place of Origin: | China,JiangSu,Zhangjiagang |
Brand Name: | FillPack |
Certification: | CE & ISO & TUV & SGS |
Model Number: | DCGFG 12-12-4 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 20000-50000USD |
Packaging Details: | Wooden Case Package |
Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 20 sets/month |
Detail Information |
|||
Dimension(L*W*H): | 2250*1650*2250 | Weight: | 2500KG |
---|---|---|---|
Power: | 4.4KW | Capacity: | 2000~3000BPH |
Highlight: | soda making machine,drink production line |
Product Description

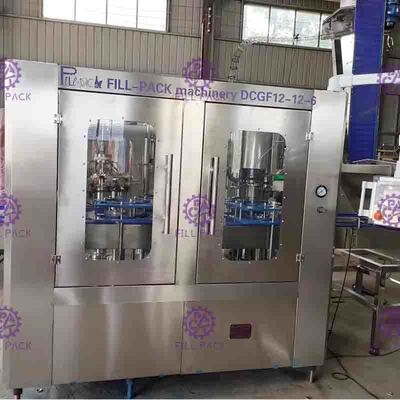

Description of DCGFG12-12-4 Crown Cap Glass Bottle Filling machine
>>>Working process:
★The glass bottle rises slowly with the lifting mechanism. After close contact with the sealing washer under the isobaric filling valve, the fork installed above the isobaric cylinder is activated. At this time, the gas inside the bottle begins to be filled. When the pressure inside the bottle and the pressure inside the cylinder reach the same level, the carbon in the cylinder. After filling the sour beverage, the upper fork is closed and the filling stops. Under the action of pressure difference, the filling valve automatically closes and the filling operation stops. However, before the bottle mouth is separated from the filling valve mouth, a device will release the gas at the bottle mouth to prevent the carbonated beverage from ejecting and after releasing the gas, the whole process will be completed. The isobaric filling process is completed.

>>>Our machine have so many characteristics:
★1, Accurate level control: the level in the filling cylinder is determined by the probe level meter, and the intake of the intake pipe is controlled automatically by the variable signal to ensure that the level in the cylinder is consistent throughout the filling process.
★2, Accurate speed regulation: Advanced motor frequency modulation control technology is used to make the speed regulation of the machine accurate and stable in start-up and production, and to display the filling speed digitally. The whole machine is controlled by PC program with high degree of automation.
★2, Accurate speed regulation: Advanced motor frequency modulation control technology is used to make the speed regulation of the machine accurate and stable in start-up and production, and to display the filling speed digitally. The whole machine is controlled by PC program with high degree of automation.

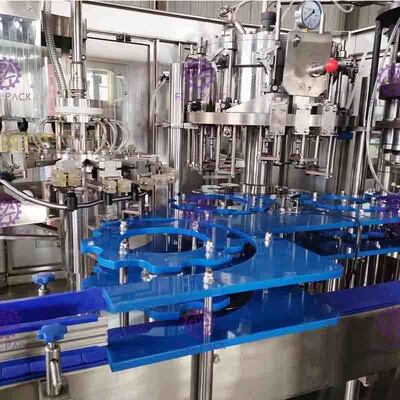

Bottle Filling
1)The rotate plate is made of SUS 304, large flat toothed bearing.

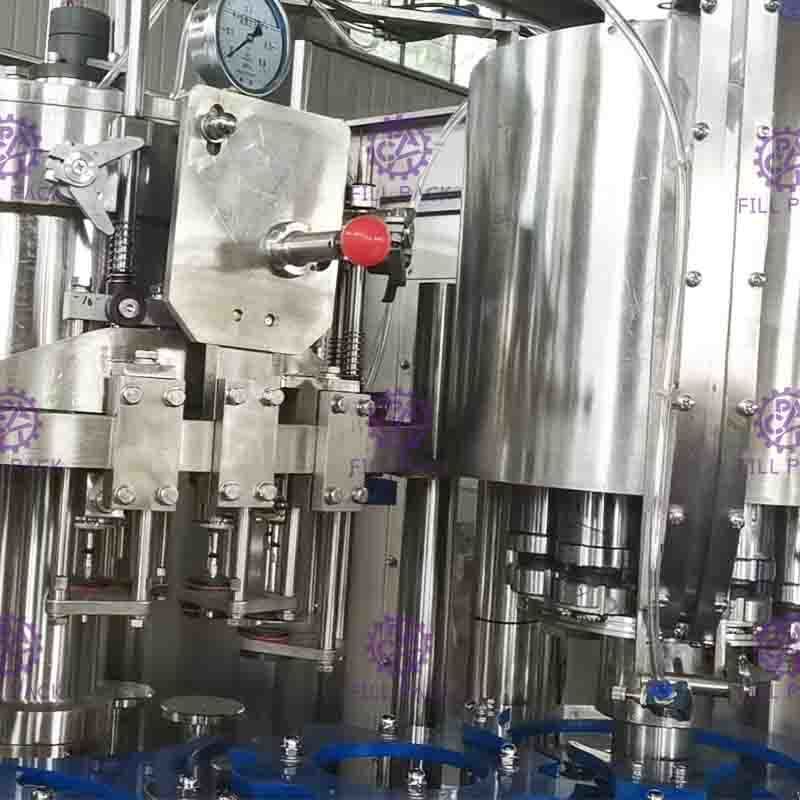

2)The filling system has a CIP circulation system to wash the pipeline. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively. 3)This filling system has an automatic temperature control system. 4)The filling valve opens and begins filling whenthe pressure is balance between inside bottle and liquid tank, the filling valve move up and leave the bottleneck when it finishes filling. 5)The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
1)The rotate plate is made of SUS 304, large flat toothed bearing.
2)The filling system has a CIP circulation system to wash the pipeline. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively. 3)This filling system has an automatic temperature control system. 4)The filling valve opens and begins filling whenthe pressure is balance between inside bottle and liquid tank, the filling valve move up and leave the bottleneck when it finishes filling. 5)The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
Teachnical parameters of DCGFG12-12-4
|
||||||
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
Filling pressure
|
≤0.4MPa
|
|||||
Glass bottle specification
|
(Bottle diameter)50-100mm (Height)170-320mm
|
|||||
Suitable cap shape
|
Glass or other material screw cap
|
|||||
Filling temperature
|
0℃—5℃
|
|||||
Cleaning pressure
|
0.2-0.25MPa
|
|||||
|
||||||
Our family of glass bottle carbonated filling machine
There's always one suitable for you
|
||||||
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension
(mm)
|
|
DCGFG12-12-4
|
12/12/4
|
1000-2000
|
4.4
|
2800
|
|
|
DCGFG18-18-6
|
18/18/6
|
3000-4000
|
5
|
3800
|
2360*1770*2700
|
|
DCGFG24-24-8
|
24/24/8
|
6000-7000
|
6
|
5000
|
3200*1900*2300
|
|
DCGFG32-32-10
|
32/32/10
|
8000-10000
|
8
|
6000
|
4300*2000*2300
|
|
DCGFG40-40-12
|
40/40/12
|
10000-12000
|
10
|
9000
|
4500*3500*2300
|
|
|
||||||
If you need plastic bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
|
