PET Plastic Glass 3 In 1 Monobloc Soda Drink Beverage Water Bottle Filling Machine / Equipment / Line / Plant / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | DCGF50-50-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-50000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Dimension(L*W*H): | 5500*3500*2500mm | Weight: | 10000KG |
|---|---|---|---|
| Power: | 11KW | Packaging Type: | PET Plastic Bottle |
| Capacity: | 16000-20000BPH | Suitable Bottle Size: | 0.3-2L PET Bottle |
| High Light: | soft drink making machine,drink production line |
||
Product Description
Description of DCGF50-50-15 Plastic Bottle Filling machine
>>>Working process:
★1, The whole capping mechanism is cylindrical. It rotates 360 degrees according to the center of the spindle. The bottle is automatically capped, and then enters the capping mechanism. The capping head operates along a specific guideway and moves up and down in a straight line.

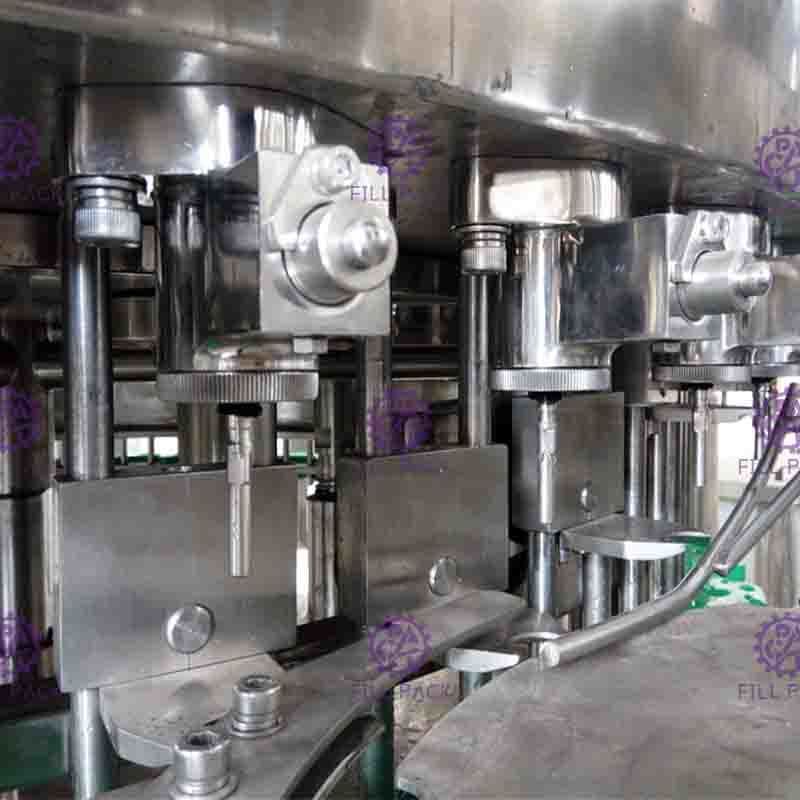

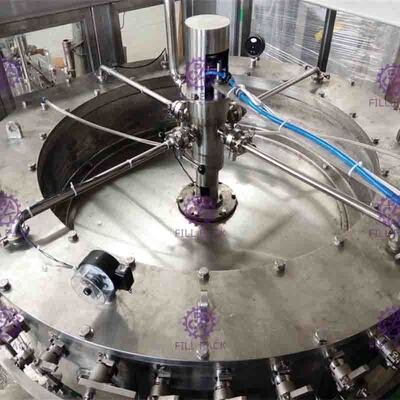

★2, Then it enters the balanced pressure filling mechanism. The bottle rises slowly with the lifting mechanism. After close contact with the sealing washer under the balance filling valve, the fork installed above the isobaric cylinder is activated. After filling the sour beverage, the upper fork is closed and the filling stops.
|
Teachnical parameters of DCGF50-50-15
|
||||||
|
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
|
Filling pressure
|
≤0.4MPa
|
|||||
|
PET bottle specification
|
(Bottle diameter)50-115mm (Height)160-320mm
|
|||||
|
Suitable cap shape
|
Plastic or other material screw cap
|
|||||
|
Filling temperature
|
0℃—5℃
|
|||||
|
|
||||||
|
Our family of plastic bottle carbonated filling machine
There's always one suitable for you
|
||||||
|
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension(mm)
|
|
|
DCGF12-12-4
|
12/12/4
|
2000-3000
|
4.4
|
2500
|
2250*1650*2250
|
|
|
DCGF18-18-6
|
18/18/6
|
3000-5000
|
5.2
|
3500
|
2600*1965*2250
|
|
|
DCGF24-24-8
|
24/24/8
|
5000-7000
|
6.2
|
4500
|
2980*2200*2250
|
|
|
DCGF32-32-10
|
32/32/10
|
7000-10000
|
6.2
|
6000
|
3880*2200*2250
|
|
|
DCGF40-40-12
|
40/40/12
|
10000-15000
|
7.5
|
7200
|
4000*2250*2500
|
|
|
DCGF50-50-15
|
50/50/15
|
16000-20000
|
11
|
10000
|
5500*2250*2500
|
|
|
DCGF60-60-15
|
60/60/15
|
20000-24000
|
15
|
11500
|
6500*5500*2550
|
|
|
|
||||||
|
If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
|
||||||

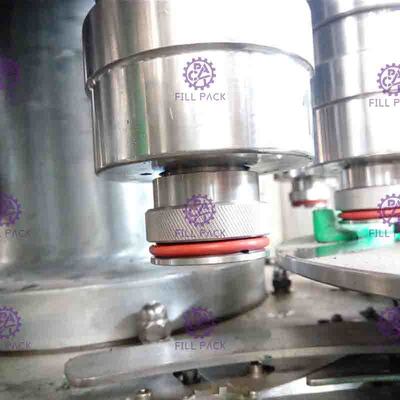

Capping heads.
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2％.
Air Conveyor.
Air conveyor is fixed on the floor, with fan installed on the top.
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS 304 /316.
Rack made by high quality carbon steel welded.
