Automatic Energy Juice Oil Beverage Pet / Plastic Bottle Blow Production / Producing Machine / Equipment / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | FP-1000-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Max. Bottle Volume: | 10L(100ml To 10000ml) | Output: | 2000-2400BPH |
|---|---|---|---|
| Cavitiy: | 2 Cavities | Dimension: | 4263*2150*2200mm |
| Power: | 78kw | Weight: | 5550Kg |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Voltage: | 380V/220V 3 Phase 50HZ / 60HZ / Customized | Blow Moulding Type: | Stretch Blow Moulding |
| Automatic: | Yes | Application: | PET Bottle |
| Condition: | New | ||
| High Light: | Bottle Injection Machine,Bottle Making Machine |
||
Product Description

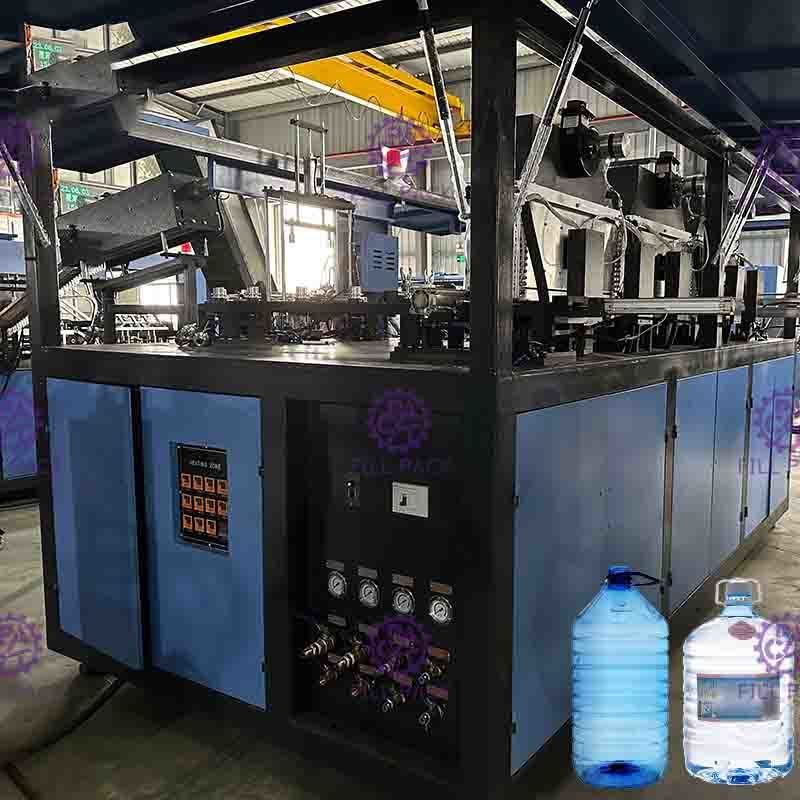

Automatic 2 Cavity PET bottle blow molding machine
>>> Product Introduction:
FP-1000-2 type Automatic blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 10000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles.etc.
>>> Product Features:
1. Adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo;
2, Use infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;
3, Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;
4, Each machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;
5, All the action drive by the cylinder, do not use pumps, with no pollution, low noise;
1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
>>>Technical Paramters:
|
Molding
|
Clamping force
|
kg
|
/
|
|
Blowing machine size
|
mm
|
4263*2150*2200
|
|
|
Open stroke
|
mm
|
450mm
|
|
|
Mold thickness
|
mm
|
200mm-360mm
|
|
|
Canity pitch
|
mm
|
/
|
|
|
Number of Cavity
|
Cavity
|
2
|
|
|
Container
|
Max.container volume
|
Itr
|
10
|
|
Max. neck diameter
|
mm
|
65
|
|
|
Max. bottle diameter
|
mm
|
220
|
|
|
Max.container height
|
mm
|
430mm
|
|
|
Theoretical output
|
bph
|
800-1200
|
|
|
|
Total power
|
kw
|
72/78kw
|
|
Power voltage
|
V
|
380v/3Phase/50HZ
|
|
|
Items
|
Components
|
Model
|
|
1
|
Pneumatic components/cylinder
|
AIRTAC/TAIWAN
|
|
2
|
Flipping cylinder
|
FESTO/Germany
|
|
3
|
High pressure air blowing valve
|
PARK/USA
|
|
4
|
Low pressure working valve
|
PMC/Korea
|
|
5
|
High pressure muffler
|
ATOMUFFLER/USA
|
|
6
|
oil-water separator/Finger cylinder
|
AIRTAC/TAIWAN
|
|
7
|
Photoelectric switch
|
AUTONICS/Korea
|
|
8
|
Power switch/Circuit breaker/Small relay/air switch
|
SCHNIDER/Germany
|
|
10
|
PLC/TOUCH SCREEN
|
MITSUBISHI / Japan
|
