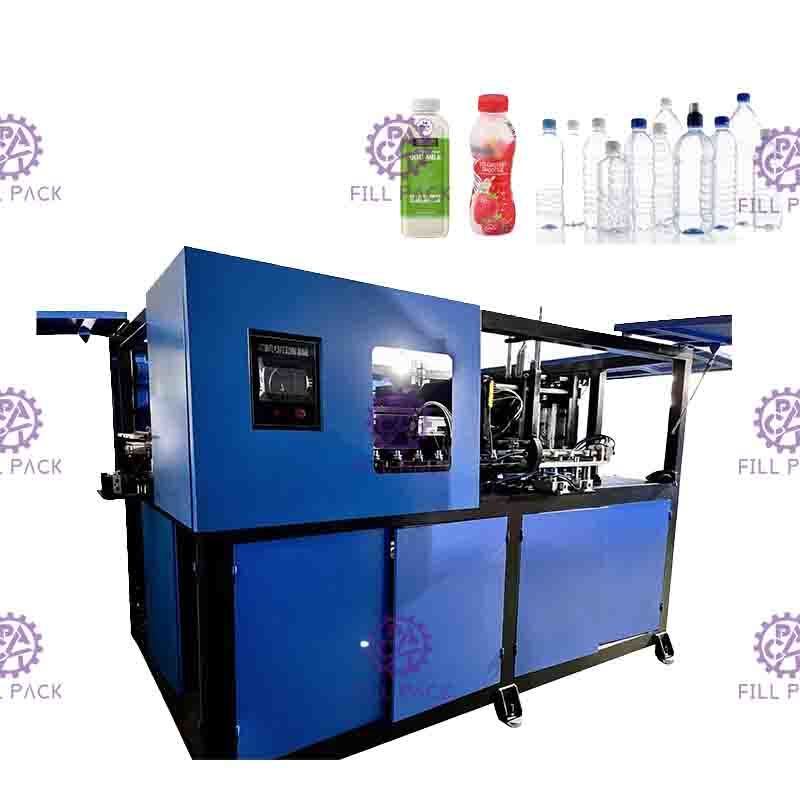

1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen

1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen

    • 1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen
    • 1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen
    • 1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen
    • 1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen
  • 1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen

    Product Details:

    Place of Origin: ZhangJiangGang,JiangSu,China
    Brand Name: FILL PACK
    Certification: CE. ISO9001
    Model Number: FP-4000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set/pcs
    Price: USD $39,000-41,000/Set
    Packaging Details: the drink bottle blowing machine is packed by wooden case.
    Delivery Time: within 30 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5 Set/Sets per month
    Contact Now
    Detailed Product Description
    Cavity: 4 Cavities Application: PET Plastic
    Output: 4000bph Key Word: Drink Bottle Blowing Machine
    Model: FP-4000 Automatic: YES
    Volume: 0.1-2L Condition: New
    Voltage: 380V Or By Order Power(W): 49KW
    Dimension(L*W*H): 1908*1858*1920mm Weight: 3600kg
    Certification: CE ISO SGS TUV Warranty: 1 Year For Spare Parts
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Quality: High For Drink Bottle Blowing Machine

    1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen



    Product Description
    drink bottle blowing machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.



    Technique Parameter of drink bottle blowing machine:

    Main part:
    Pneumatic part Valve SMC
    Cylinder
    Electricpart PLC LG
    Operating system LG
    Relay OMRON
    Infrared thermometer America raytek
    Note All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
    Main parameter:
    Model FP-4000
    Productivity Depend on bottle design 3200-4000 PCS/H
    Product type Body diameter 20mm-100mm
    Height 50mm-350mm
    Neck diameter 15mm-38mm
    Mold Cavity 4 cavities
    Mold thick 240mm
    Mold 500*500mm
    Main machine power Electrical source power 380v 3Phase /220v 3Phase
    50/60HZ
    Rated Power 49kw
    Really use power 14kw
    Size L*W*H 1900*1860*1930mm
    Weight 3600kg
    Auxiliary equipment(preform unscrambler) L*W*H 2000*950*2480mm
    Weight 250kg
    Resin available   PET





    Features of main body:
    1). Stable performance with advanced PLC.
    2). Automatic preform conveyer to save human cost.
    3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
    4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity in variable.
    5). High safeties with security automatic-locking device in each mechanica laction, whichwill make the production into a perfect safe environment, in case of the breakdown in certain procedure.
    6). Introduce the FESTO air cylinder to avoid contamination and noise.
    7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
    8). Strong clamping force with high pressure and double crank links to lock the mould.
    9). Two ways of operating: automatic and manual.
    10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
    11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
    12). Ideal cooling system make the finished bottles without any flaws.
    13). Easy for you to install,test and start up.
    14). Low rejection rate: less than 0.2 percent.

    Detailed Images

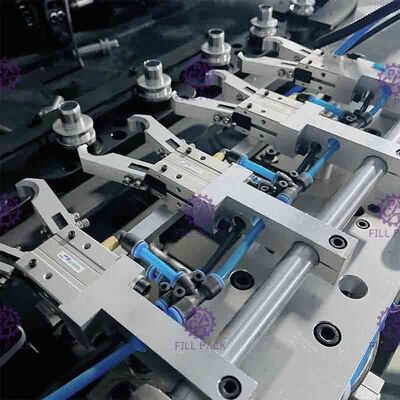

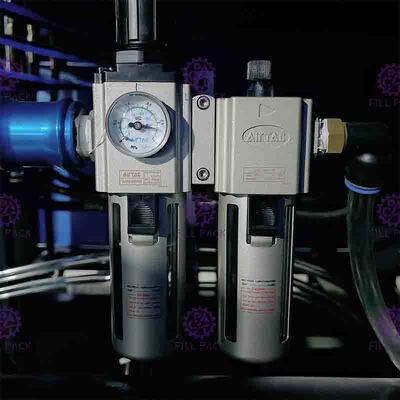

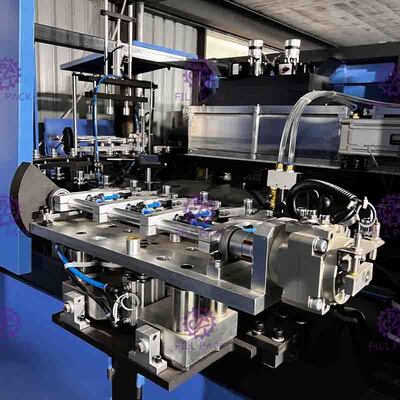

    1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen

    1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen

    1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen1000ML Fully Automatic drink bottle blowing machine with Adjustable Touch Screen

    Packing & Delivery

    1. the drink bottle blowing machine is packed by wooden case.
    2. The delivery date of drink bottle blowing machine is within 30 days after payment.

    Our Service



    1.installation&commissioning

    After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed



    2.Training

    We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.



    3.Quality assurance

    The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
